<6. PARAMETER DESCRIPTION>
6-27
IM 01E30D01-01EN
NOTE
For more details regarding the setting of
hysteresis width, read the description of setting
parameter for F30: Auto Range Hys and F31:
Bi Direction Hys.
[F30: Auto Range Hys] Setting of automatic range-
switching hysteresis width
Automatic switching takes place for multiple range
switching when 100% of the range is exceeded,
and this parameter allows a hysteresis width to be
set for this switching.
Read Figure 6.4.1.
[F31: Bi Direction Hys] Setting of forward/reverse
owmeasurementhysteresiswidth
This parameter sets the hysteresis for forward/
reverseowratemeasurementasa%valueofthe
minimumowspan.
Read Figure 6.4.1.
(6) Menu G: Alarm Setting items
Menu G principally contains setting items relevant
to alarms. (Read Section 6.5.)
[G10: Low Alarm] Low alarm setting
This parameter sets the low limit (L) alarm value,
and this is done using a % value of the maximum
span.
● A setting value of -105% indicates that the
alarm is disabled.
[G11: High Alarm] High alarm setting
This parameter sets the high limit (H) alarm value,
and this is done using a % value of the maximum
span.
● A setting value of 105% indicates that the alarm
is disabled.

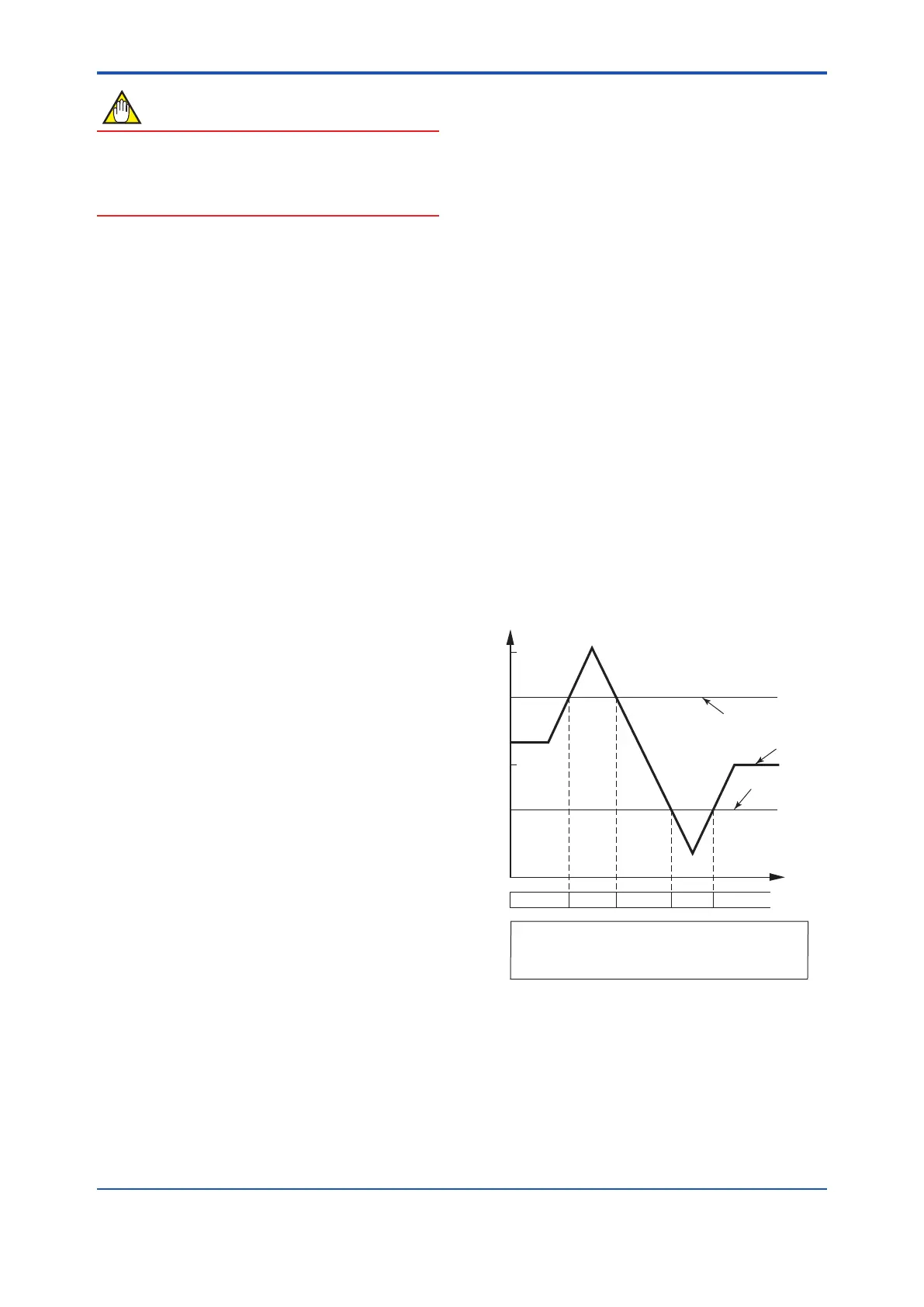

Output Example 1
The high alarm (H) is set to 80% or more; the low
alarm (L) is set to 30% or less; and the H/L alarm
hysteresis width is set to 0%.
Settings are:
G10: Low Alarm=30%
G11: High Alarm=80%
G12:H/LAlarmHys=0%
0
Select “H/L Alarm(O)” for F10: DO Function
Select “Closed (On) Act” for F11: DO Active Mode
Select “Yes” for G28: Alm-H/L
DO Open Closed Open OpenClosed
High Alarm
Instantaneous flow rate
Low Alarm
30
50
80
To Next Page
