User Preferences 6 - 27

Example 1

To decode one Code 128 bar code anywhere in the image (even when bar codes of other types are in view), as

in Figure 6-1, program the expression as follows:

The expression in decimal is (formatted for readability):

1 C 2 0 8 ;

To program the expression via scanning parameters the sequence is (spaces are for readability):

[MultiCode-Expression] 01 C 02 00 08 ; [End Of Message]

To program the expression via host command (SSI/SNAPI) the sequence is:

0x01 0x43 0x02 0x00 0x08 0x3b

For more information on this method, see Programming a Multicode Expression via SSI Command on page

6-31.

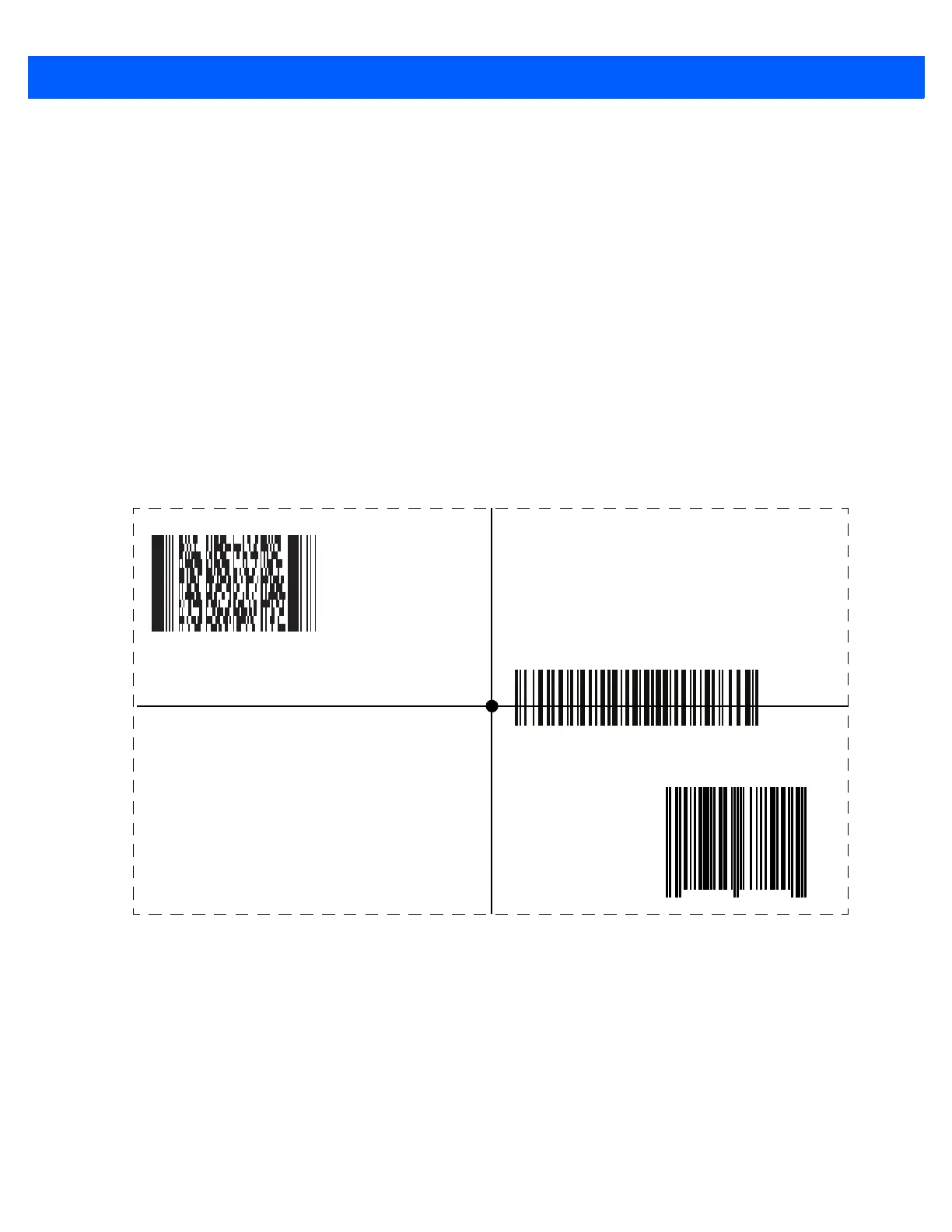

Figure 6-1

Multicode Expression Example 1

50%

100%

50%

100%

PDF417 Code

Code 128 Code

UPC-A Code
