User Preferences 6 - 29

Example 2b

In Figure 6-2, if the bottom PDF417 bar code must transmit first, reverse the sequence of the two bar codes:

The expression in decimal is (formatted for readability):

2 C 2 0 15 R 4 0 50 100 100 ; C 2 0 8 R 4 0 0 100 50 ;

To program the expression via scanning parameters the sequence is:

[MultiCode-Expression] 02 C 02 00 0F R 04 00 32 64 64 ; C 02 00 08 R 04 00 00 64 32 ; [End Of Message]

To program the expression via host command (SSI/SNAPI) the sequence is:

0x02 0x43 0x02 0x00 0x0F 0x52 0x04 0x00 0x32 0x64 0x64 0x3B 0x43 0x02 0x00 0x08 0x52 0x04 0x00

0x00 0x64 0x32 0x3B

For more information on this method, see Programming a Multicode Expression via SSI Command on page

6-31.

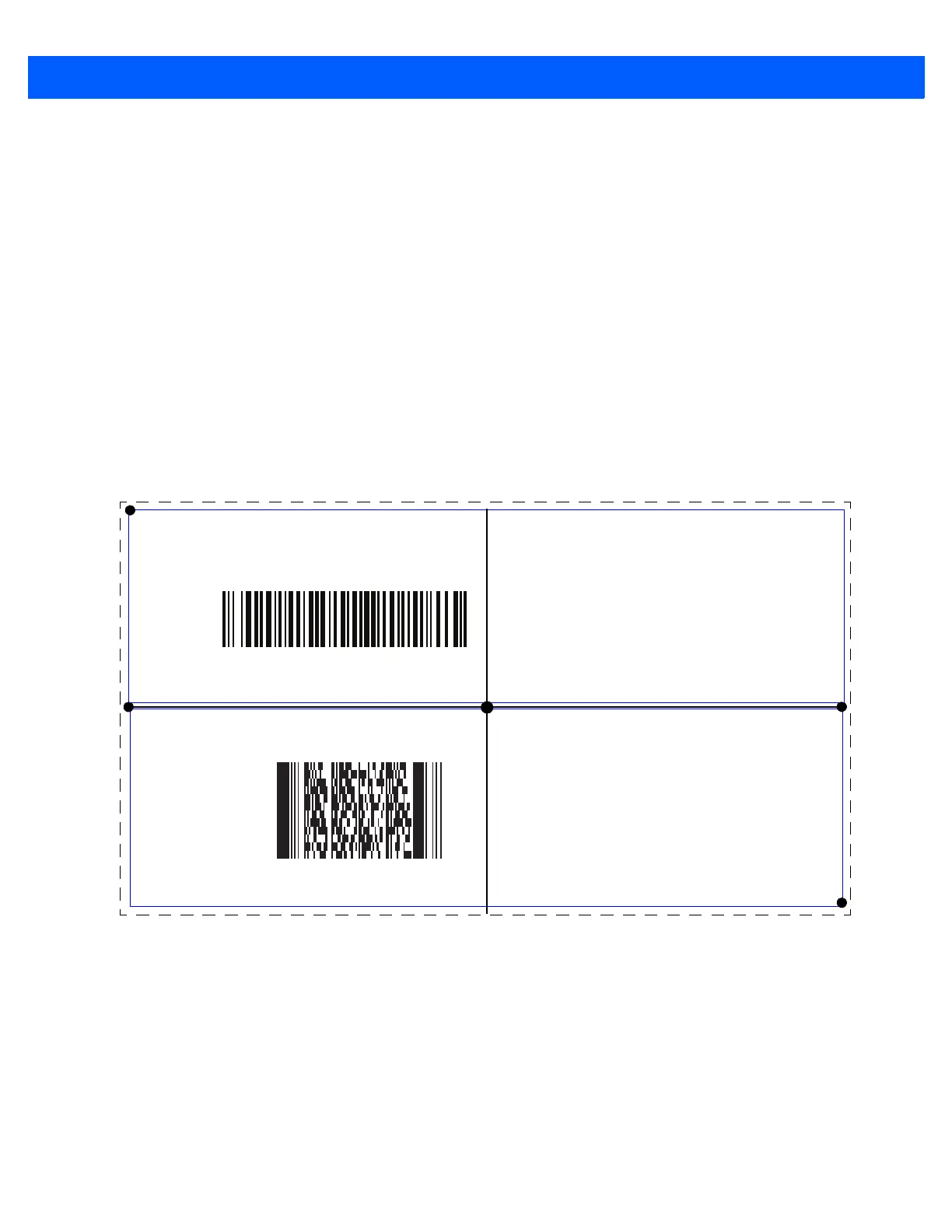

Figure 6-2

Multicode Expression Example 2

PDF417 Code

(0,0)

Code 128 Code

(0,50)

(160,100)

(100,50)

50%

100%

50%

100%
