4 - 30 TC75 Integrator Guide

5. Touch IP Address.

6. In the Enter IP Address dialog box, enter the IP address of host computer to send data to.

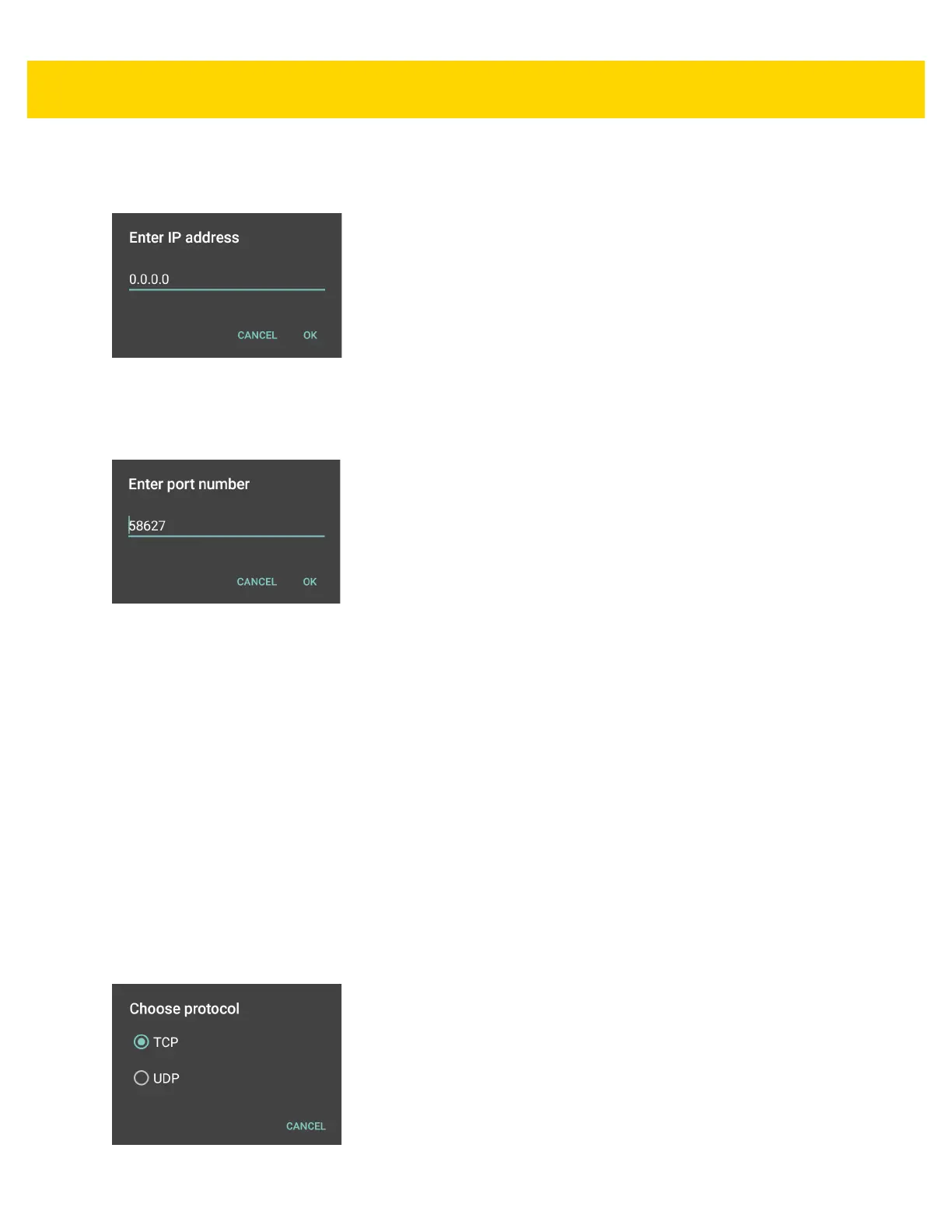

Figure 4-15 IP Address Entry

7. Touch Port.

8. In the Enter port number dialog box, enter same port number selected for IPWedge computer application.

Figure 4-16 Port Number Entry

9. Configure Advanced data formatting and Basic data formatting Plug-in if any required modification to be

done to captured data before sending to remote computer.

Using IP Output without IPWedge

IP Output Plug-in can be used to send captured data from DataWedge to a remote device or host computer without

using IPWedge. At the data receiving end, the host computer or mobile device should have an application, that

listens to TCP or UDP data coming from a configured port and IP address in the IP Output plug-in. To enable IP

Output to send captured data to a remote computer:

1. In IP Output, touch Enabled.

A check appears in the checkbox.

2. Ensure Remote Wedge option is disabled.

3. Touch Protocol.

4. In the Choose protocol dialog box, touch the same protocol selected in the client application. (TCP is the

default).

Figure 4-17 Protocol Selection
