5-Slot Charge Only Cradle
The 5-Slot Charge Only Cradle:
• Provides 5 VDC power for operating the TC75.
• Simultaneously charges up to five TC75s and up to four TC75s and on 4-Slot Battery Charger using the
Battery Charger Adapter. See the TC75 Integrator Guide for information on installing the 4-Slot Battery
Charger onto the cradle.
• Consists of a cradle base and cups that can be configured for various charging requirements.

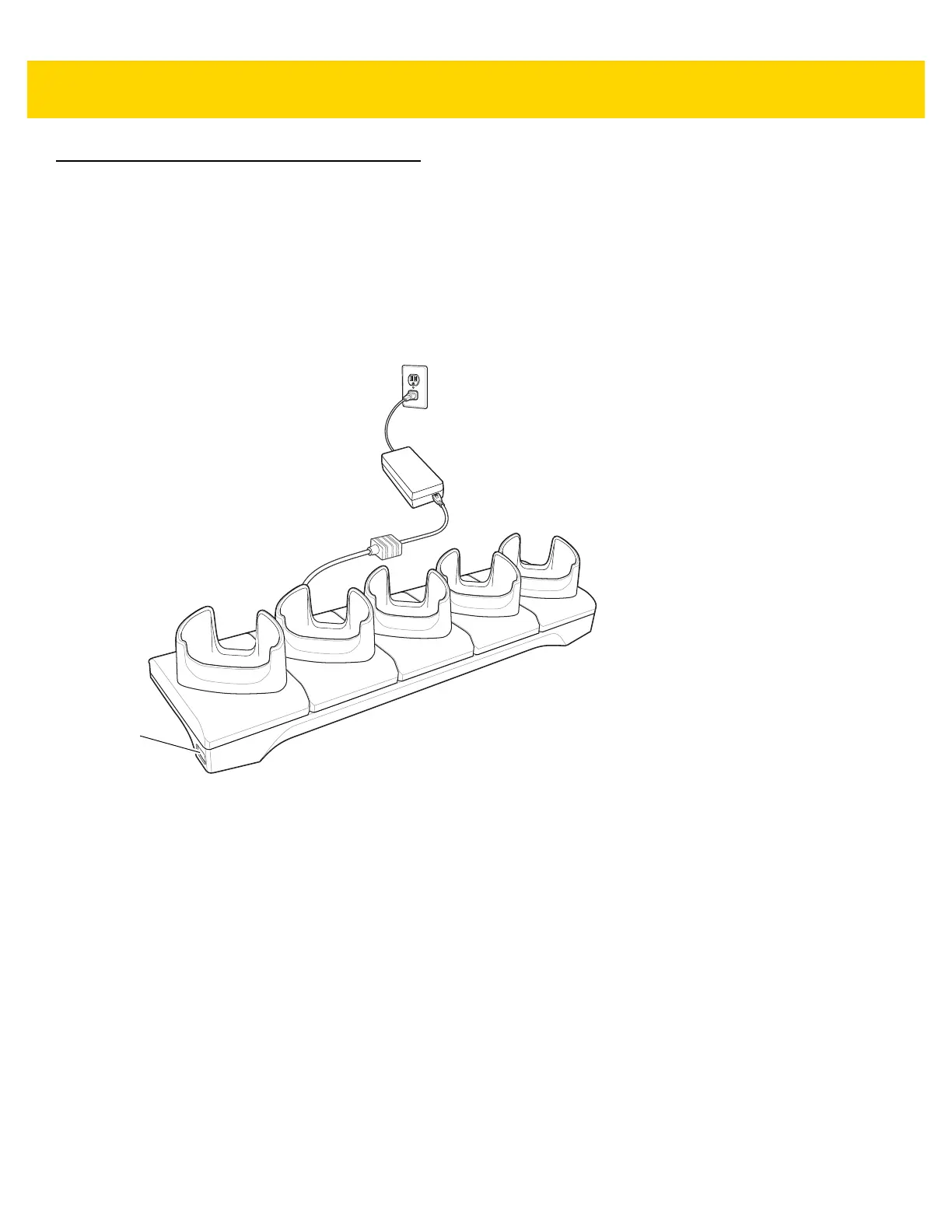

Figure 2-13 5-Slot Charge Only Cradle
1 Power LED – Lights green when power is applied to cradle.
