Zebra TC75 Integrator Guide

4 - 34 TC75 Integrator Guide
Defining Criteria
1. Touch Criteria.

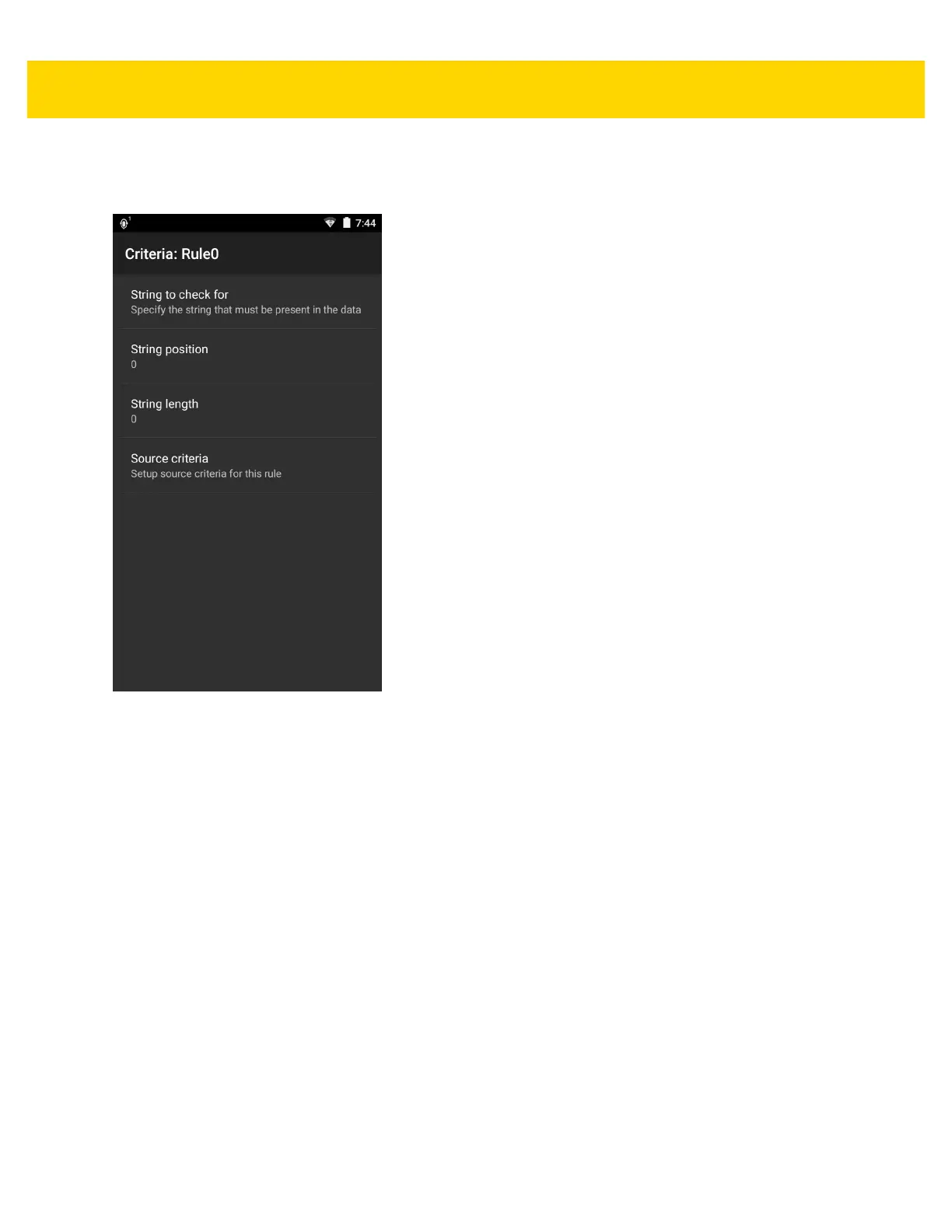

Figure 4-22 Criteria Screen
2. Touch String to check for option to specify the string that must be present in the data.
3. In the Enter the string to check for dialog box, enter the string.
4. Touch OK.
5. Touch String position option to specify the position of the string specified in the String to check for option.
The ADF rule is only applied if the specific string in String to check for is found at the specified String
position location (zero for the start of the string).
6. Touch the + or - to change the value.
7. Touch OK.
8. Touch String length option to specify a length for the received data. The ADF rule only applies to the bar code
data with that specified length.
9. Touch the + or - to change the value.
10. Touch OK.
11. Touch Source criteria option to associate an input device to an ADF rule. The ADF rule only applies to data
received from associated input devices.
12. Touch Barcode input or MSR input. Options vary depending upon the device configuration.
13. Touch the Source enabled checkbox to accept data from this source.

Zebra TC75 Specifications

General

Display Size	4.7 inches
Resolution	1280 x 720 pixels
Operating System	Android
Battery Capacity	4620 mAh
Cellular Connectivity	4G LTE
GPS	Yes
Humidity	5% to 95% non-condensing
Camera	8 MP rear camera
Wireless Connectivity	Wi-Fi 802.11 a/b/g/n
Ruggedness	MIL-STD-810G
Operating Temperature	-20° C to 50° C
Barcode Scanner	1D/2D imager
RAM	1 GB
Storage	8 GB
Expandable Storage	up to 32 GB microSD
Dimensions	6.3 x 3.3 x 1.1 inches
