Zebra TC75 Integrator Guide

Accessories 2 - 45
8. Insert the battery, bottom first, into the battery compartment in the back of the device.
9. Rotate the top of the battery into the battery compartment.
10. Press the battery down into the battery compartment until the battery release latches snap into place.

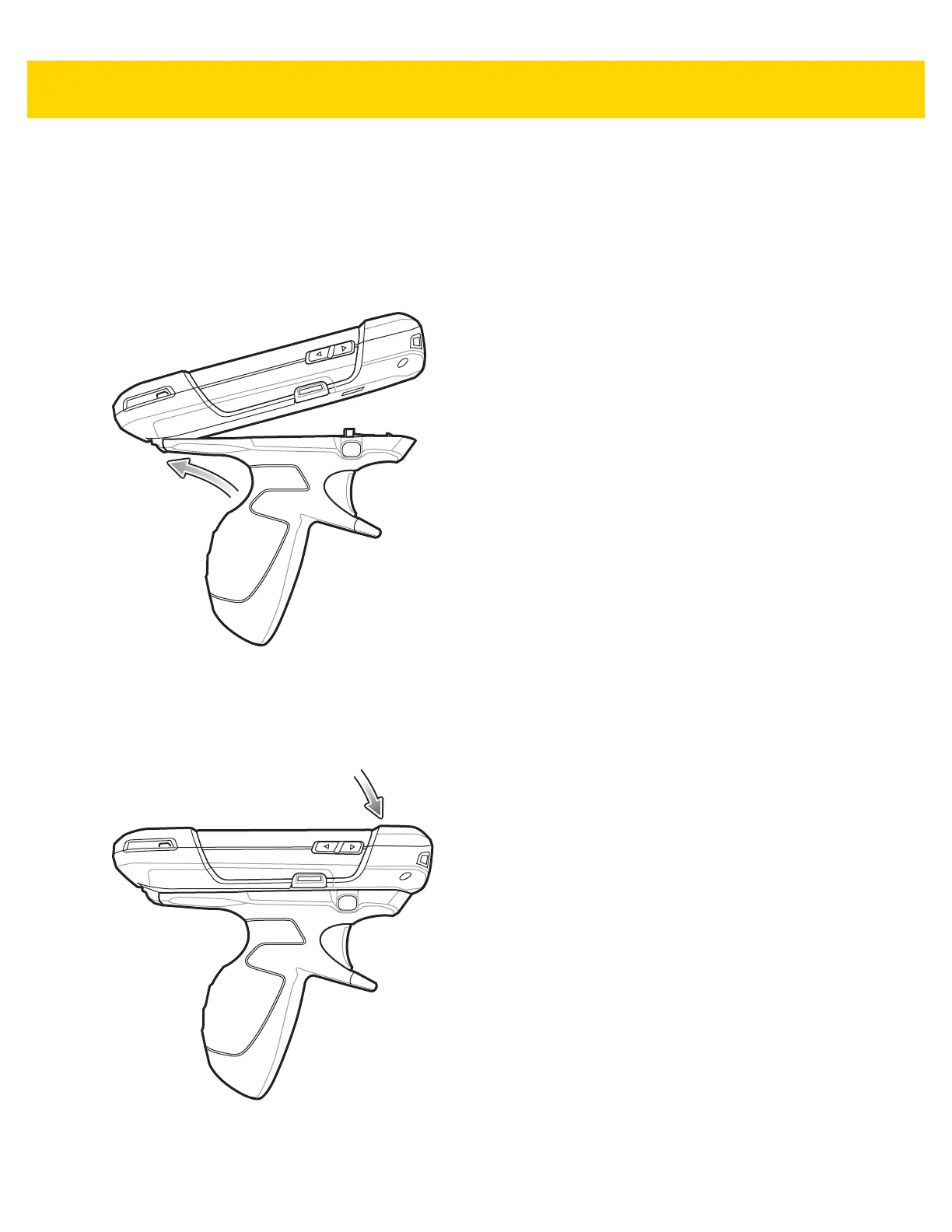

Inserting the Device into the Trigger Handle
1. Align the back of the Trigger handle with the Trigger Mounting Plate.
Figure 2-54 Connect Device to Trigger Handle
2. Press the two release latches.
3. Rotate the device down and press down until it snaps into place.
Figure 2-55 Rotate Device onto Trigger Handle

Zebra TC75 Specifications

General

Display Size	4.7 inches
Resolution	1280 x 720 pixels
Operating System	Android
Battery Capacity	4620 mAh
Cellular Connectivity	4G LTE
GPS	Yes
Humidity	5% to 95% non-condensing
Camera	8 MP rear camera
Wireless Connectivity	Wi-Fi 802.11 a/b/g/n
Ruggedness	MIL-STD-810G
Operating Temperature	-20° C to 50° C
Barcode Scanner	1D/2D imager
RAM	1 GB
Storage	8 GB
Expandable Storage	up to 32 GB microSD
Dimensions	6.3 x 3.3 x 1.1 inches
