Laser workow

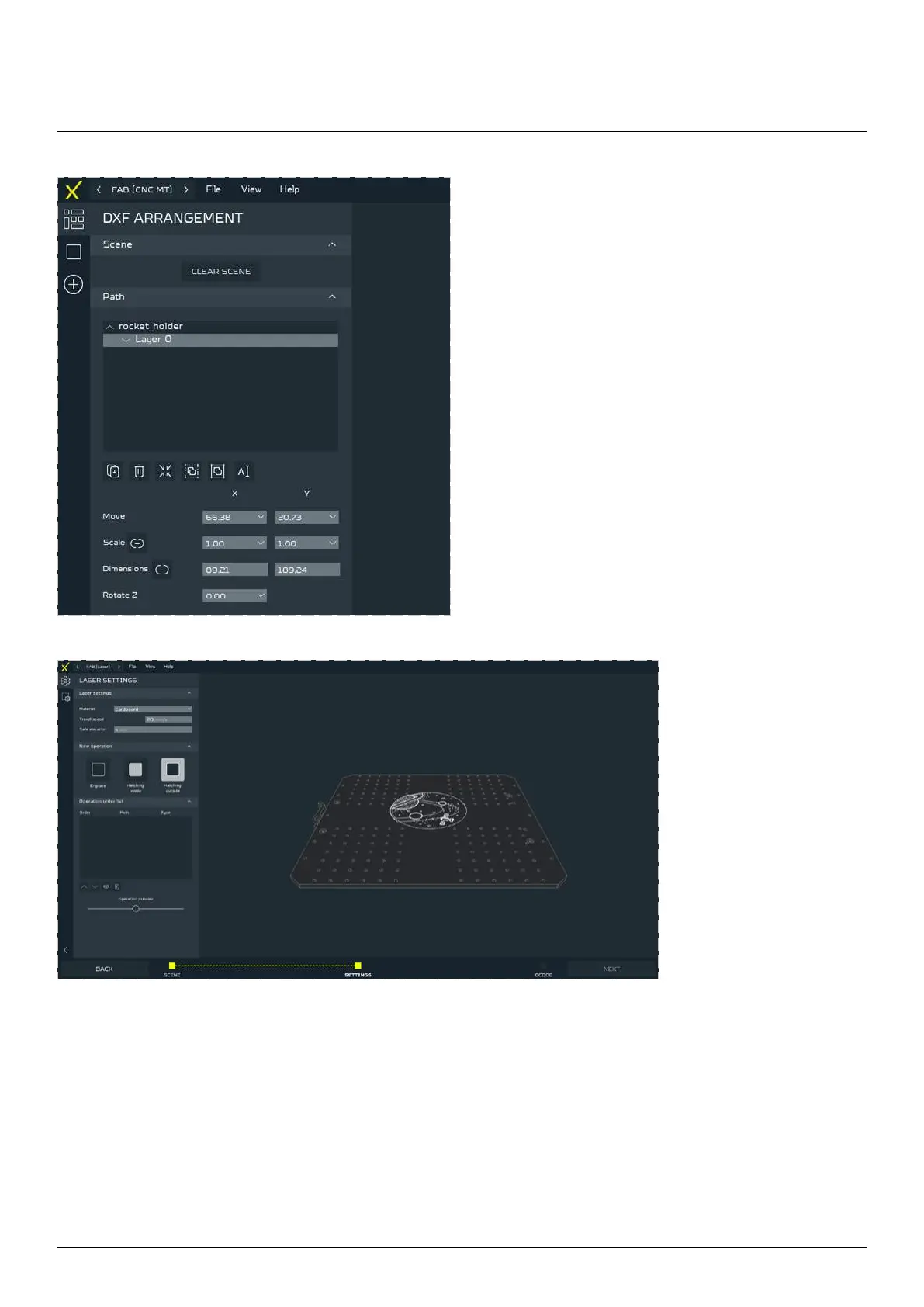

To be able to freely move, scale and rotate the

model on the table preview go to DXF ARRANGE-

MENT menu.

Click NEXT when ready.

You will be automatical-

ly moved to the SET-

TINGS tab.
