15.5 Thick Paste le staing (with calibration)
Enter the ‘NEW JOB’.    
and press ‘NEXT’ button.
Go to the ‘CALIBRATE’ option.
Press the ‘SET’ button. Press the ‘HOME X’ and
‘HOME Y’ buttons. Warning!
Do not press the ‘HOME Z’
button.
Go back to the ‘MOVE’ page.
Use the ‘MOVE X, Y, Z’ buttons
to maneuver the Thick Paste

front left corner of the table.
Return to the ‘SET’ page. 

zero points.
Go back to the main menu and
choose ‘START’. Your machine will
start working.
NEW JOB MAINTENANCE
X Y Z
MOVE ZMOVE X Y
BACK SET
X Y Z
MOVE ZMOVE X Y
BACK SET
X Y Z
MOVE ZMOVE X Y
BACK SET
ZX
Y
HOME X HOME ZHOME Y
SET Y = 0 SET Z = 0
BACK MOVE
SET X = 0
CALIBRATE SETTINGSCHOOSE
FILE
STARTBACK
CALIBRATE SETTINGSCHOOSE
FILE
STARTBACK
ZX
Y
HOME X HOME ZHOME Y
SET Y = 0 SET Z = 0
BACK MOVE
SET X = 0
ZX
Y
HOME X HOME ZHOME Y
SET Y = 0 SET Z = 0
BACK MOVE
SET X = 0

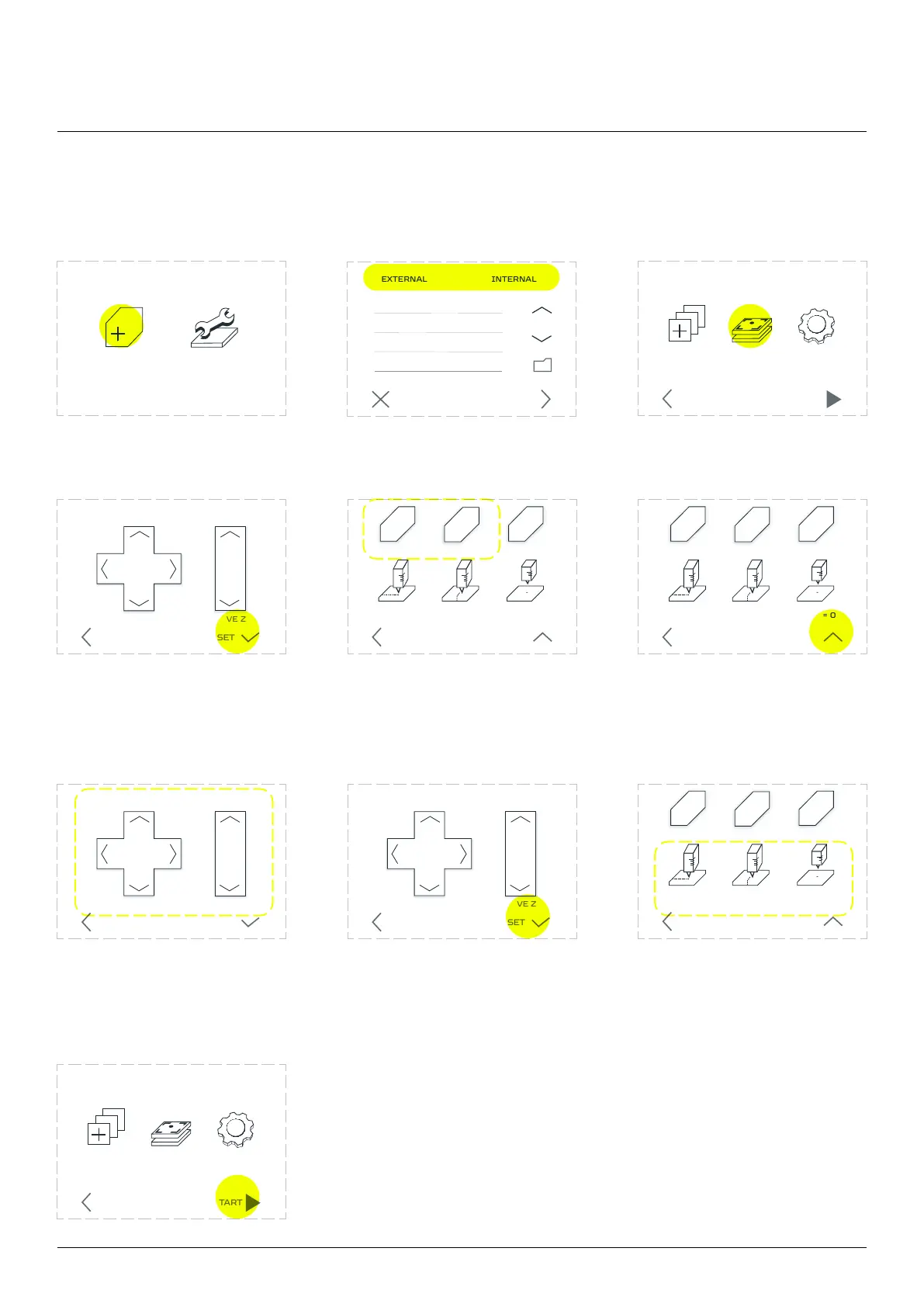

Thick paste extruding workow
CANCEL NEXT
EXTERNAL
INTERNAL
example.gcode

 

 

 

 

 

Zmorph FAB Specifications

General

Build Volume	250 x 235 x 165 mm
Nozzle Diameter	0.4 mm
Filament Diameter	1.75 mm
Print Speed	up to 100 mm/s
Software	Voxelizer
Dimensions	530 x 555 x 480 mm
Layer Resolution	0.05 - 0.3 mm
Connectivity	USB, Ethernet
Supported Materials	PLA, ABS, PETG, TPU, Nylon
Power Supply	24V DC
Print Technology	Fused Filament Fabrication (FFF)
Extruder Type	Single Extruder
Display	5-inch capacitive touchscreen
