Maintenance
Sma Toolhead change process
Next steps depend on which method and toolhead will be used:
Single Extruder Toolhead 1.75
 Connect the LEFT cable to the LEFT frame
socket.
 Connect the extruder ‘A’ cable to the ‘A’
plug and the ‘B’ cable to the ‘B’ plug on
the X carriage.
Laser Toolhead
 Connect the LEFT cable to the LEFT frame
socket and RIGHT cable to the RIGHT
frame socket.
Thick Paste Extruder Toolhead
 Connect the LEFT cable to the LEFT
frame socket.
 Connect the extruder ‘A’ cable to X car-
riage ‘A’ plug.
Dual Extruder Toolhead
 Connect the LEFT cable to the LEFT frame
socket and RIGHT cable to the RIGHT
frame socket.
 Connect the extruder ‘A’ cable to the ‘A’
plug and the ‘B’ cable to the ‘B’ plug on
the X carriage.
CNC Milling Toolhead
 Connect the LEFT cable to the LEFT frame
socket.
 Connect the extruder ‘A’ cable to X car-
riage ‘A’ plug.
After connecting all extruder
cables choose ‘OK’.
Zmorph Fab will recognize
the toolhead automatically.
If toolhead is correct choose
‘YES’.
If machine doesn’t recognize
the toolhead choose ‘NO’ and
it will lead you to Change tool
menu, where you can choose
your toolhead manually.

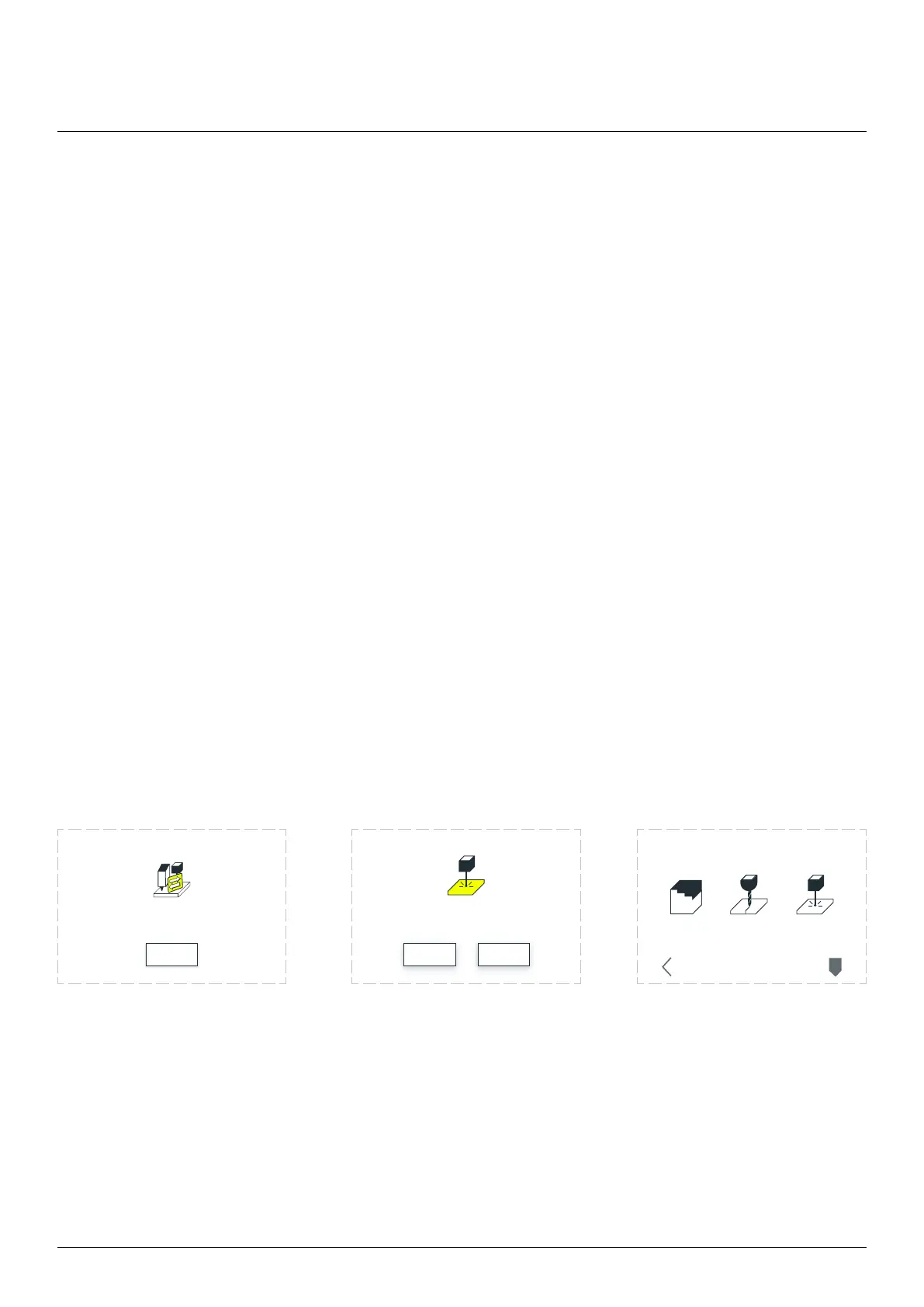

Toolhead change process staed.
When you mount the toolhead press OK
OK
Toolhead was detected properly?
LASER
NO YES
3D PRINT
CHANGE TOOLHEAD
CNC LASER
PARK
TOOL
BACK
