Chapter 12 NAT
EMG2306-R10A User’s Guide
104
Use this screen to view and configure your EMG2306-R10A’s trigger port settings. Click
Configuration > Network > NAT to open the Port Trigger screen.

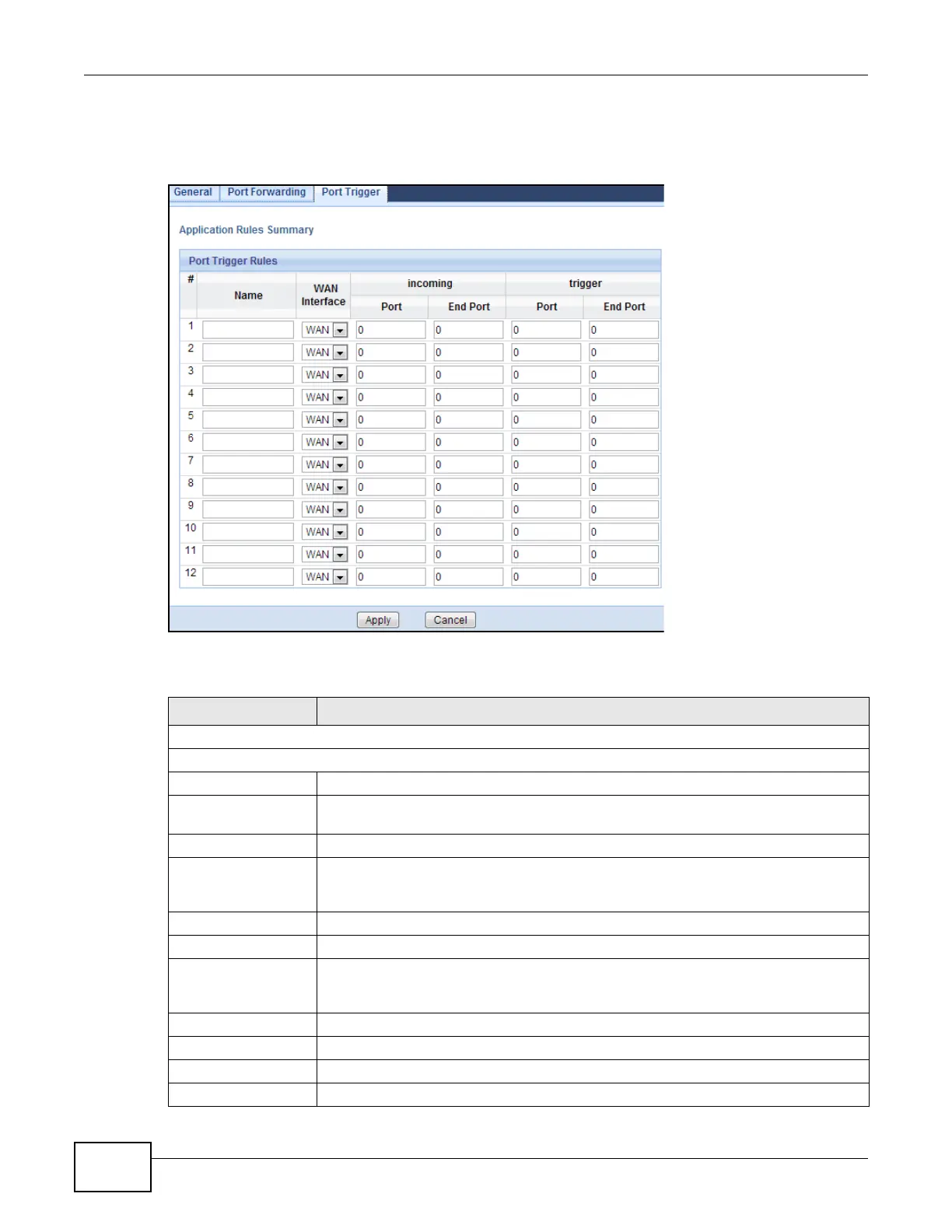

Figure 56 Configuration > Network > NAT > Port Trigger
The following table describes the labels in this screen.
Table 43 Configuration > Network > NAT > Port Trigger
LABEL DESCRIPTION
Application Rules Summary
Port Trigger Rules
# This is the rule index number (read-only).
Name Type a unique name (up to 15 characters) for identification purposes. All characters
are permitted - including spaces.
WAN Interface This is the WAN interface of the rule.
Incoming Incoming is a port (or a range of ports) that a server on the WAN uses when it sends
out a particular service. The EMG2306-R10A forwards the traffic with this port (or
range of ports) to the client computer on the LAN that requested the service.
Port Type a port number or the starting port number in a range of port numbers.
End Port Type a port number or the ending port number in a range of port numbers.
Trigger The trigger port is a port (or a range of ports) that causes (or triggers) the EMG2306-
R10A to record the IP address of the LAN computer that sent the traffic to a server on
the WAN.
Port Type a port number or the starting port number in a range of port numbers.
End Port Type a port number or the ending port number in a range of port numbers.
Apply Click Apply to save your changes back to the EMG2306-R10A.
Cancel Click Cancel to begin configuring this screen afresh.
