Chapter 14 Static Route
EMG2306-R10A User’s Guide
108
The following table describes the labels in this screen.
14.2.1 Add/Edit Static Route Screen
To add or edit a static route click the Add Static Route in Configuration > Network > Static
Route > Static Route screen or click on Edit icon under Modify in configuration > Network >
Static Route > Static Route. Fill in or change the required information for each static route.

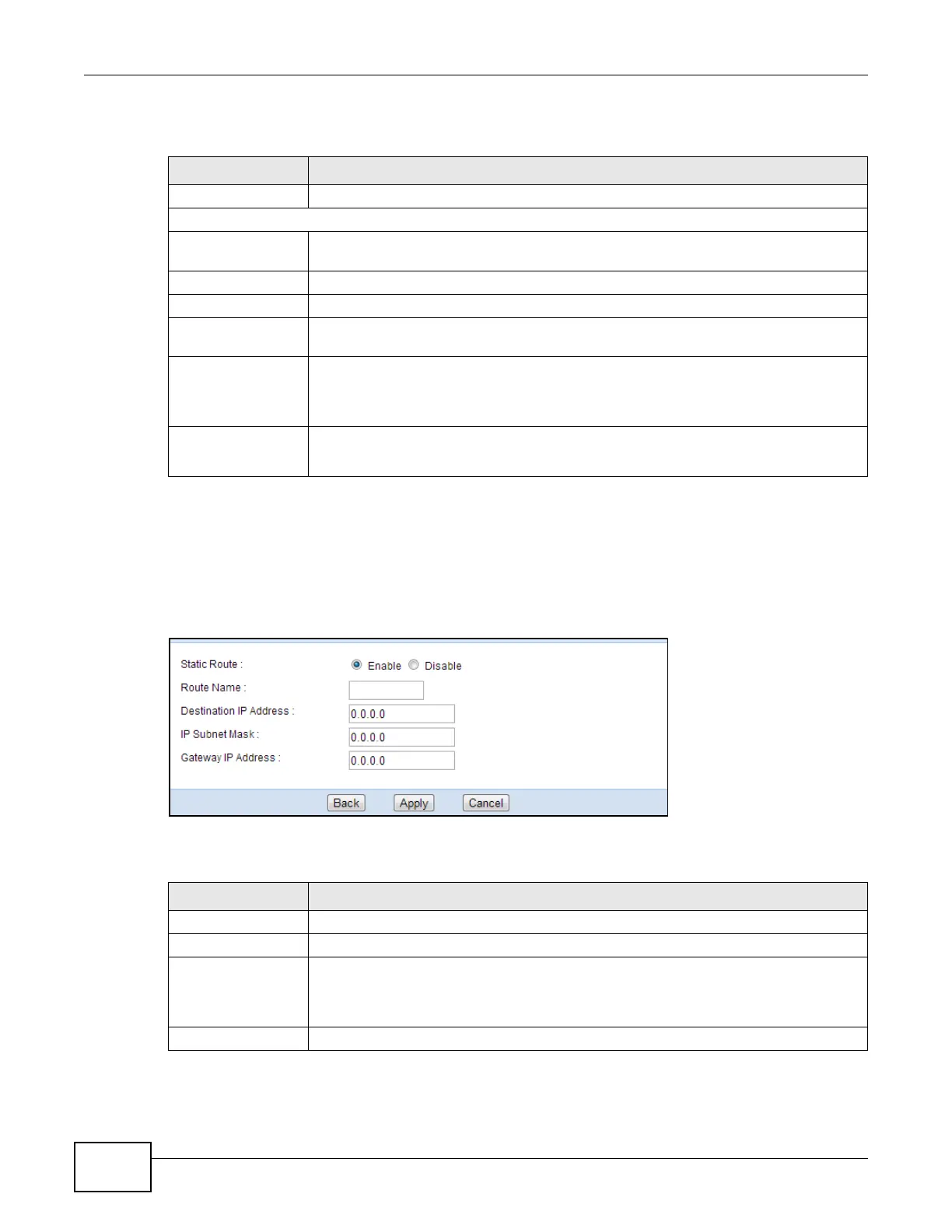

Figure 60 Configuration > Network > Static Route > Static Route > Add Static Route
The following table describes the labels in this screen.
Table 45 Configuration > Network > Static Route > Static Route
LABEL DESCRIPTION
Add Static Route Click this to create a new rule.
Static Route Rules
# This is the index number of an individual static route. The first entry is for the default
route and not editable.
Status This field indicates weather the rule is active (yellow bulb) or not (gray bulb).
Name Enter a the name that describes or identifies this route.
Destination Enter the IP network address of the final destination. Routing is always based on
network number.
Gateway Enter the IP address of the gateway. The gateway is an immediate neighbor of your
EMG2306-R10A that will forward the packet to the destination. On the LAN, the
gateway must be a router on the same segment as your EMG2306-R10A; over the
WAN, the gateway must be the IP address of one of the remote nodes.
Modify Click the Edit icon to open the static route screen. Modify a static route.
Click the Remove icon to delete a static route.
Table 46 Configuration > Network > Static Route > Static Route
LABEL DESCRIPTION
Static route This field allows you to enable/disable the static route.
Route Name Enter the name of the IP static route.
Destination IP
Address
This parameter specifies the IP network address of the final destination. Routing is
always based on network number. If you need to specify a route to a single host, use a
subnet mask of 255.255.255.255 in the subnet mask field to force the network number
to be identical to the host ID.
IP Subnet Netmask This is the subnet to which the route’s final destination belongs.
