5.2.1 Navigation Panel
Use the sub-menus on the navigation panel to configure EMG2306-R10A features.

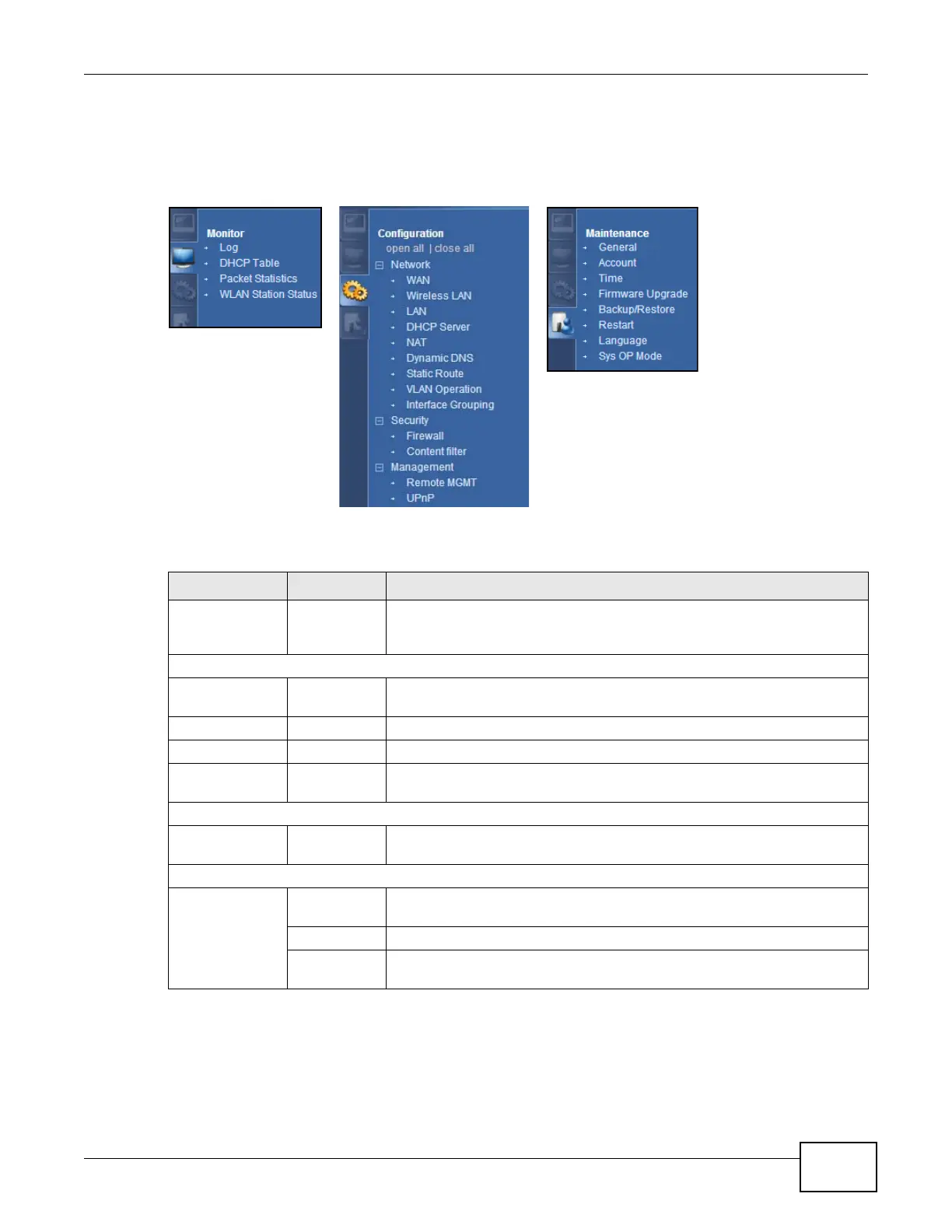

Figure 12 Navigation Panel: Router Mode
The following table describes the sub-menus.
Table 10 Navigation Panel: Router Mode
LINK TAB FUNCTION
Status This screen shows the EMG2306-R10A’s general device, system and
interface status information. Use this screen to access the summary
statistics tables.
MONITOR
Log Use this screen to view the list of activities recorded by your EMG2306-
R10A.
DHCP Table Use this screen to view current DHCP client information.
Packet Statistics Use this screen to view port status and packet specific statistics.
WLAN Station
Status
Use this screen to view the wireless stations that are currently associated
to the EMG2306-R10A.
CONFIGURATION
Open all | close
all
Click Open all to see all the sub menus in Configuration section. Click
close all to close all the sub menus in Configuration section.
Network
WAN Management
WAN
This screen allows you to configure ISP parameters, WAN IP address
assignment, DNS servers, the WAN MAC address, and VLAN settings.
Advanced Use this screen to configure multicast and auto-subnet.
Add New
WAN Entries
Click to add new ISP parameters for Internet access.
To Next Page
