Chapter 3 Monitor
EMG2306-R10A User’s Guide
21
Click the DHCP Table (Details...) hyperlink in the Status screen or Monitor > DHCP Table.
Read-only information here relates to your DHCP status. The DHCP table shows current DHCP client
information (including Host Name, IP Address, and Mac Address) of all network clients using
the EMG2306-R10A’s DHCP server.

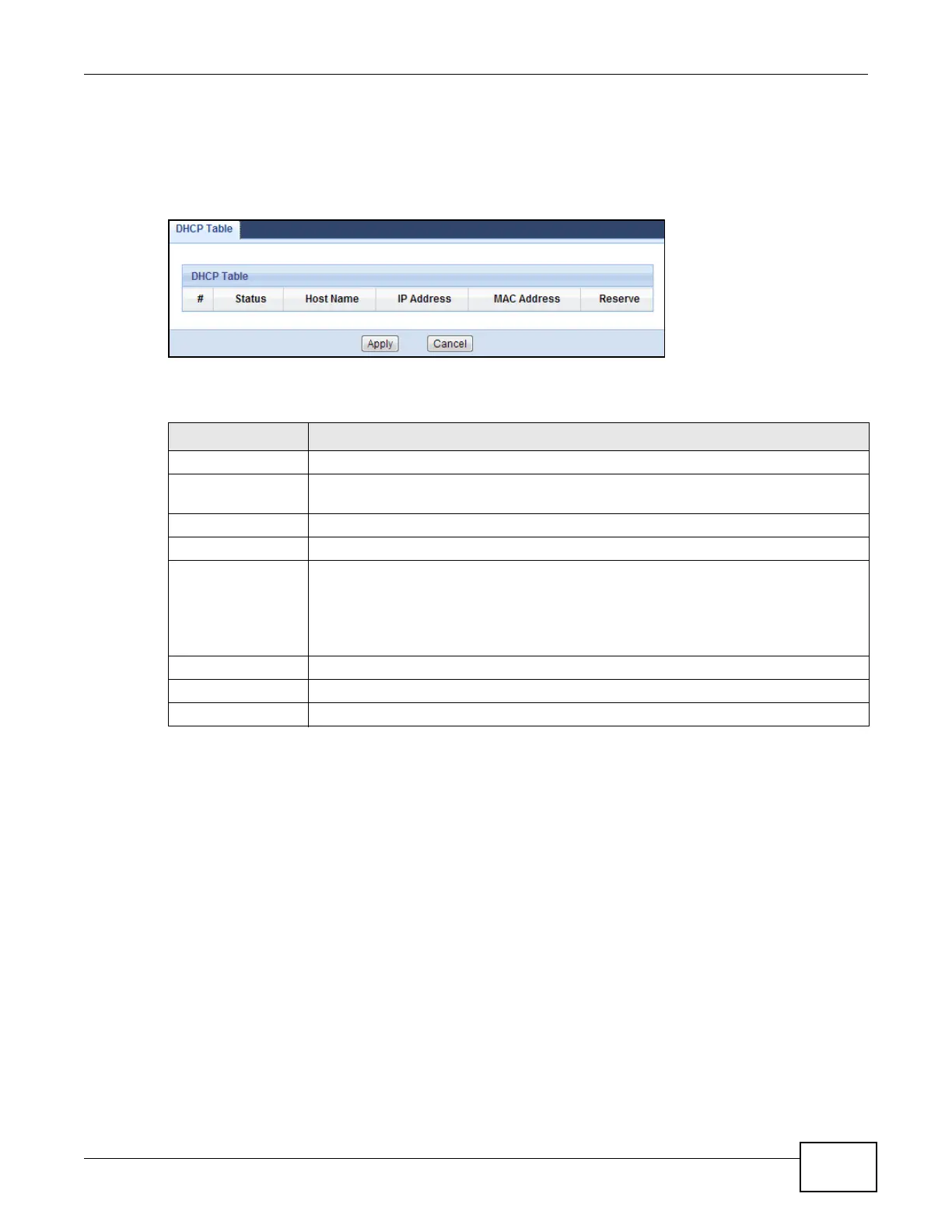

Figure 7 Summary: DHCP Table
The following table describes the labels in this screen.
Table 5 Summary: DHCP Table
LABEL DESCRIPTION
# This is the index number of the host computer.
Status This field displays weather the connection to the host computer is up (a yellow bulb) or
down (a grey bulb).
Host Name This field displays the computer host name.
IP Address This field displays the IP address relative to the # field listed above.
MAC Address This field shows the MAC address of the computer with the name in the Host Name
field.
Every Ethernet device has a unique MAC (Media Access Control) address which uniquely
identifies a device. The MAC address is assigned at the factory and consists of six pairs
of hexadecimal characters, for example, 00:A0:C5:00:00:02.
Reserve Select this if you want to reserve the IP address for this specific MAC address.
Apply Click Apply to save your changes back to the EMG2306-R10A.
Cancel Click Cancel to exit this screen without saving.
