February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930 Page 115

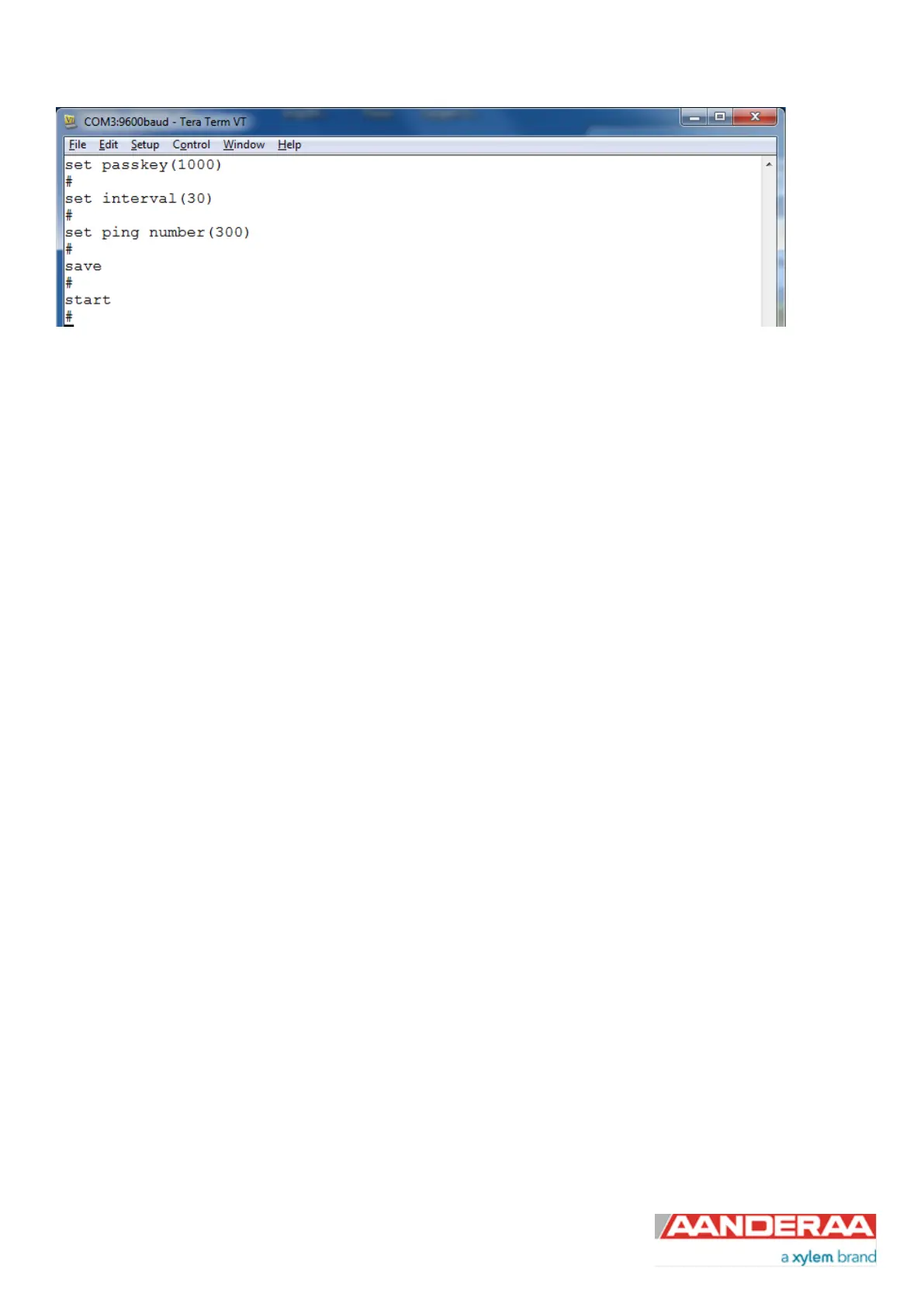

Figure 9-4: Sensor configuration
After the Start command the sensor starts the first 10s measurement interval. A ticking can be heard from the
transducer head. After 10s the sensor outputs all the measurement parameters, as illustrated in chapter 6.4.
All parameters are presented in one line terminated with CR+LF (the line is broken by the terminal program in the above
example).
The sensor readings should be according to the description in chapter 9.4.
