February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930 Page 69
CHAPTER 4 Logging data via AADI Real-Time Collector
4.1 Logging data on PC
The Real-Time Collector can save the incoming data to file if the sensor is in AADI Real-Time mode, either to a txt-file or
to xml-files.
4.1.1 Enabling file output
If your connection is open (port
open, status green in the AADI
Real Time Collector main menu
close the port first to be able to
change the file output settings.
Click on the connection you are
using. Then click on the
“Settings…” button, as shown in
Figure 4-1.

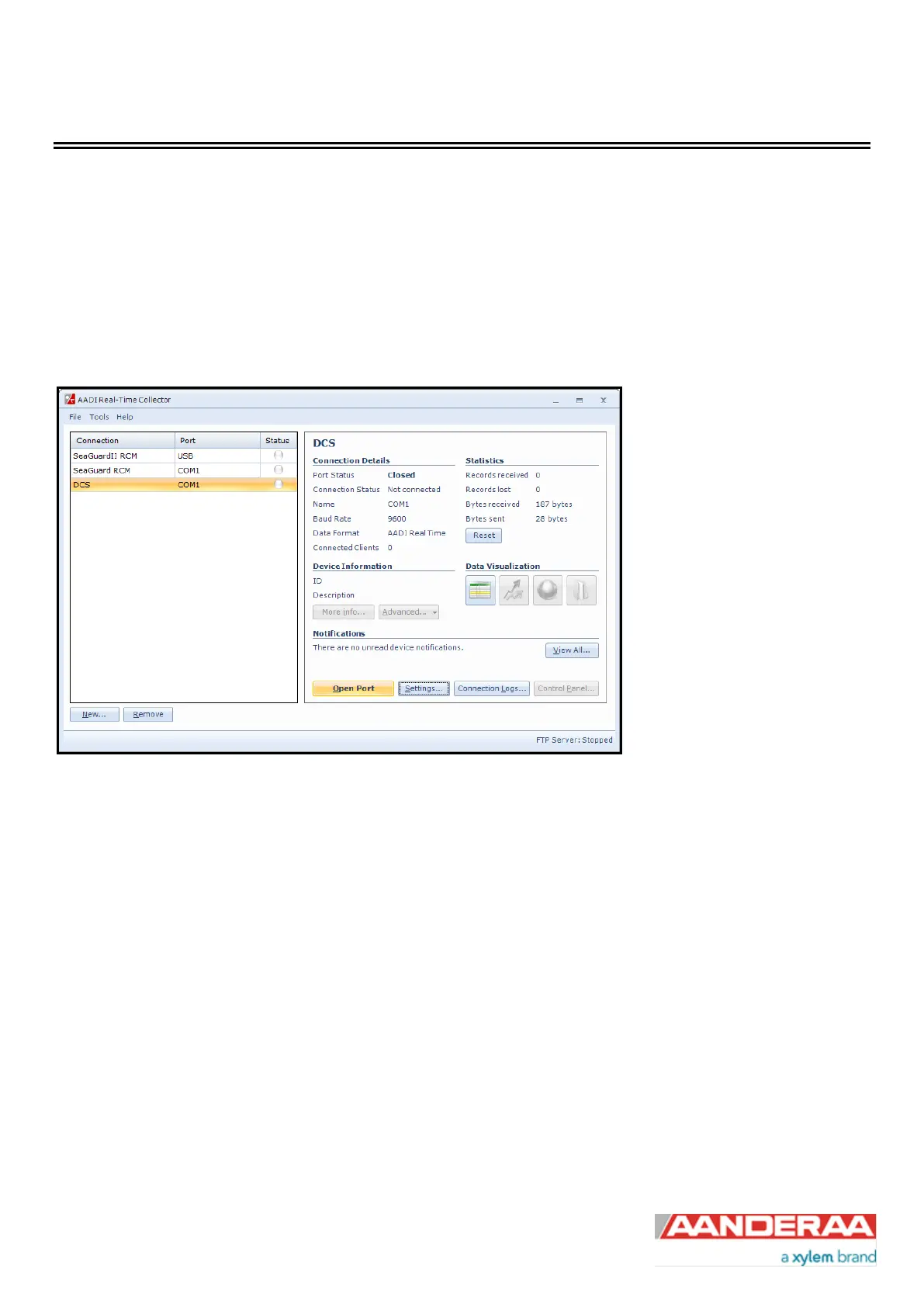

Figure 4-1: AADI Real-Time Collector start up menu
