Page 32 February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930
2.4.1 Common Settings

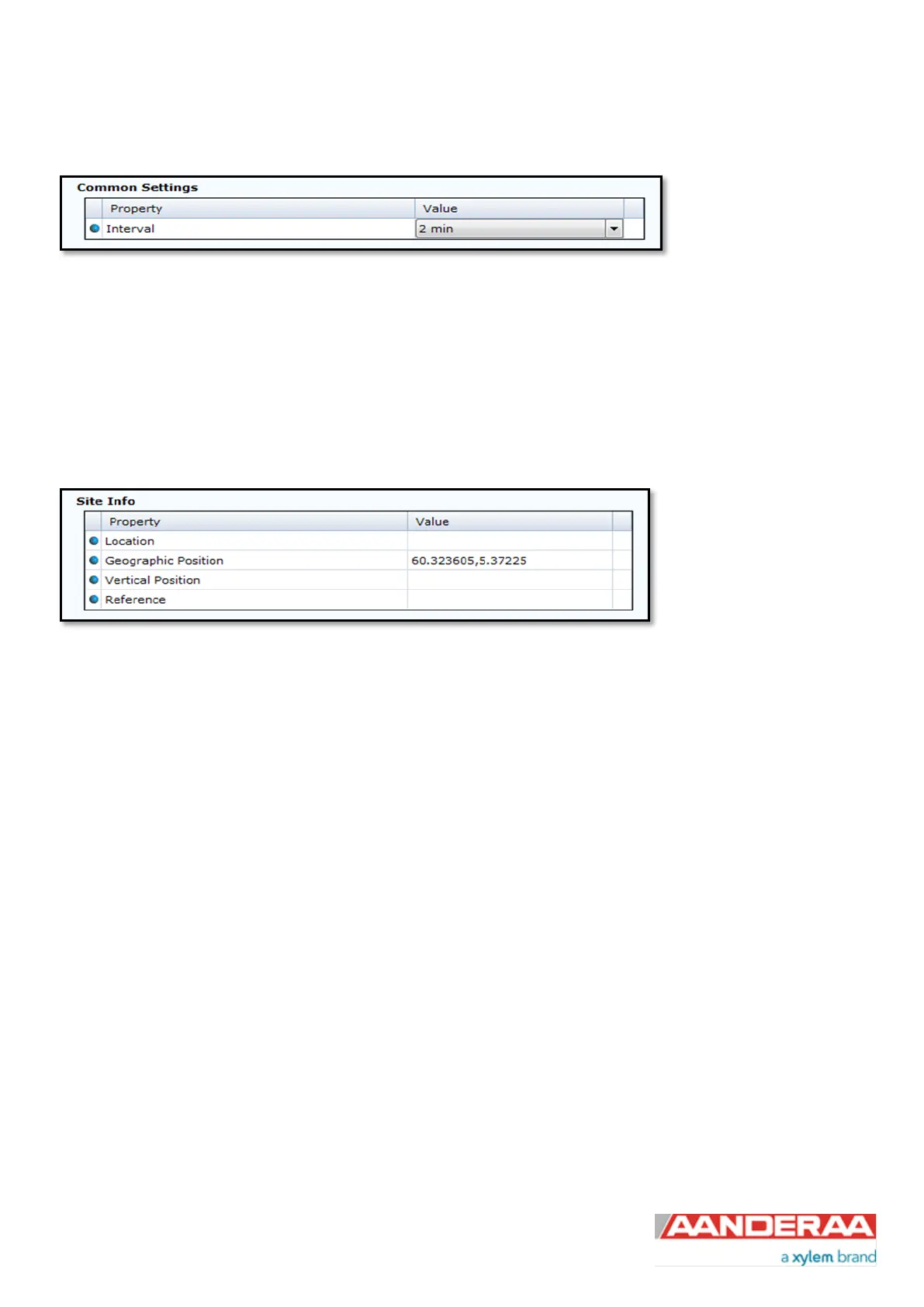

Figure 2-13: Common Settings
The interval can be changed in the Deployment Settings but can also be defined in the Control Panel under the
Recorder Panel tab before starting the sensor. It can be changed here also if for example the sensor is going to be
used without Real-Time Collector to collect data while running.
2.4.2 Site Info
Figure 2-14: Site Info
Site Info containing four properties:
Location
Geographic Position
Vertical Position
Reference
All these settings are optional information to be entered to store information about the deployment. These setting are not
used in calculation. Geographical Position is used to give the map coordinates unless a GPS input is connected to the
logger
