February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930 Page 121
10.2 Connecting Cables
Aanderaa offers a wide range of standard cables;
10.2.1 For AiCaP and RS-232 use

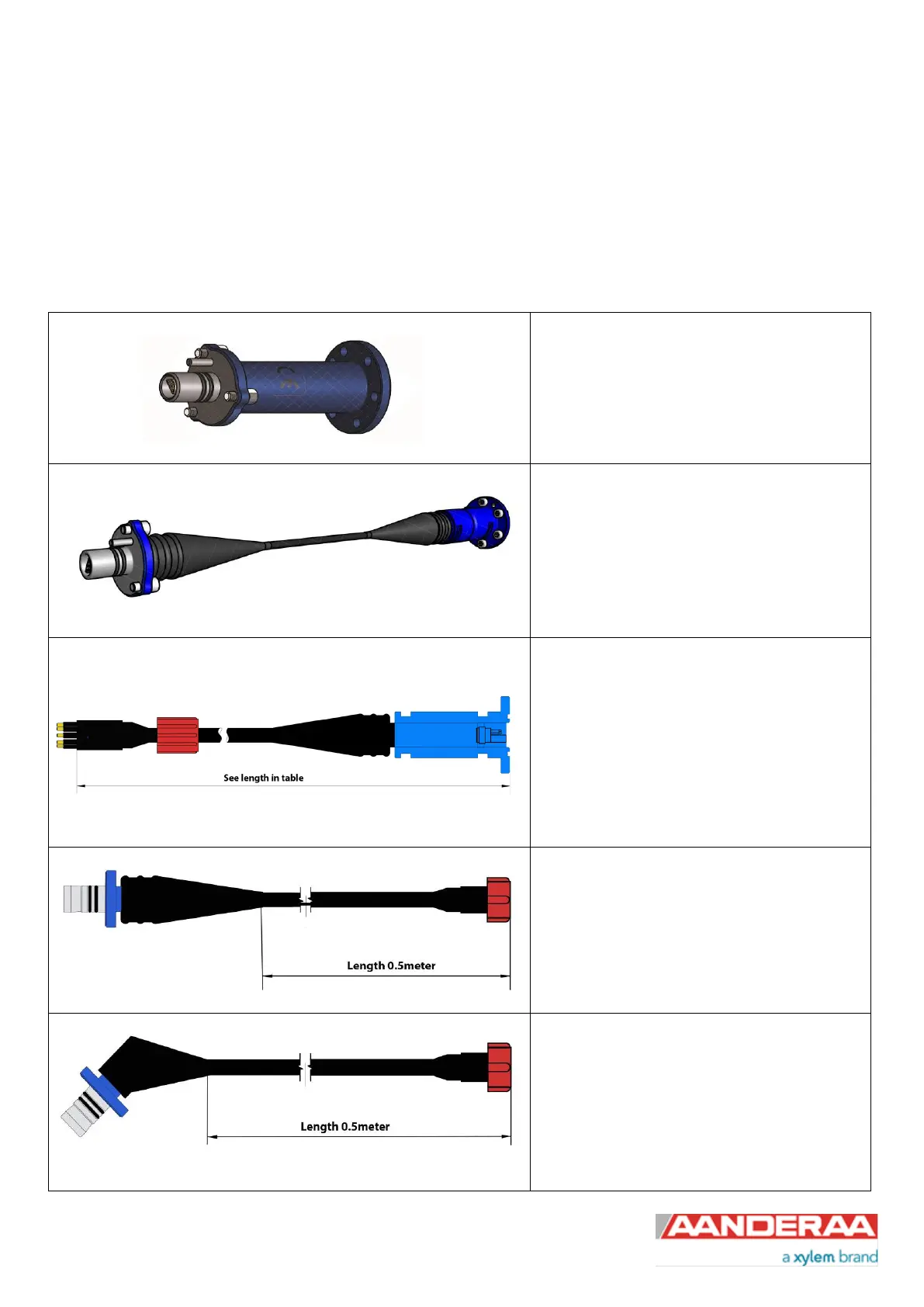

Table 10-1: Available cables for AiCaP and RS-232
• 4318 Sensor Foot AiCaP
• Used to connect DCS to SeaGuard or
SeaGuardII top-end plate
• Only for use in center hole
• 4838 Sensor Cable AiCaP
• Used for remote connection of DCS,
between sensor and SeaGuard or
SeaGuardII top-end plate
• Only for use in center hole
• 5340 Sensor Cable AiCaP and RS-232
• Used for remote connection of DCS,
between sensor and top-end plate via
male 8pin Subconn
• Needs 5662 or 4872 for connection to
SeaGuard top-end plate or 5245 for
connection to SmartGuard
• 5662 Connection Cable AiCaP
• Connection between straight plug on
SeaGuardII top-end plate using sensor
hole and 8pin Subconn on 5340 cable
• Needs 5340 cable for connection
• 4872 Connection Cable AiCaP
• Connection between angular plug on
SeaGuardII top-end plate using sensor
hole and 8pin Subconn on 5340 cable
• Needs 5340 cable for connection
