Page 14 February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930
1.3.2 Sensor pin configuration 4420R/4520R/4830R/4930R with RS-422 communication

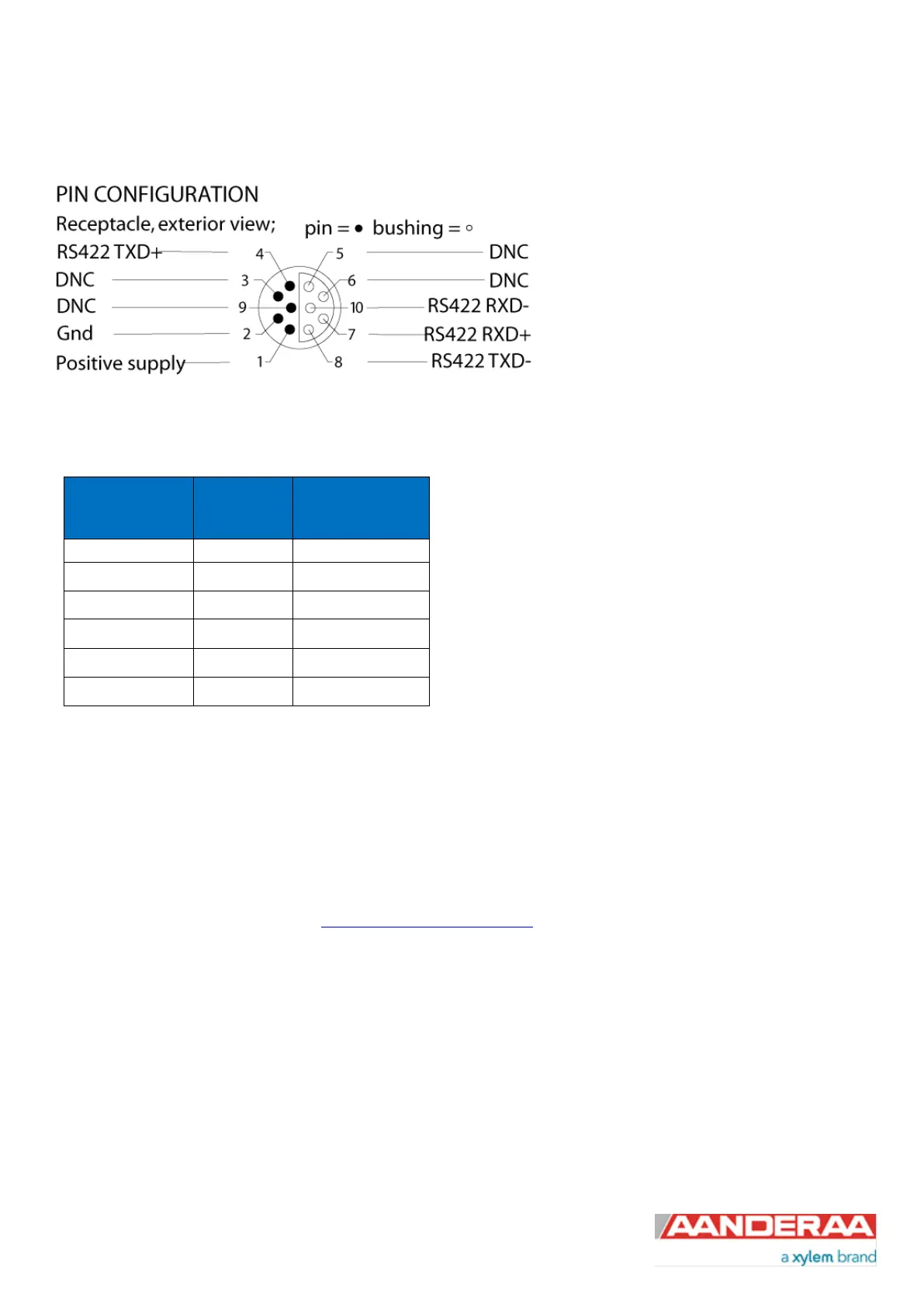

Figure 1-6: 4420R/4520R/4830R/4930R Sensor communication 10-pin plug with RS-422
Table 1-2: 4420R/4520R/4830R/4930R Sensor pin configuration 10-pin plug RS-422
1.4 Sensor Connection
Aanderaa offers a wide range of cables for different use of the sensors, both standard cables for use with loggers using
AiCaP, RS-232 and RS-422 but also special customer specified cables for use in project. See chapter 10.2 for an
overview of standard cables or contact aanderaa.sales@xyleminc.com for more info. To configure the sensor it either
need to be connected to an Aanderaa logger using AiCaP, a real-time RS-232/RS-422 cable or you need a RS-232
configuration cable. This cable can be used for all sensors regardless of version since all sensors have a RS-232
connection for configuration.
Signal name
Input (I)
Output (O)
Sensor plug
Pin no: MCBH6F
RX-
I
10
RXD/RX+
I
7
TXD/TX-
O
8
TX+
O
4
GND
2
Positive supply
1
