Page 42 February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930
2.6.5 Operation

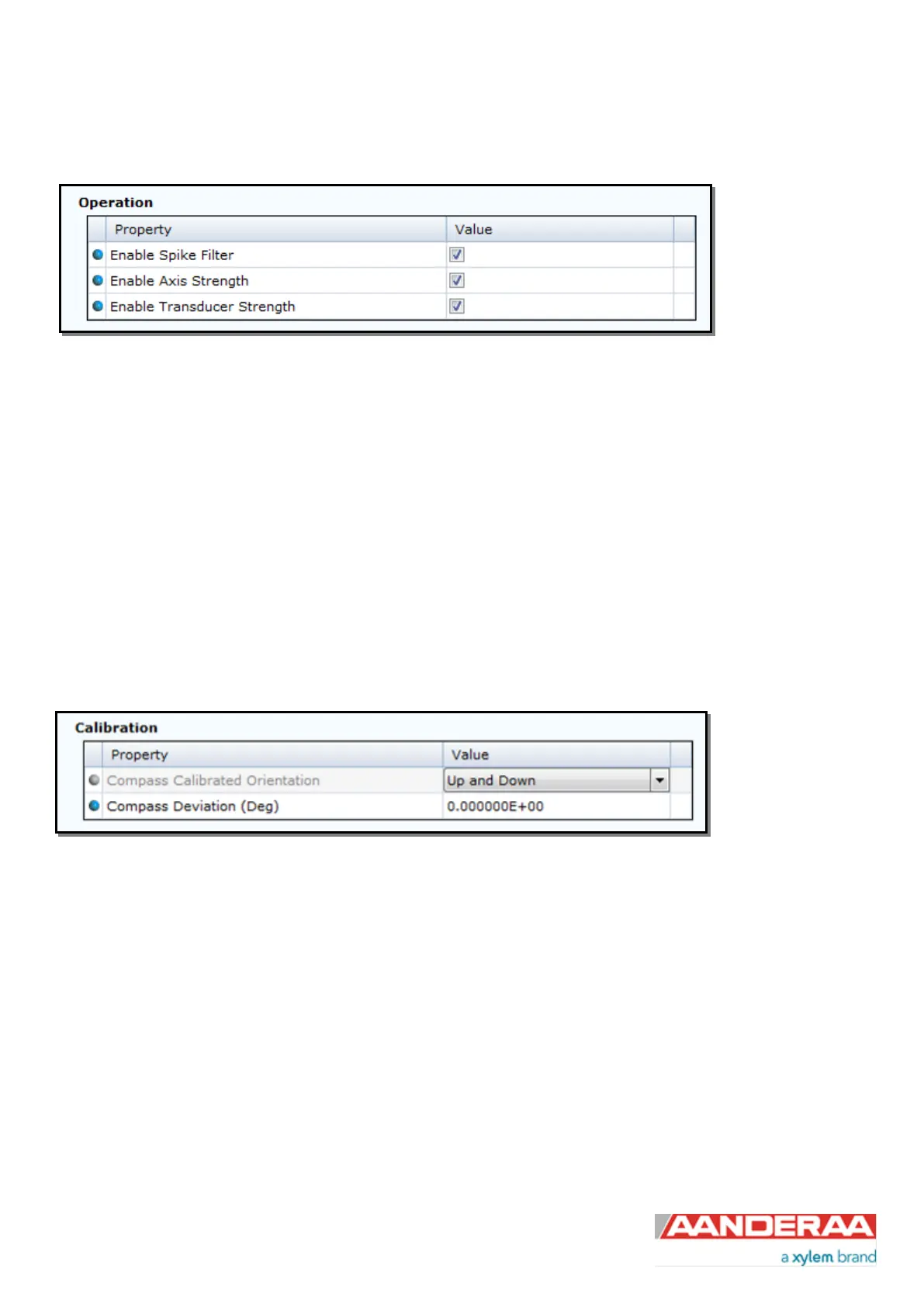

Figure 2-28: Operation
Enable Spike Filter Activate/deactivate spike filter; Set yes to activate. Default is yes. Spike filter tracks and eliminates
spikes in measured data.
Enable Axis Strength Enables output of strength X and strength Y. Result is an average of the two transducers on
each axis. Default is no.
Enable Transducer Strength Enables output of signal strength from each of the four transducers. Default is no.
2.6.6 Calibration
Figure 2-29: Calibration
Compass Calibrated Orientation. Indicate the possible operation direction for the sensor. Available alternative is. Only
UP, Only Down or Up and Down. This setting can only by altered by authorized personal and reflects the calibration
performed. To change this, the sensor needs to be recalibrated at the factory
Compass Deviation (Deg) Compass offset correction value (deg. M) used to adjust for an offset in the compass
calibration.
