Page 46 February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930
3.3.4 Connected via Real-Time cable on SeaGuard, SeaGuardII or SmartGuard
• Connect real-time cable from the instrument to the RS-232/RS-422 port on your computer. If your computer
have no serial port you might use a Keyspan usb to serial converter or simmilar. For RS-422 you also might
need a RS-422 to RS-232
• Install and start the AADI Real-Time Collector software on your PC (provided on the Memory stick delivered
with the instrument if ordered). For more information about the AADI Real-Time Collector, refer TD 268 AADI
Real-Time Collector Operating Manual
• Switch on the instrument by pressing the power button in the front of the instrument.
• Wait approximately 30 seconds before the instruments starts up and connection is available.
3.4 Establish connection via USB
NOTE!
When using a USB connection, you also need to install Windows Mobile Device Center (Windows Vista, and
Microsoft Windows 7) if not already installed on your computer. It can be downloaded from Microsoft website.
Windows Mobile Device Center acts as device
management and data synchronization between a
Windows Mobile-based device and a computer.
Once the USB connection has been established,
Windows Mobile Device Center will start
automatically:
If using windows 10 please see chapter 10.1
You may close this window after connection is
established.

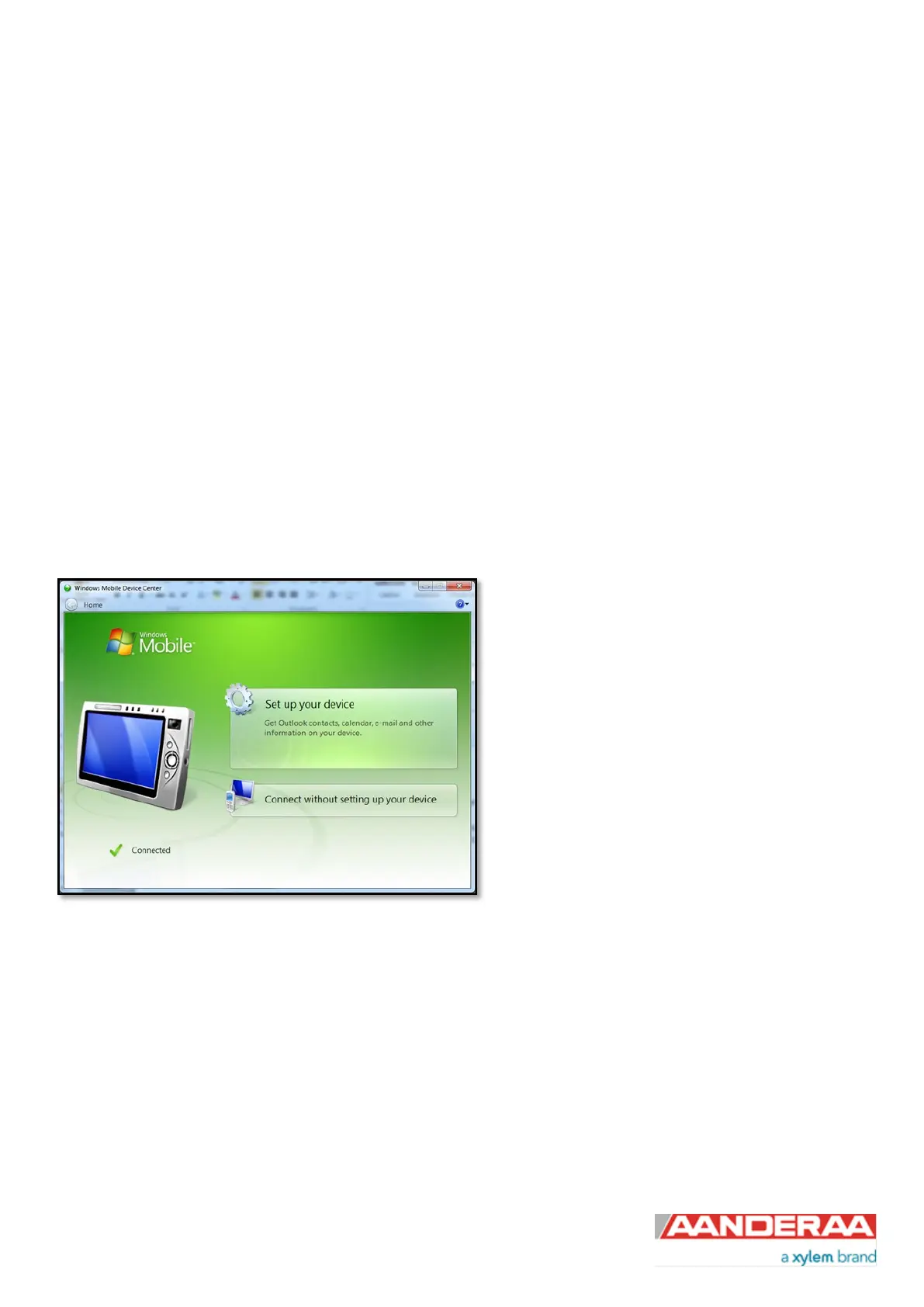

Figure 3-3: Windows Mobile Device Center
