February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930 Page 97
6.7 Help command output
The available/selectable values for Ping Number, Start Distance, Cell Size, Sound Speed, Active X-axis, Active y-
axis and Interval can be found by sending the command Help. This gives a printout from the sensor showing a short
help text from the sensor, refer Figure 6-10. Setting a value which is not shown here for enumerated properties gives an
error message (*ERROR ARGUMENT ERROR).

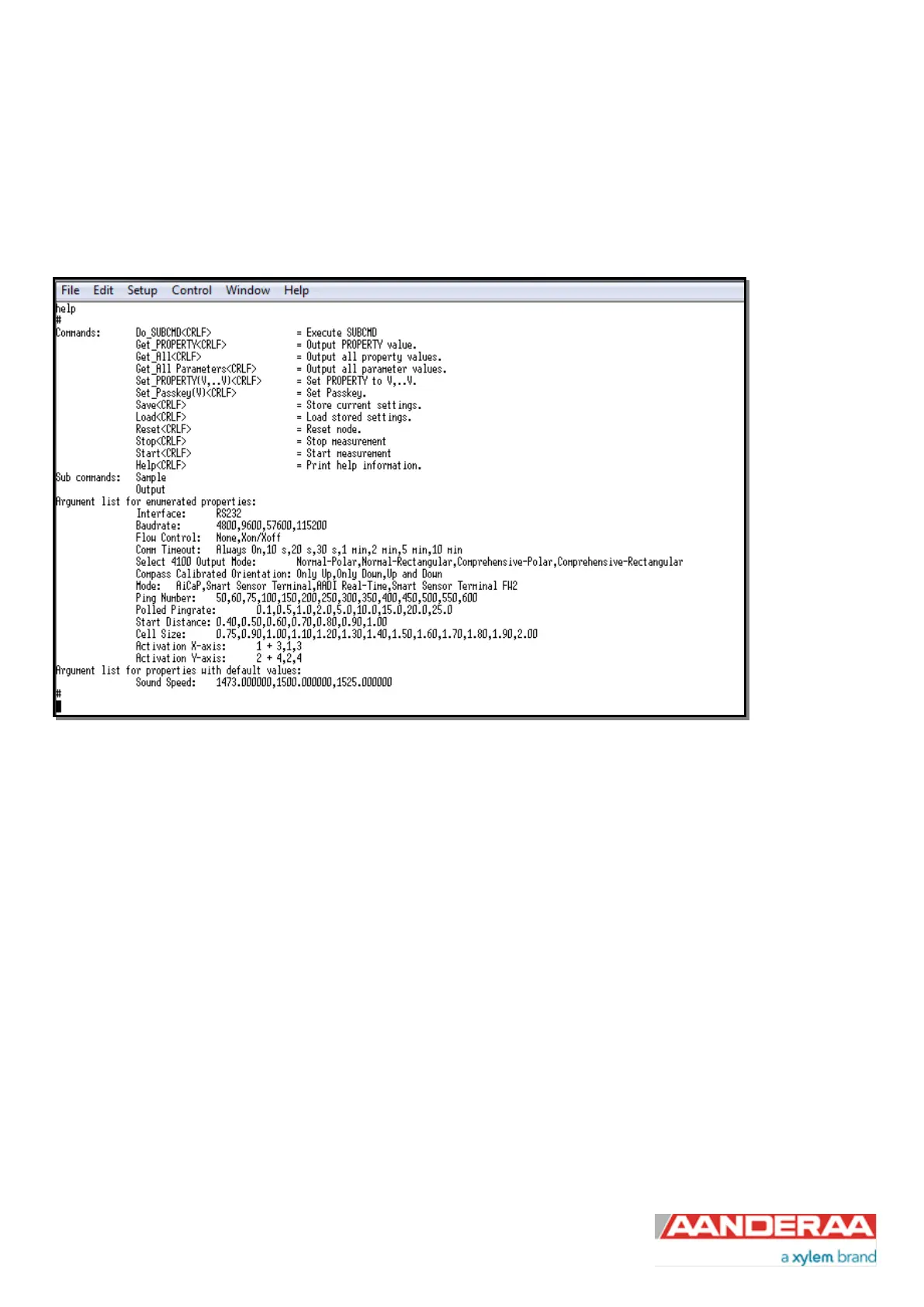

Figure 6-10: Output example from the Help command
