February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930 Page 75
5.2 System Configuration
When you select System Configuration you will first enter a window with
a Run Wizard button on the top and then to tabs named Instruments
and Sensors.
To configure the DCS you might either select the Run Wizard button and
then step trough all the System Configuration settings until you reach
the DCS settings our you might select the Sensors tab.

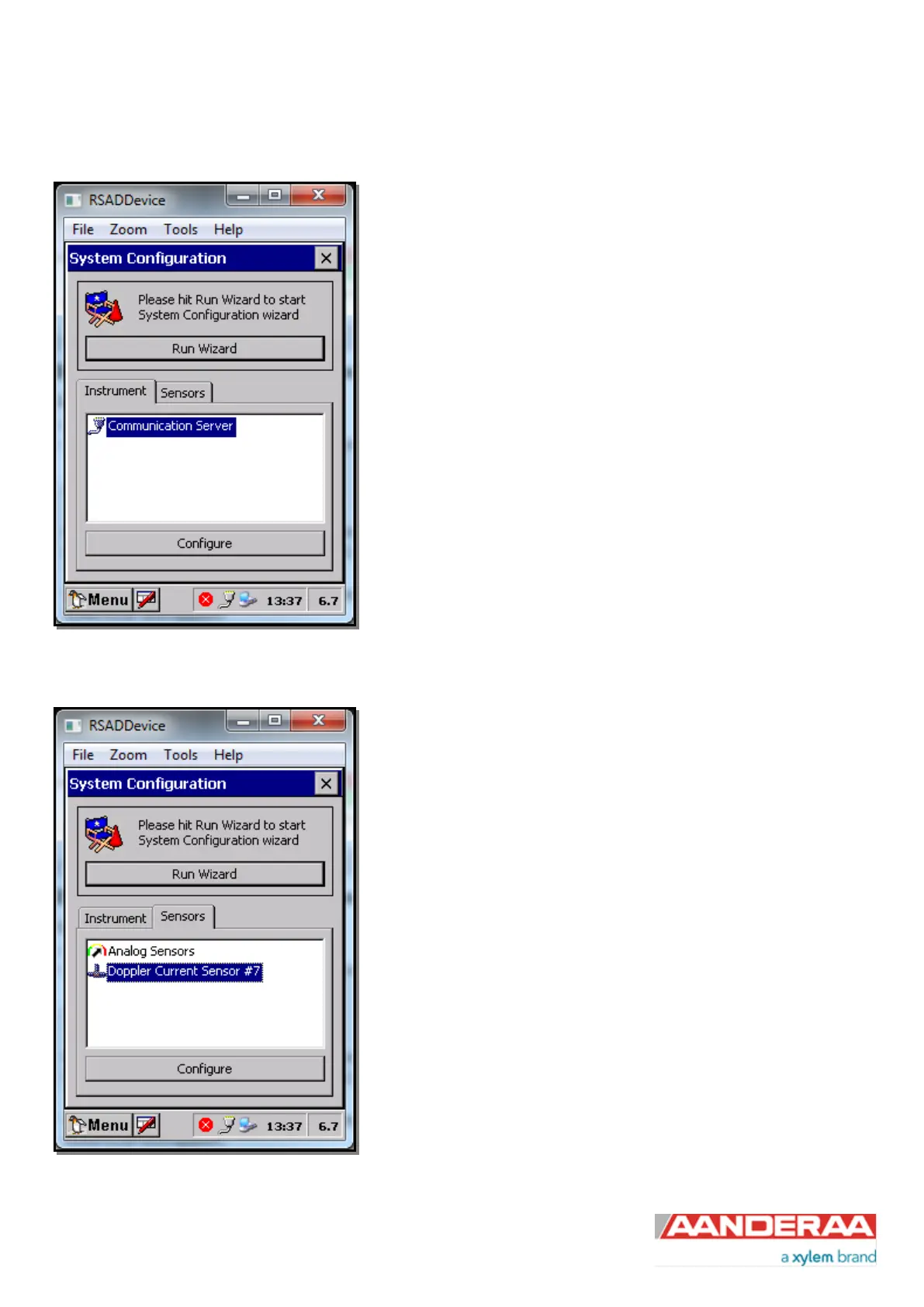

Figure 5-2: System Configuration
Under the Sensor tab you will find a list of all available sensors.
Select the DCS and then tick the Configure button.
Figure 5-3: System Configuration Sensors
