February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930 Page 13
1.3 Sensor pin configuration and data output
DCS 4420/4520/4830/4930 is using a 10-pin lemo plug for RS-232 and AiCaP communication between sensor and
logger; see Figure 1-5 for pin configuration. DCS 4420R/4520R/4830R/4930R is using a 10-pin lemo plug for RS-422
connection to external logger; see Figure 1-6 for pin configuration. For a list of available cables see chapter 10.2 or
contact aanderaa.sales@xyleminc.com.
1.3.1 Sensor pin configuration 4420/4520/4830/4930 with RS-232 and AiCaP communication

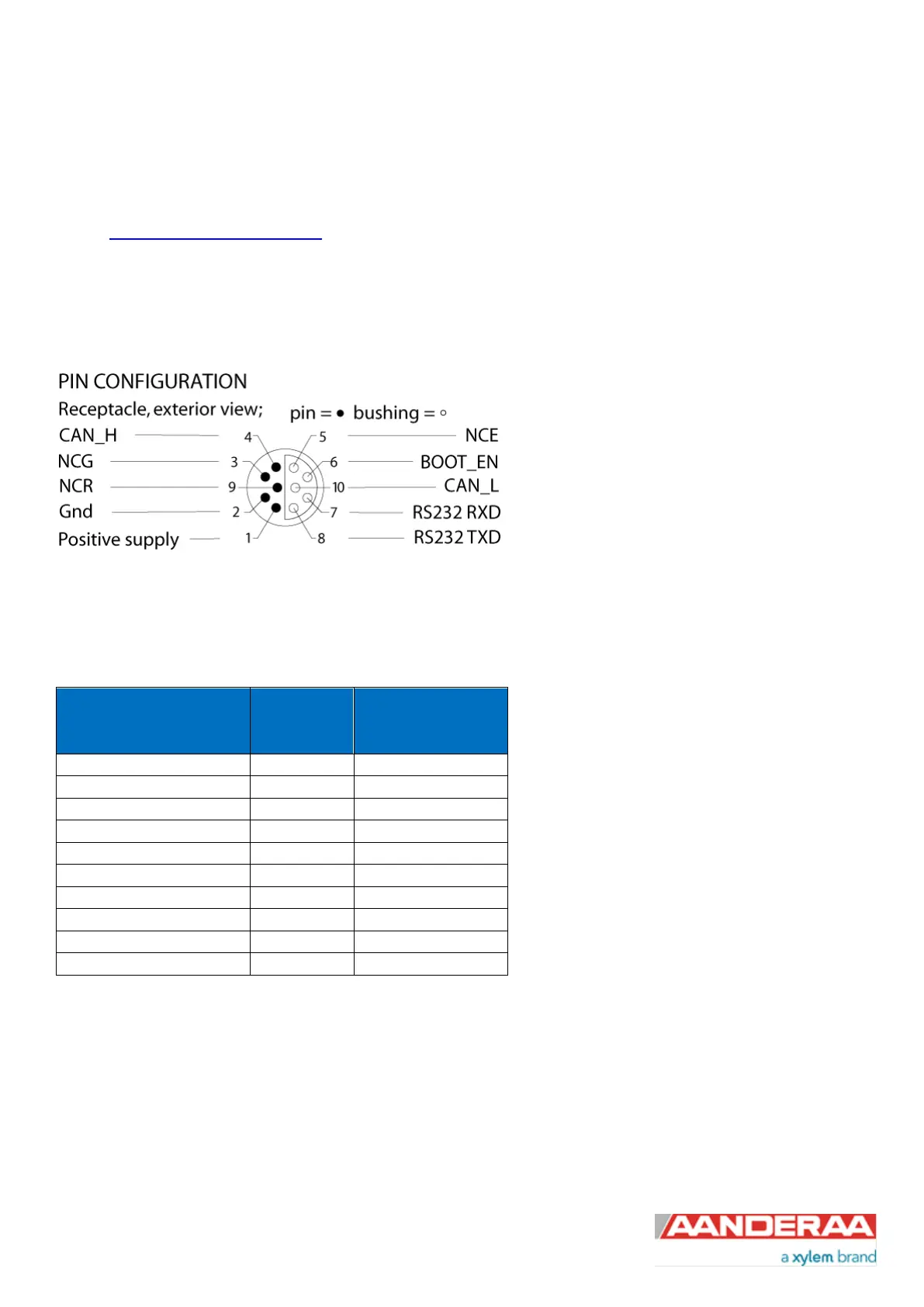

Figure 1-5: 4420/4520/4830/4930 Sensor communication 10-pin plug with RS-232 and AiCaP
Sensor Signal name
Input (I)
Output (O)
Sensor plug
MCBH10M. Pin no:
TXD
O
8
RXD
I
7
Positive supply
1
GND
2
NCE
5
NCR
9
NCG
3
CAN_H
4
CAN_L
10
BOOT ENABLE
I
6
Table 1-1: 4420/4520/4830/4930 Sensor pin configuration 10-pin plug AiCaP and RS-232
