Page 40 February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930
2.6.1 Mandatory

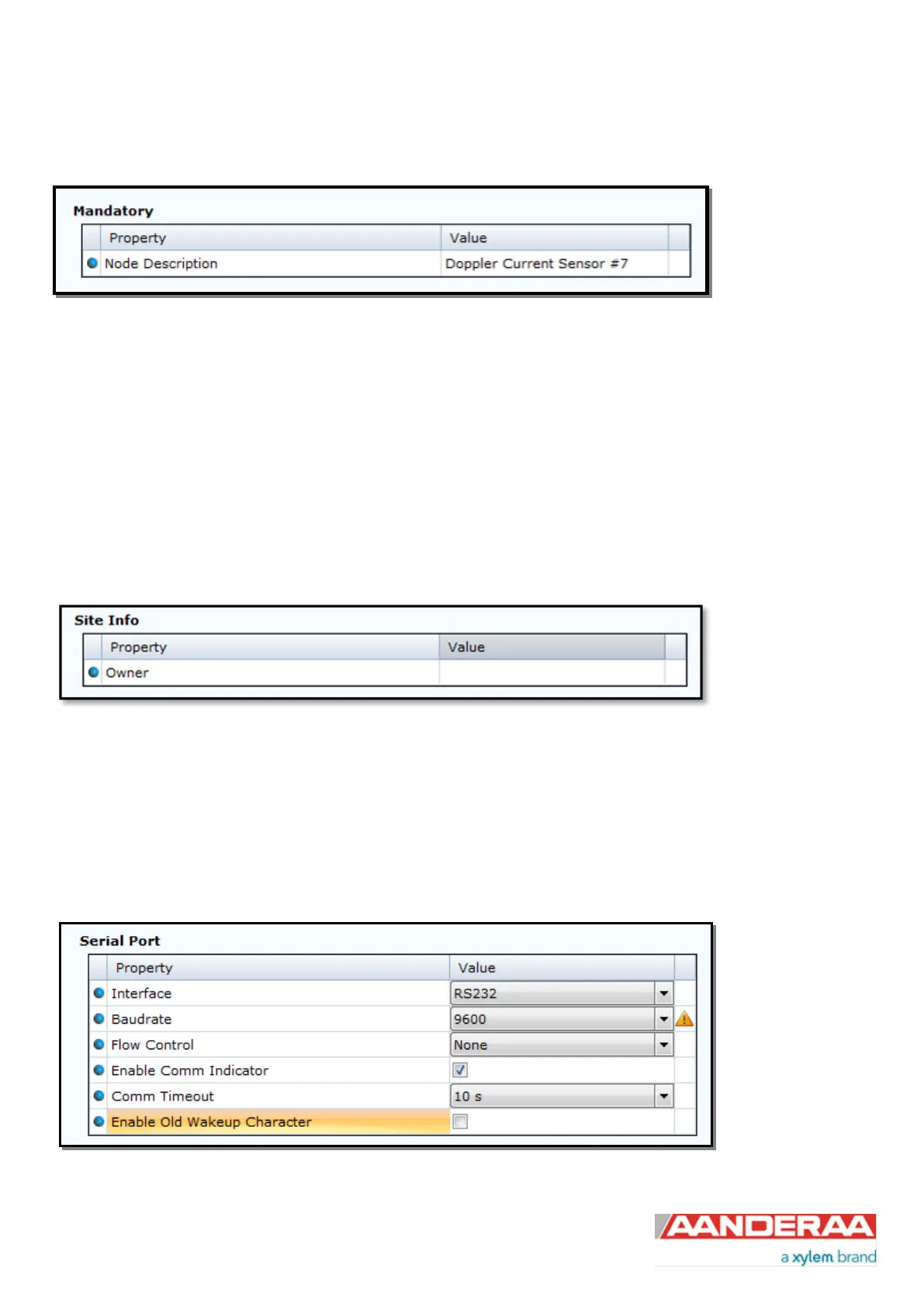

Figure 2-24: Mandatory
All sensors are given a Node Description text like DCS #xxx (xxx is the serial number of the sensor). The user can
modify this node description text if required. Be aware that the node description changes to *Corrupt Configuration if it
has lost the configuration in flash. Contact the factory if this happens. The configuration is saved in two sectors in flash
memory. A flash sector can be corrupted if the power is lost during the saving of new configuration. The double flash
sector saving ensures that it does not lose the configuration. If one of the sectors is corrupted, the other sector is used
and also saved to the corrupt sector.
2.6.2 Site Info
Figure 2-25: Site Info
Owner is only used for information and will be a part of the Meta data from the sensor. Not used in any calculations.
2.6.3 Serial Port
Figure 2-26: Serial Port
