Page 74 February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930
CHAPTER 5 Configuration via SeaGuard using Touch screen
SeaGuard Platform is available either with Plug Assembly used to communicate and configure via serial port or a Touch
Screen Display used to do all configuration directly on the screen without need of any PC.
How to configure SeaGuard with Plug Assembly are described in chapter 3.3.3 to 3.12.8
In this chapter we will described how to configure DCS on a SeaGuard using the touch screen display. For menus
dealing with general configuration of the SeaGuard platform and other sensors see TD262a Manual for SeaGuard
Platform.
5.1 Start Menu
To start the instrument push the button untherneath the display and wait
for approximatly 15 seconds before the display turns one and then
another 15 seconds before its ready for configuration.
Use the supplied stylus to push the Menu button in the left lower corner.
This menu keeps all the different menus used to control the entire
instruments. In this manual we will only cover Administrative Tools,
System Configuration and Deployment Setting that are all containing
setting for the DCS.
We will start with selecting System Configuration from the menu.

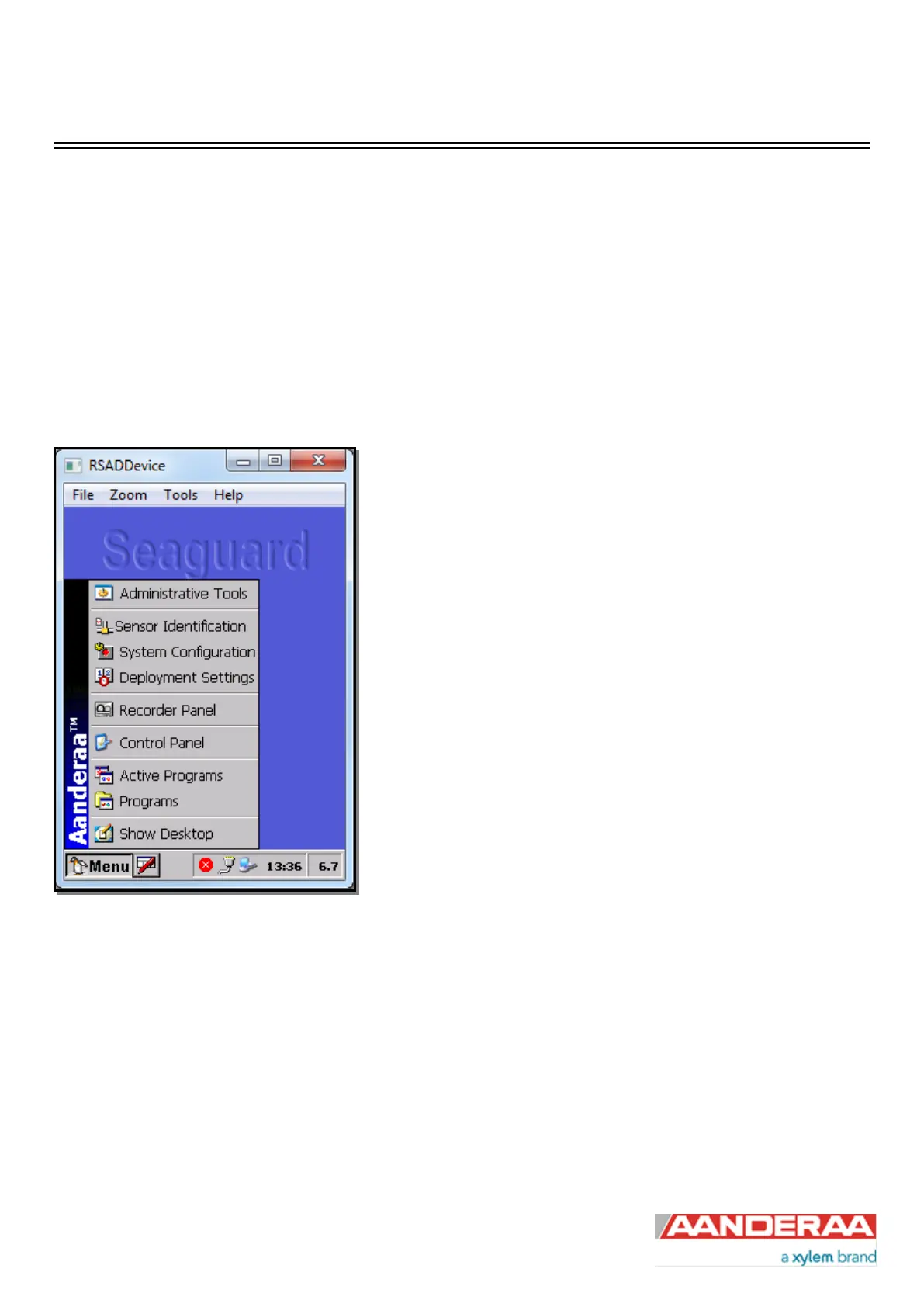

Figure 5-1: Start Menu
To Next Page
