Page 12 February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930
Note! RS-422 must be enabled from the factory prior to delivery. Enabling RS-422 disables the AiCaP and RS-
232 interface.

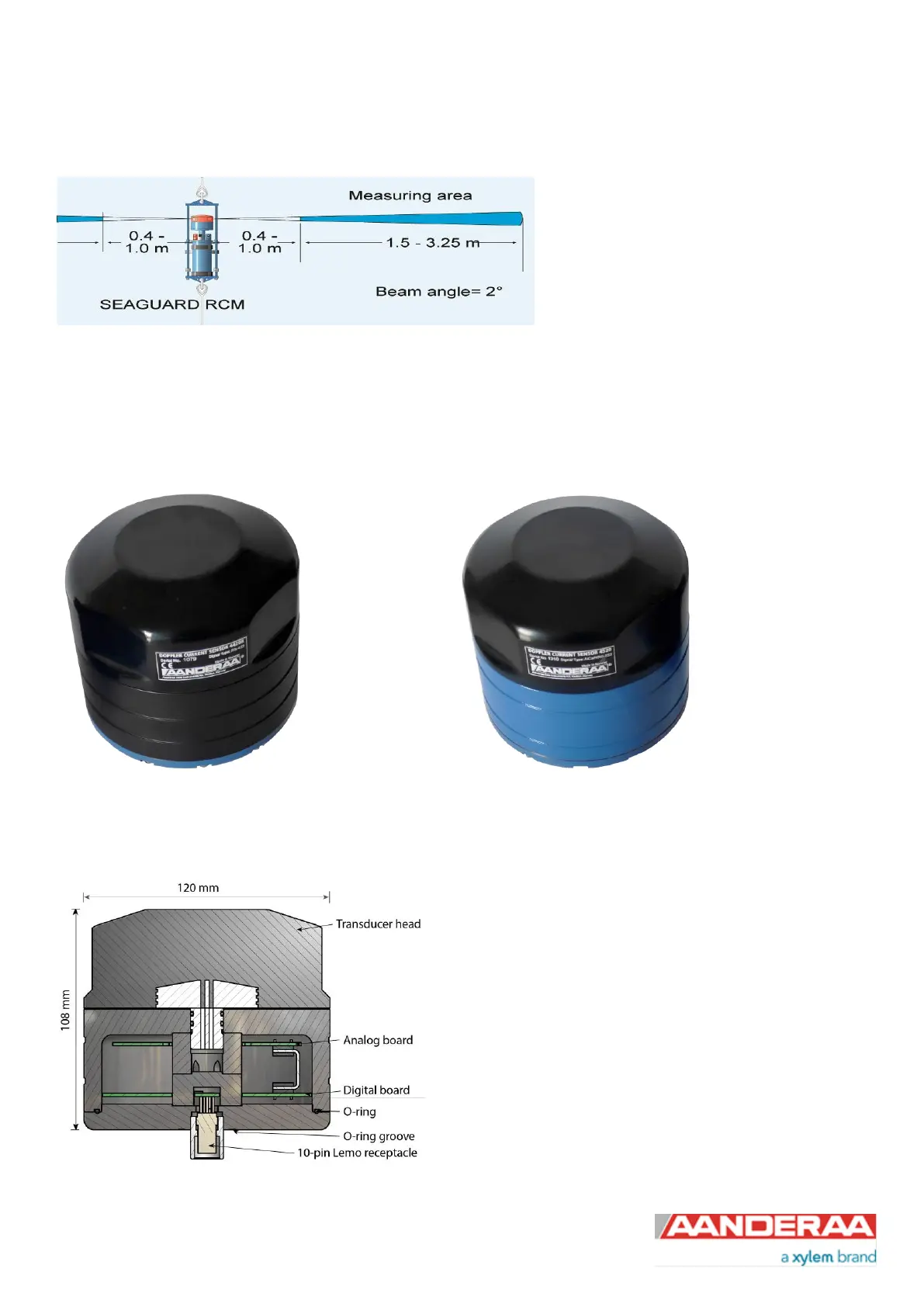

Figure 1-1: Measuring area for ZPulse
®
DCS
1.2 Sensor Dimension
Figure 1-2: Shallow Water SW Figure 1-3: Intermediate Water IW/ Deep Water DW
Figure 1-4: Sensor dimension
