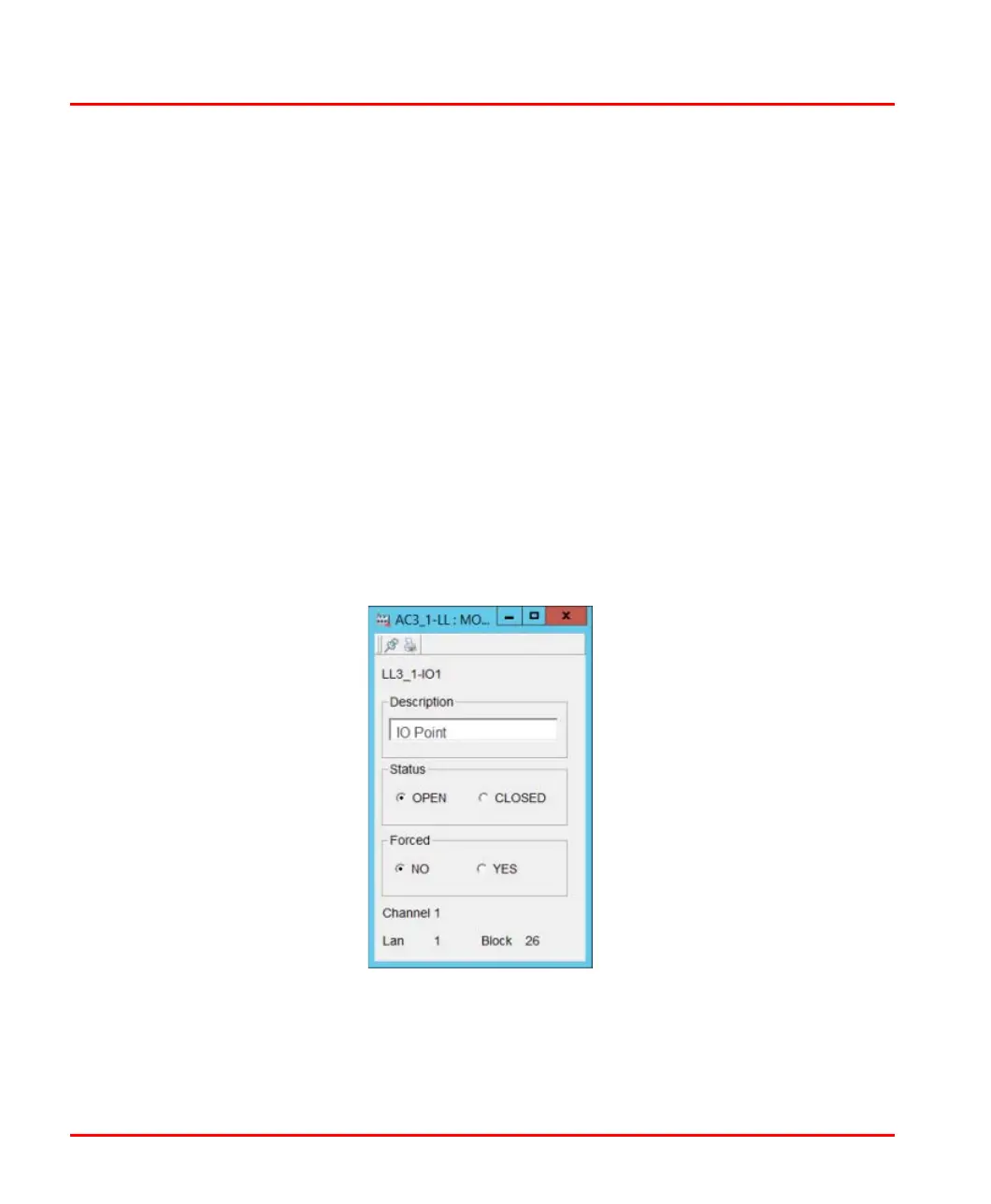

Figure 53. TLL I/O Point Faceplate
I/O Point Faceplate Section 5 TLL Displays
116 3BUR002418-600 A
S800 I/O points, the faceplate shows the Channel number. The following fields can
be edited on this display:
Status The Status field gives the current value of the AC parameter
of the point. It can be either Open or Closed for a contact, or
On or Off for a coil. Change the status by selecting the
Status field for the point, then selecting the appropriate
status from the pull down list. Status changes are logged.
Forced When the Forced field is YES, you can determine how the
value of a points status affects the segment since the
change is not sent to the actual I/O point. When the Forced
field is NO, status field changes affects the actual I/O point.
You can change between YES and NO by selecting the
Forced field for the point, then selecting the appropriate
Forced value from the pull down list. Changes to this field
are not logged.
Description Use this field to modify the associated description.
