Register Display
The Register Display, Figure 46, contains a list of the registers, places in memory
that are used to store values, in the device. This display is accessed by selecting a
Ladder Logic object and then selecting MOD300 TLL Register from the context
menu.
The following fields can be edited on this display:

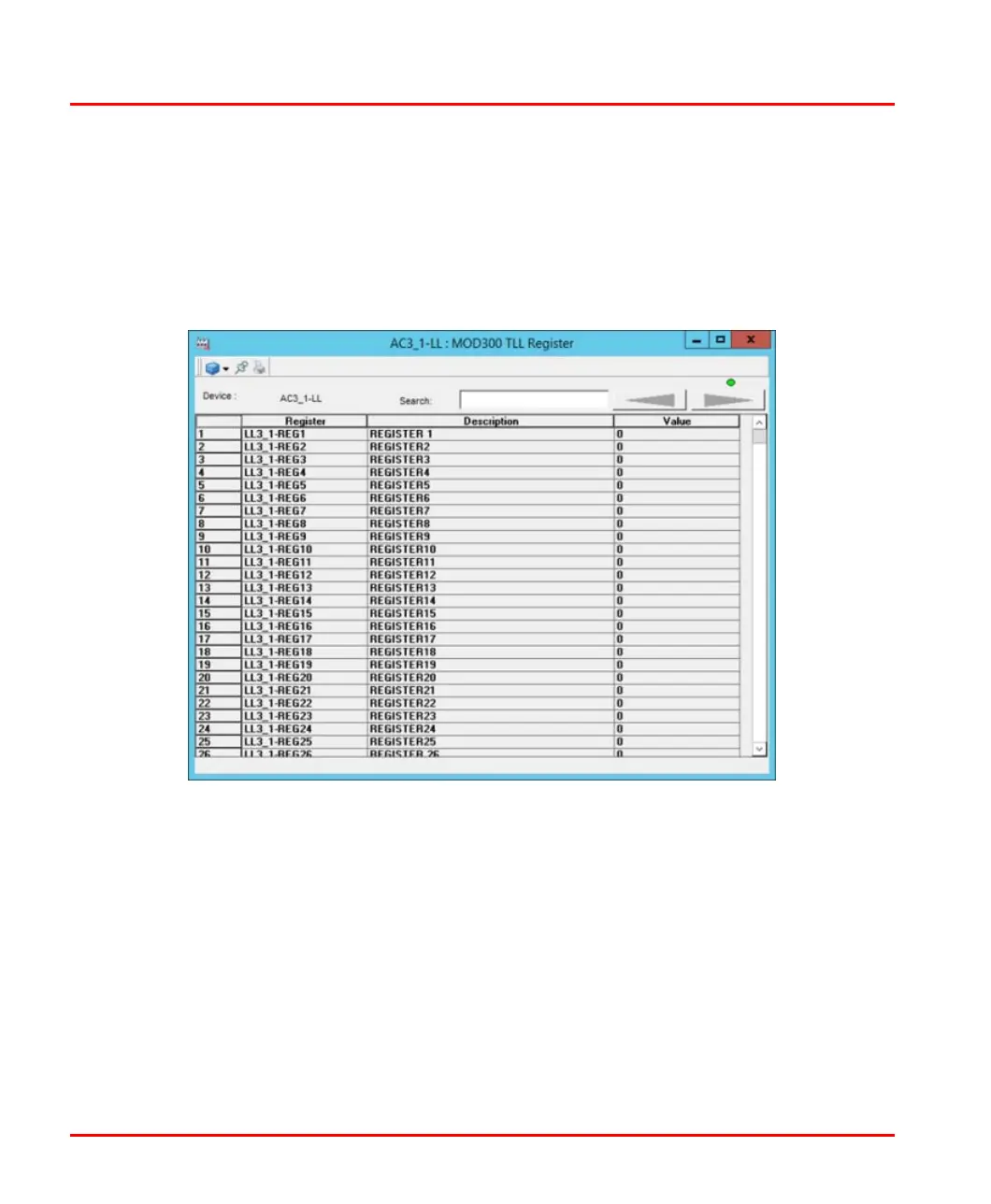

Figure 46. TLL Register Display
Value You can change the value of a register by selecting the Value
field for the register, entering the new value, then pressing
ENTER. This change is then applied.
Description Use this field to modify the associated description.
