SFC (Sequential Function Chart) Display Section 4 TCL Displays
86 3BUR002418-600 A
causes the step indicated to be executed after the current step. The next step can skip
or repeat other steps as necessary. Pause Step determines at which step the sequence
stops and waits for an operator response.
SFC (Sequential Function Chart) Display

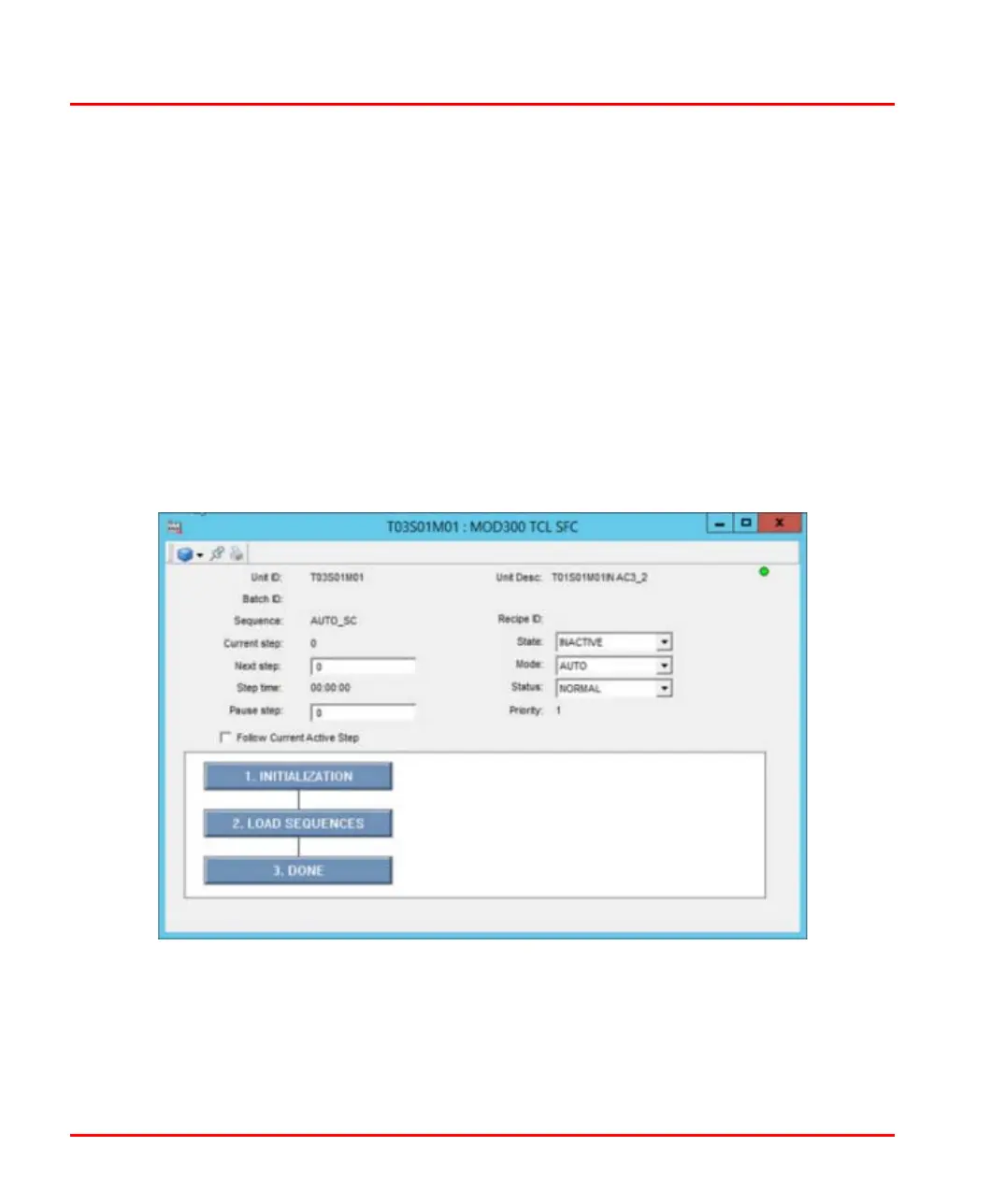

The SFC (Sequential Function Chart) Display, Figure 36, supports runtime
monitoring and manipulation of an individual sequence by presenting information,
similar to that found in the Sequence Detail Display, but with a graphical flow chart
format. This chart presents TCL steps and activities (actions a sequence will
execute), along with the transition conditions which determine the flow of the
sequence execution. Activities and conditions describe the program flow in plain
language rather than the TCL syntax used in the Sequence Debug Display.
Figure 36. SFC Display
