Diagnostic Message Display Section 6 Status Displays
140 3BUR002418-600 A
Diagnostic Message Display
If the system is configured with multiple connectivity pairs user will receive
duplicate diagnostic messages. The original diagnostic message and duplicate
messages if any can be acknowledged.

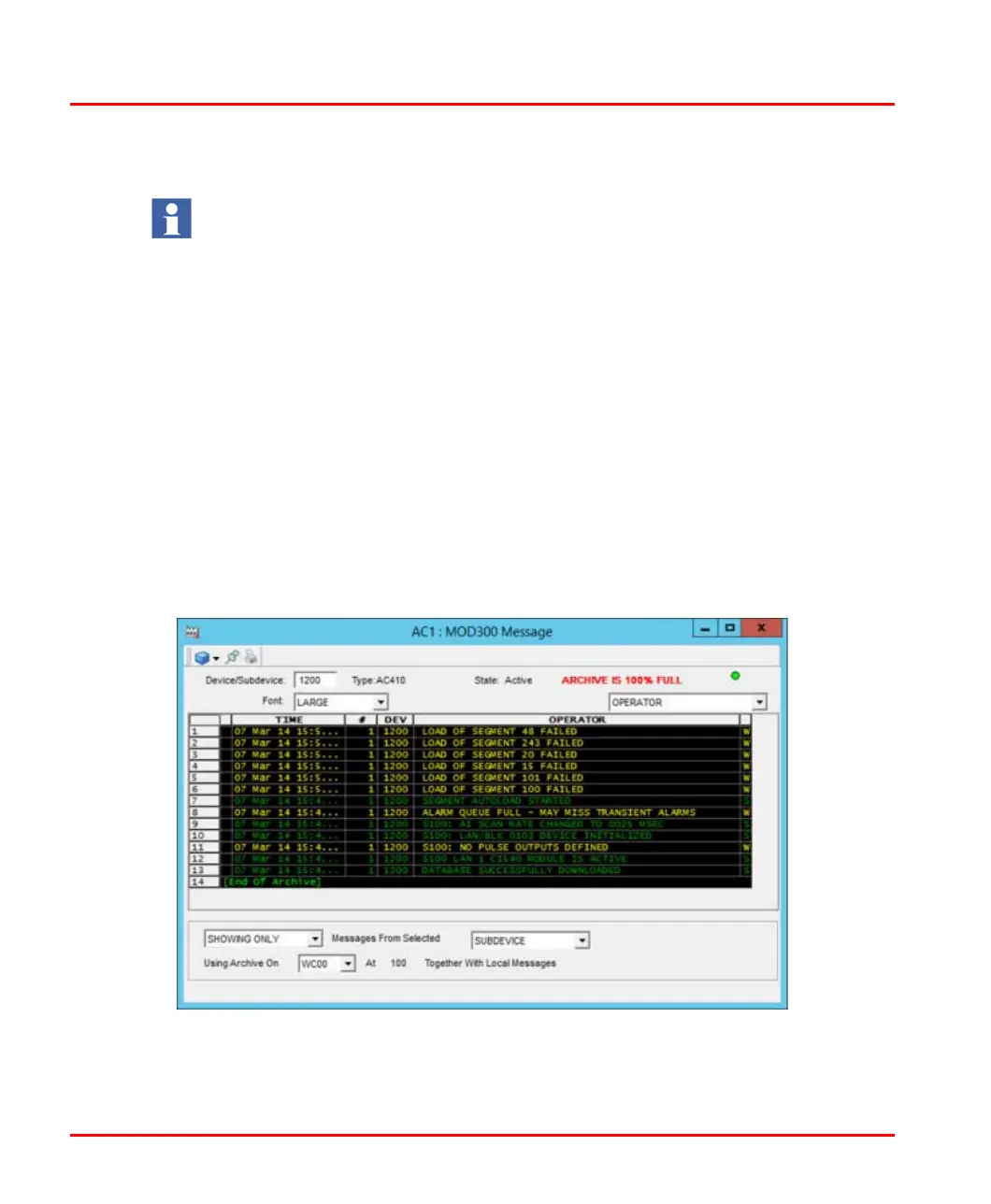

Figure 63. Diagnostic Message Display
The Diagnostic Messages Display, Figure 63, shows all messages reported and filed
as a diagnostic failure by a device/subdevice of the MOD control system (both
system software and system hardware) along with an indication of the time,
frequency and type. A font selection allows you to display large, medium or small
fonts and consequently fewer or more lines in the main portion of the display.
Colors are assigned to each message type as defined below:
Color Indication Diagnostic Message Type
Red Fatal (F) and Error (E)
Yellow Warning (W)
Green Informational Status (S)
