Section 7 I/O Displays PROFIBUS Device Display
3BUR002418-600 A 171
If the device is the CI541 type CTL, selecting that icon will bring up the CI541
Diagnostics Display, Figure 74. Currently, there are no LAN diagnostics. Only the
revision will be displayed.
PROFIBUS Device Display
The PROFIBUS Device display is started by selecting a configured device from the
PROFIBUS LAN Display. The PROFIBUS Device display, Figure 75, shows
information about the modules for the selected device on the current LAN. Select a
display target to get a Module/Channel Display. The right scroll bar is used to view
other modules. Use the context menu to move up to the LAN display. From this
display you can:
• Select a module display target (MOD) to call up the Module/Channel display.
• Scroll display as necessary to view all modules (up to 64).
• View the device diagnostics and device info.
• Call up the display to another LAN # by returning to the AC460 display or
navigate back to the LAN display through the context menu.

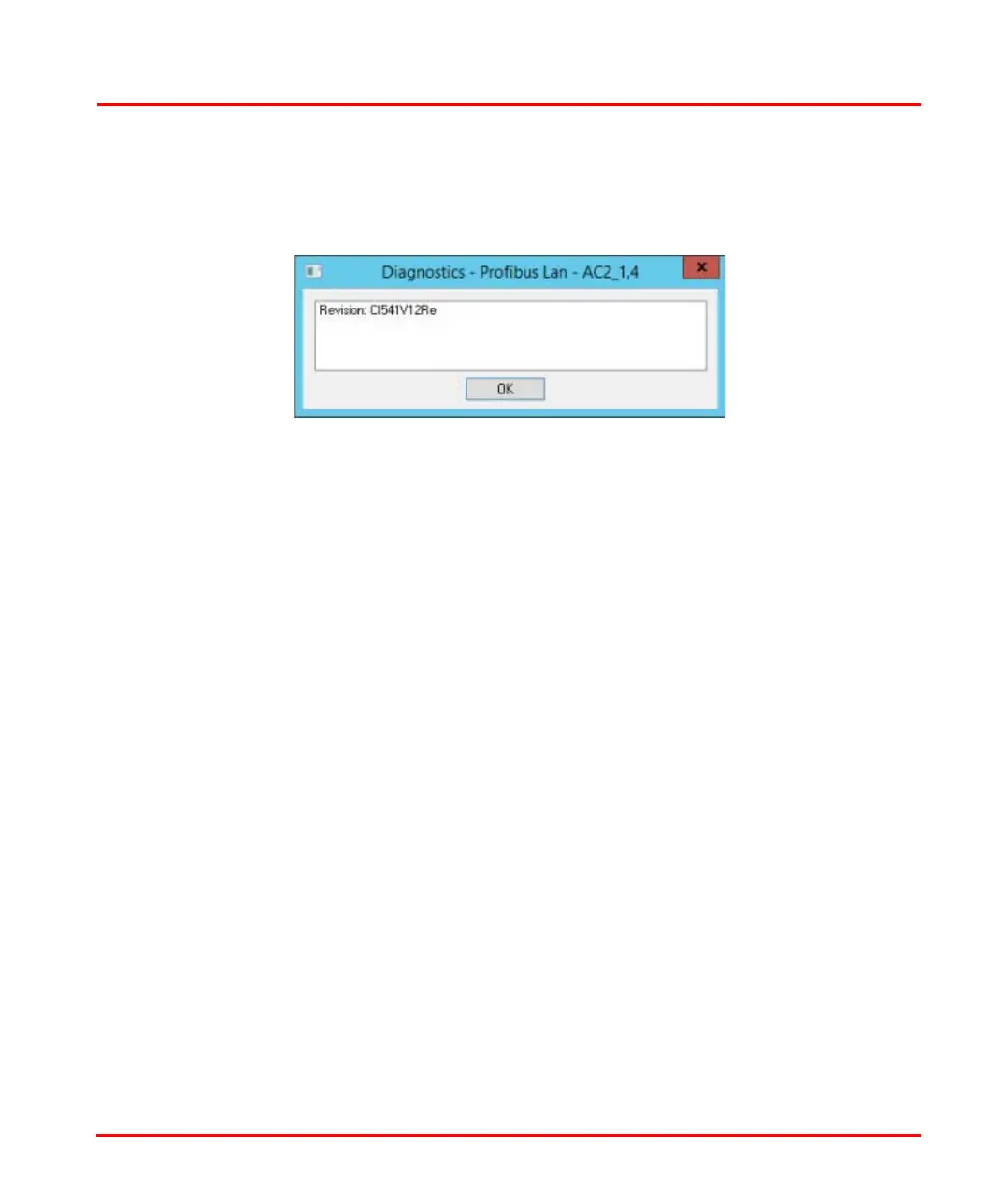

Figure 74. CI541 Diagnostics Display
