PROFIBUS LAN Display Section 7 I/O Displays
170 3BUR002418-600 A
PROFIBUS LAN Device Detail
In the main section of the display, a detail window shows specific information about
each PROFIBUS Device. The right scroll bar is used to view other devices on the
LAN. The display is arranged in a 10 by 8 grid for all devices (0 -125). Devices not
configured are not shown. Device 125, being in the lower right corner, can be seen
by scrolling the window to that area of the grid. For each device, information is
displayed as described below.

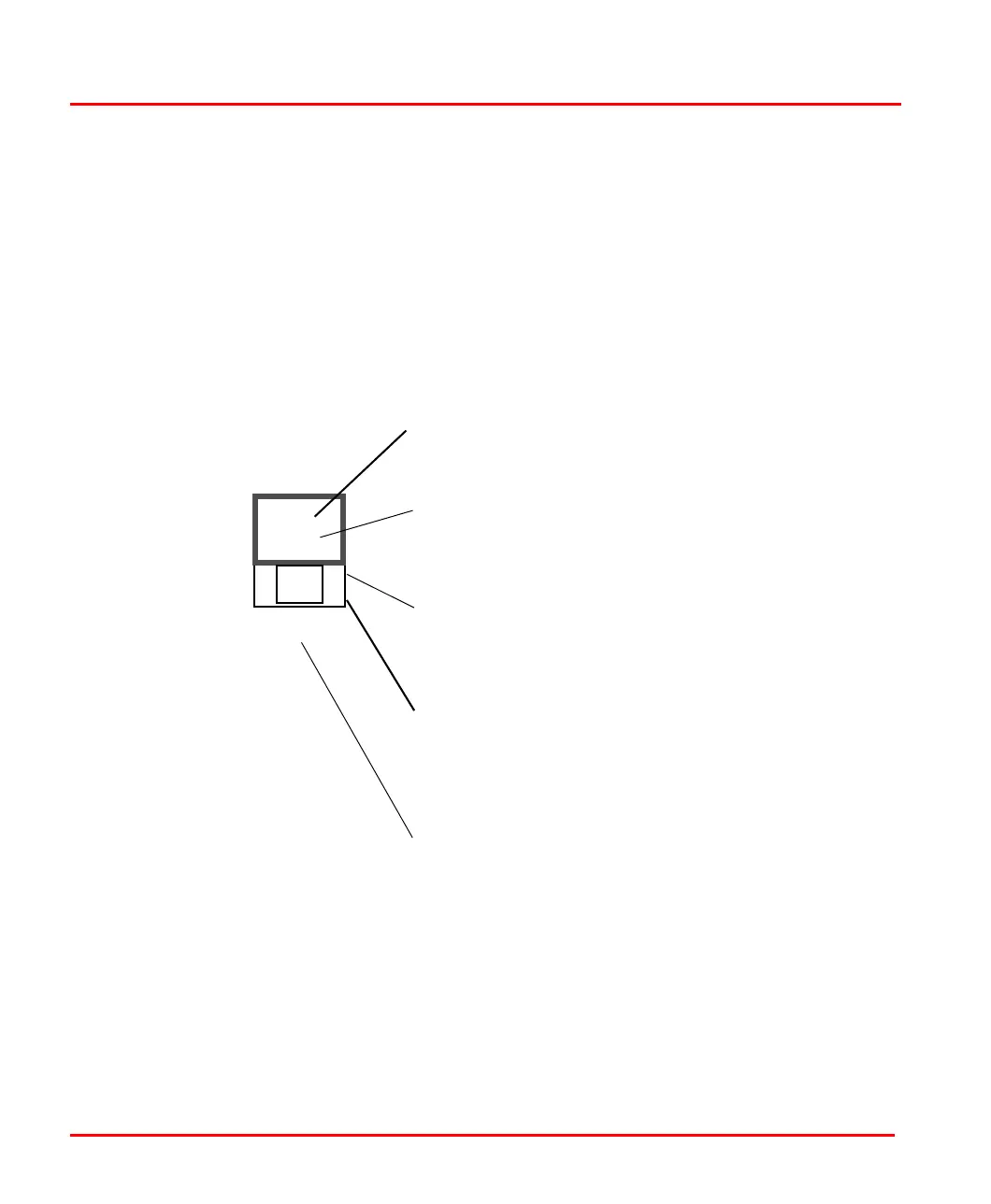

Station Item Description
Device
Number
This is the number of the PROFIBUS
Device as specified during database
configuration (0 - 125). It is also a
screen target to the device display.
Type The type can be:
DEV = PROFIBUS Device and
CTL = Controller (CI541).
Status Box This shows a letter for the status.
M = missing, F = failed, U = unknown,
R = ready and A = active.
Station Border Border color is based on the letter
shown in the status box.
M, F and U = red,
R = yellow and A = green.
Border will flash when diagnostic
messages are present.
Tem p l e t N am e
and Label
Displayed as a single line tool tip when
the cursor is over the device target. The
templet name is first and label is
second.
1
DEV
A
“PFB STW 15”, “AC9_1_L4”
