S800 I/O Displays
These S800 runtime displays relate to the Series 800 process interface as described
in the S800 I/O User’s Guides where you can find additional information about
S800 I/O.
S800 LAN Display
The S800 LAN display, Figure 66, shows the CI520/CI522 submodule status and
information about each S800 I/O Station configured under a particular LAN. Select
a display target to call up the S800 Station display.
The heading fields on the S800 LAN display are described below.

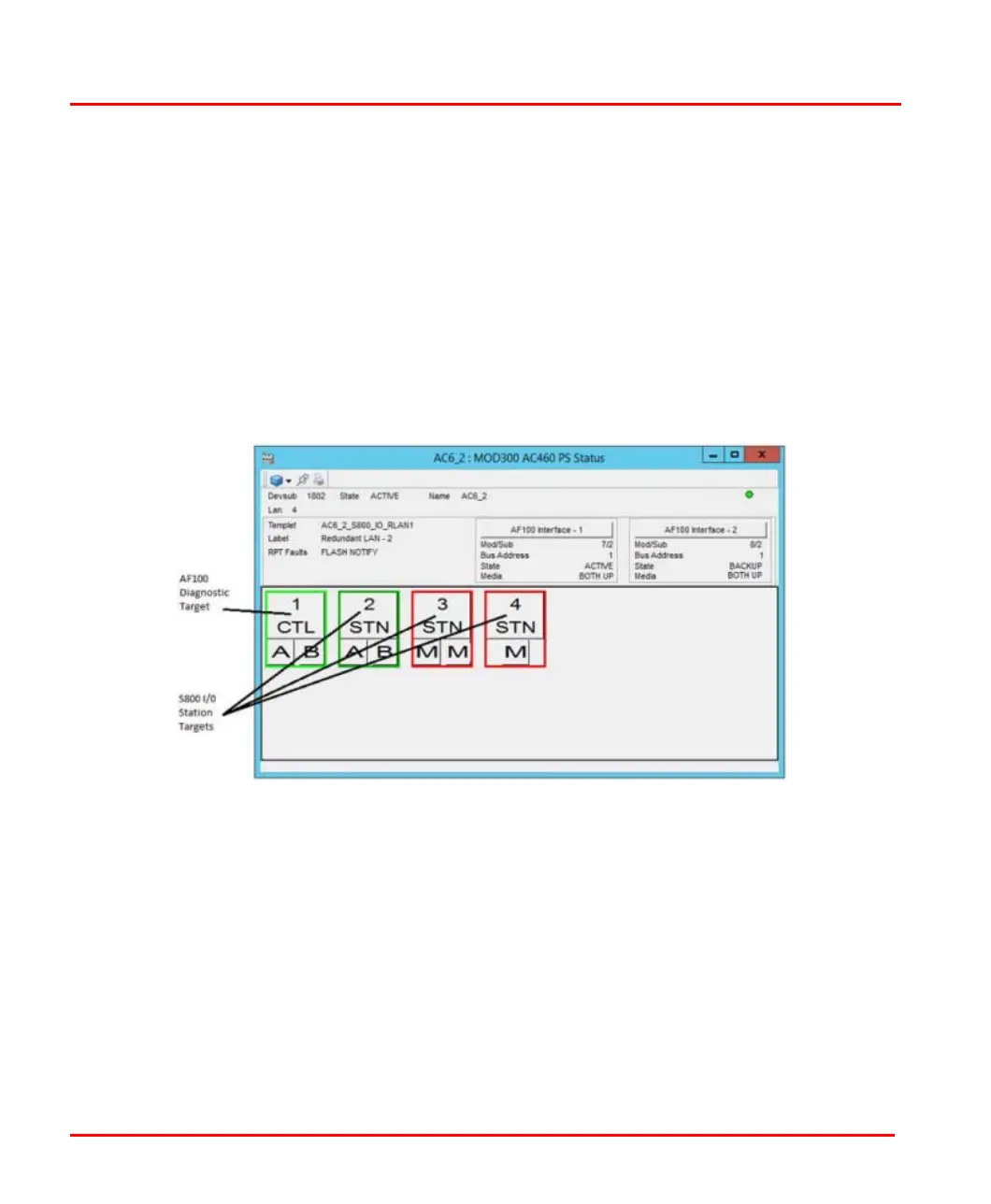

Figure 66. S800 LAN (Overview) Display
Devsub The controller DCN address where the S800 I/O is located.
State This field shows the status of the controller as ACTIVE, DOWN or
AVAIL.
Name The controller subsystem part of the logical name created during
database configuration.
To Next Page
