Module/Channel Display Section 7 I/O Displays
176 3BUR002418-600 A
Module/Channel Display
The PROFIBUS Module/Channel display is started by selecting a configured
module from the Device Display. The Module/Channel display, Figure 77, shows
information for a single module, including channel type and value, CCF or TLL tag
association, channel value, data quality and diagnostics. A module may have a
mixture of data and I/O types. Use the context menu to move up to the device or
LAN displays. From this display you can:
• Change channel output value
• Select loop CCF tag and start loop faceplate
• Select TLL point tag and start TLL faceplate
• View the module/channel diagnostics.
• Switch the display to another LAN # by returning to the AC460 display.
• Navigate to current LAN or Device through the context menu.

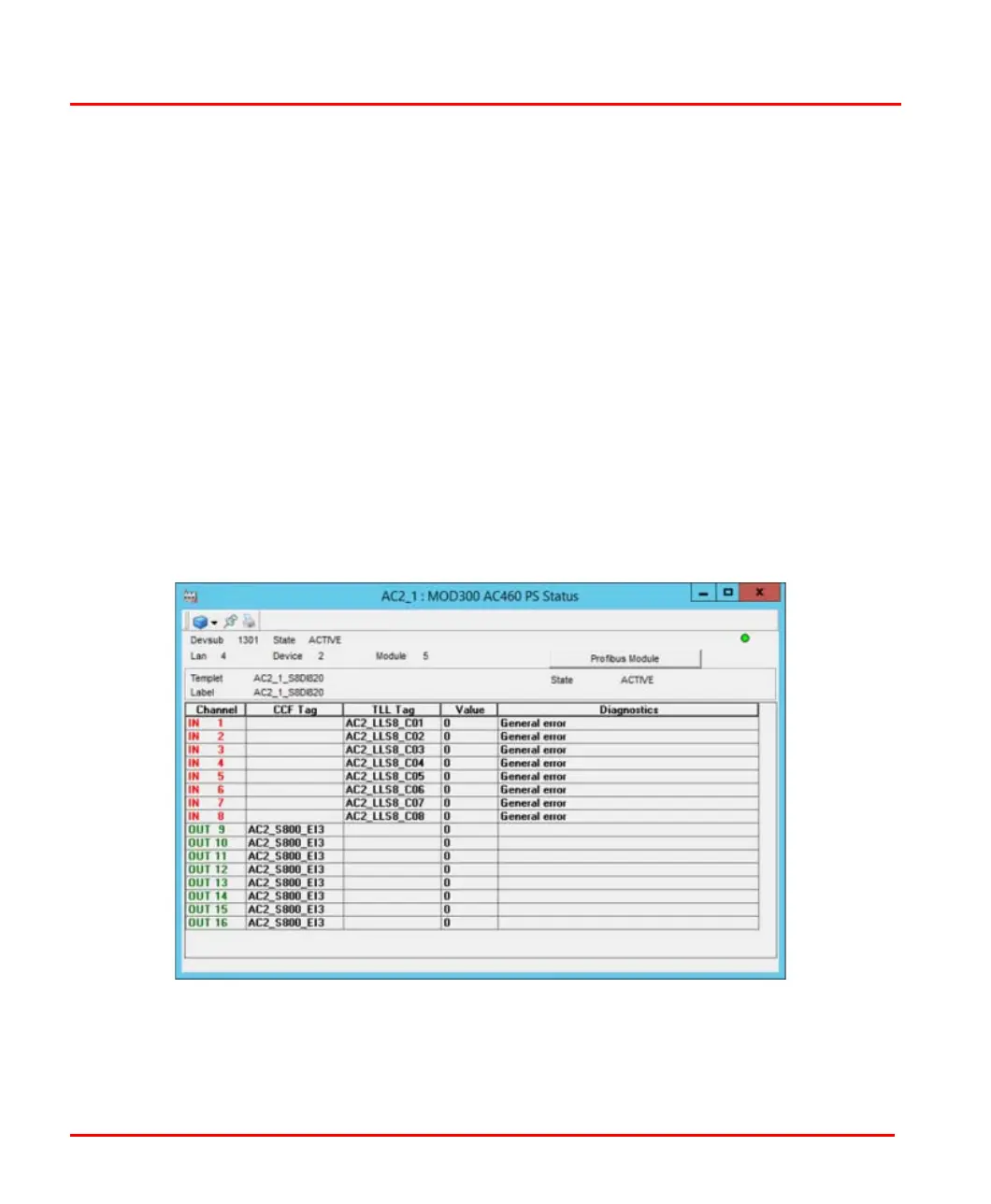

Figure 77. Module/Channel Display
