Section 5 TLL Displays I/O Point Display
3BUR002418-600 A 115
I/O Point Display
The I/O Point Display, Figure 52, contains a list of the I/O points of the node or
controller. This display is accessed by selecting a Ladder Logic object and then
selecting MOD300 TLL I/O Point from the context menu.
TLL uses digital input (contact) and output (coil) points that are local to the
controller or node. For ladder logic I/O points that use PLC functionality, only
inputs are supported.
I/O Point Faceplate
Each I/O point can have a faceplate, Figure 53. Select the I/O point (left click) to get
the faceplate or use the context menu to get the faceplate of an imported I/O point.
For S100 I/O points, the faceplate shows the Channel, Lan and Block number. For

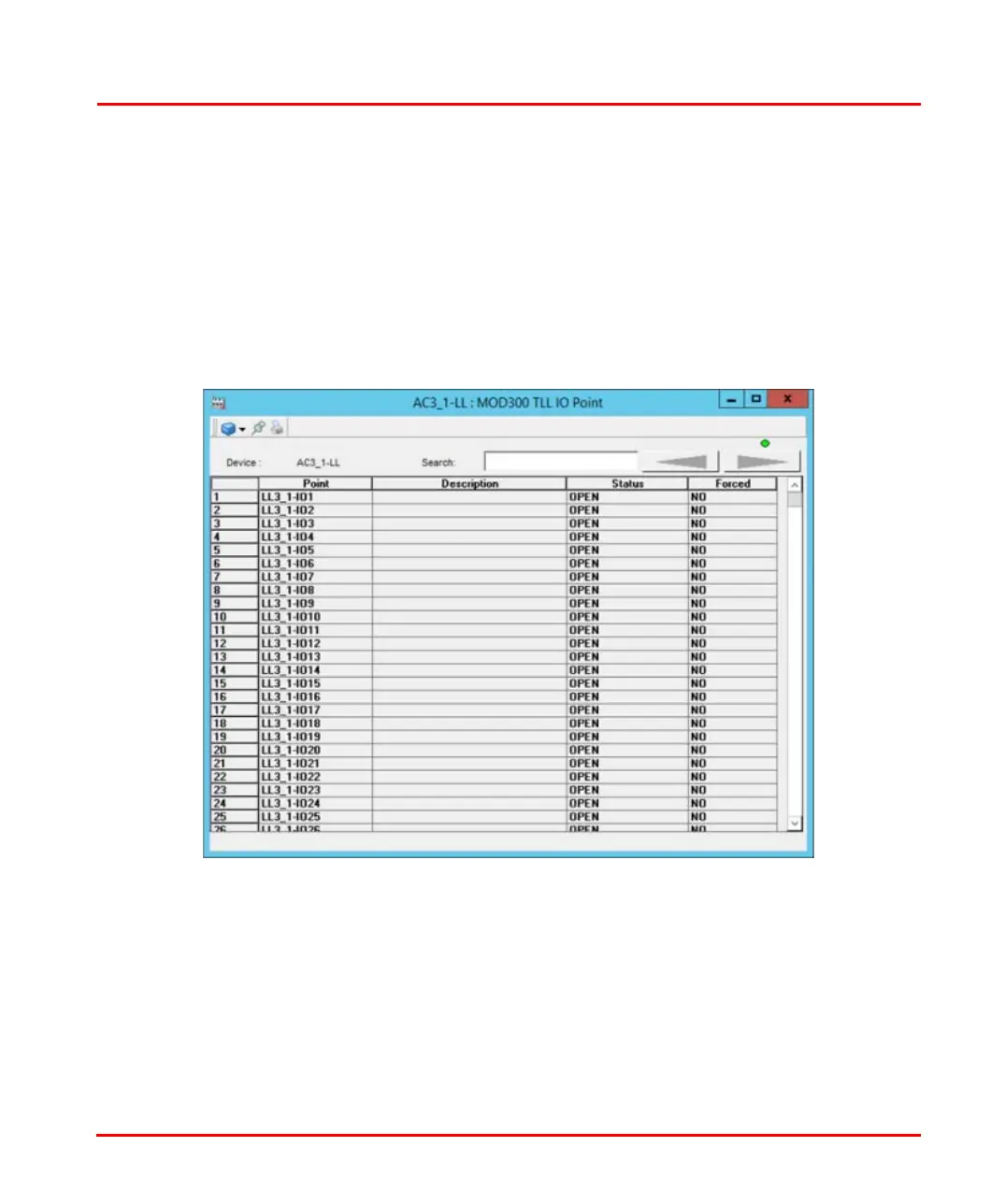

Figure 52. TLL I/O Point Display
