Area Graphic Display Section 3 CCF Displays
72 3BUR002418-600 A
The filters defined in the event group narrow the scope of events seen by the page.
The page can provide further filtering of the events but cannot expand beyond the
filter of the event group.
When the Area Alarm display is first called up, the primary filter is applied and then
the filtered list of tags assigned to the area is applied.
Area Graphic Display

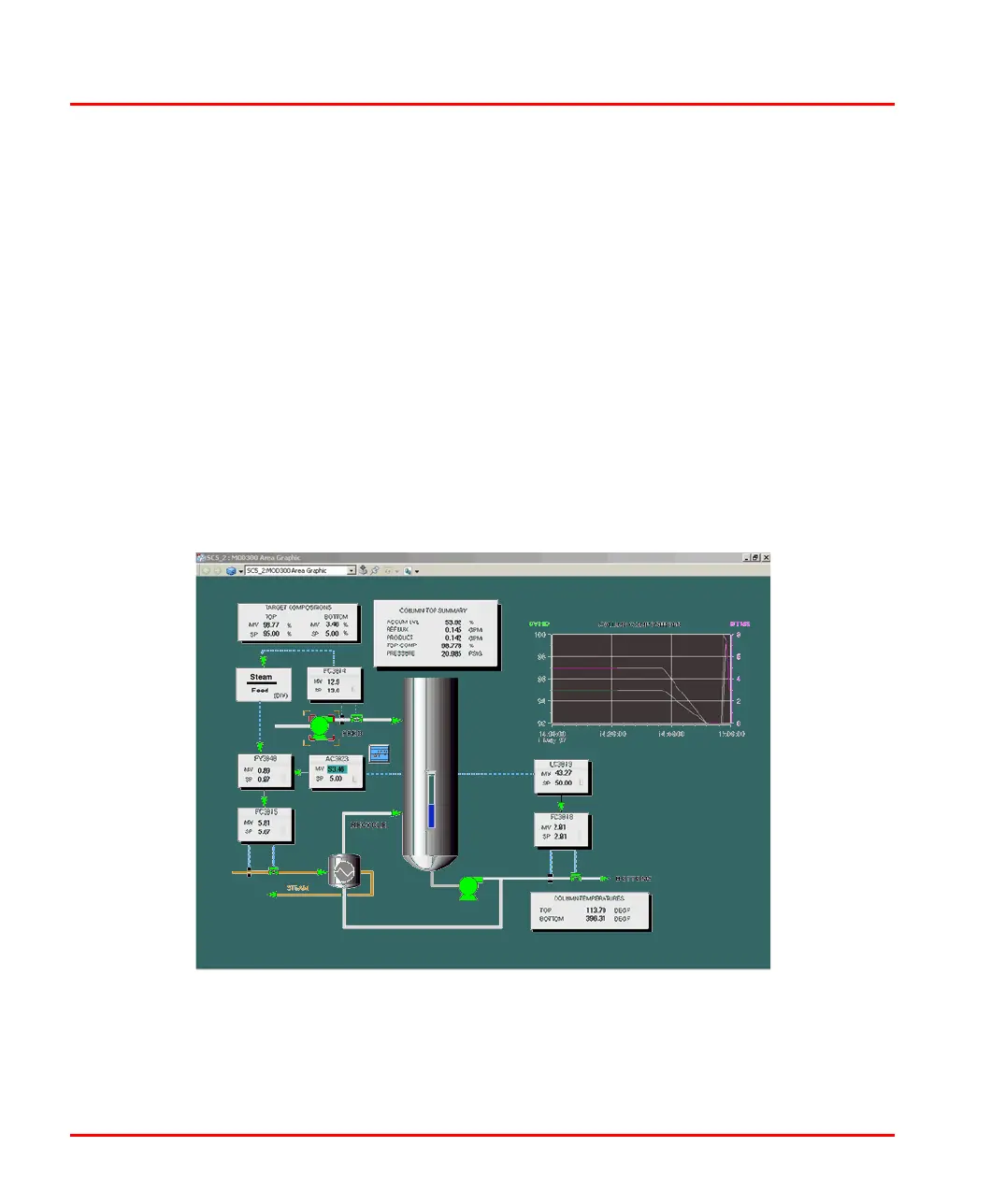

The Area Graphic Display, Figure 29, provides a custom graphical depiction of a
given area. Any tag in the area may be represented by one or more graphic symbols
on the graphic display. The symbols may be static or dynamic (changing to show
dynamic changes in the process). The graphic symbols and their dynamics are
defined during display building. The Area Graphic Display does not have a standard
format. These displays are custom designed to meet the process monitoring and
control requirements of a specific application.
Figure 29. Area Graphic Display
