Timer Display Section 5 TLL Displays
112 3BUR002418-600 A
Timer Display
The Timer Display, Figure 50, contains a list of the timers in the device. This
display is accessed by selecting a Ladder Logic object and then selecting MOD300
TLL Timer from the context menu.
TLL timers can time with a configurable time base that can be either 1.0, 0.1, or
0.01 seconds (displayed on faceplate). The timers are under program control and
can be started, stopped and reset by program instructions. They can time to values as
large as 999 hours. A timer is configured to time up or down.

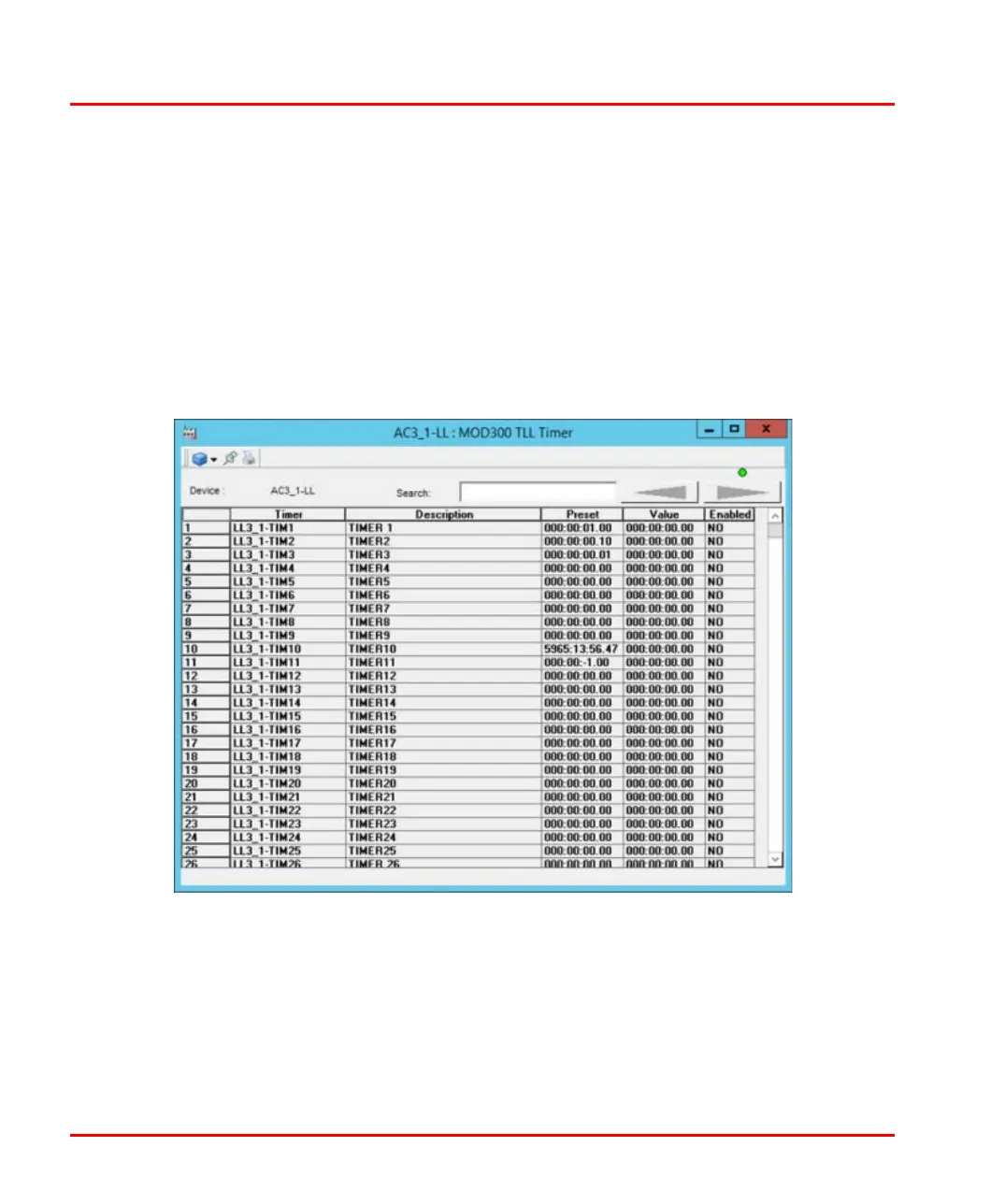

Figure 50. TLL Timer Display
