AC410 Subsystem Status Display
The AC410 Subsystem Status Display, Figure 59, provides: node address and name;
DCN status; PM150 Controller address, name and status; and TRIO and S100
submodule status and logical LAN numbers. See the AC460 for a description of the
TRIO Interface, S100 I/O Interface, S800 I/O Interface, MVI interface and DCN
interface.

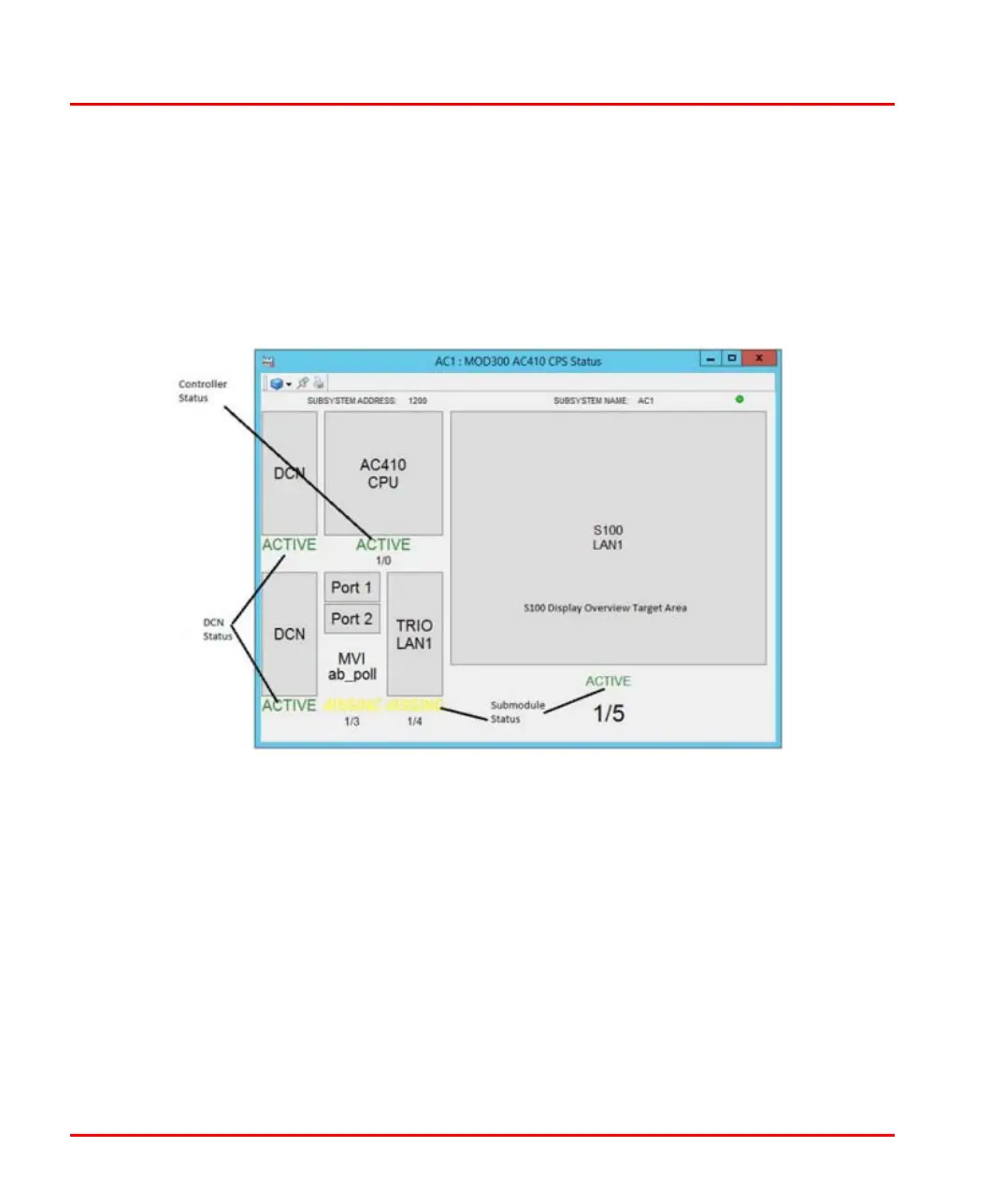

Figure 59. AC410 Subsystem Status Display (Compact Station)
