Section 4 TCL Displays Sequence Debug Display
3BUR002418-600 A 91
Sequence Debug Display
The Sequence Debug Display, Figure 38, supports runtime troubleshooting and
debugging of sequences. The troubleshooting and debug functions on this display
are trace and breakpoint. Control functions supported by the sequence debug display
are: sequence state, mode, and status changes.
Sequence Debug Display Format
The Unit ID, Sequence, Time Stamp, Current Statement number, Follow current
St#, and the sequence State, Mode, Priority level and Status are shown at the top of

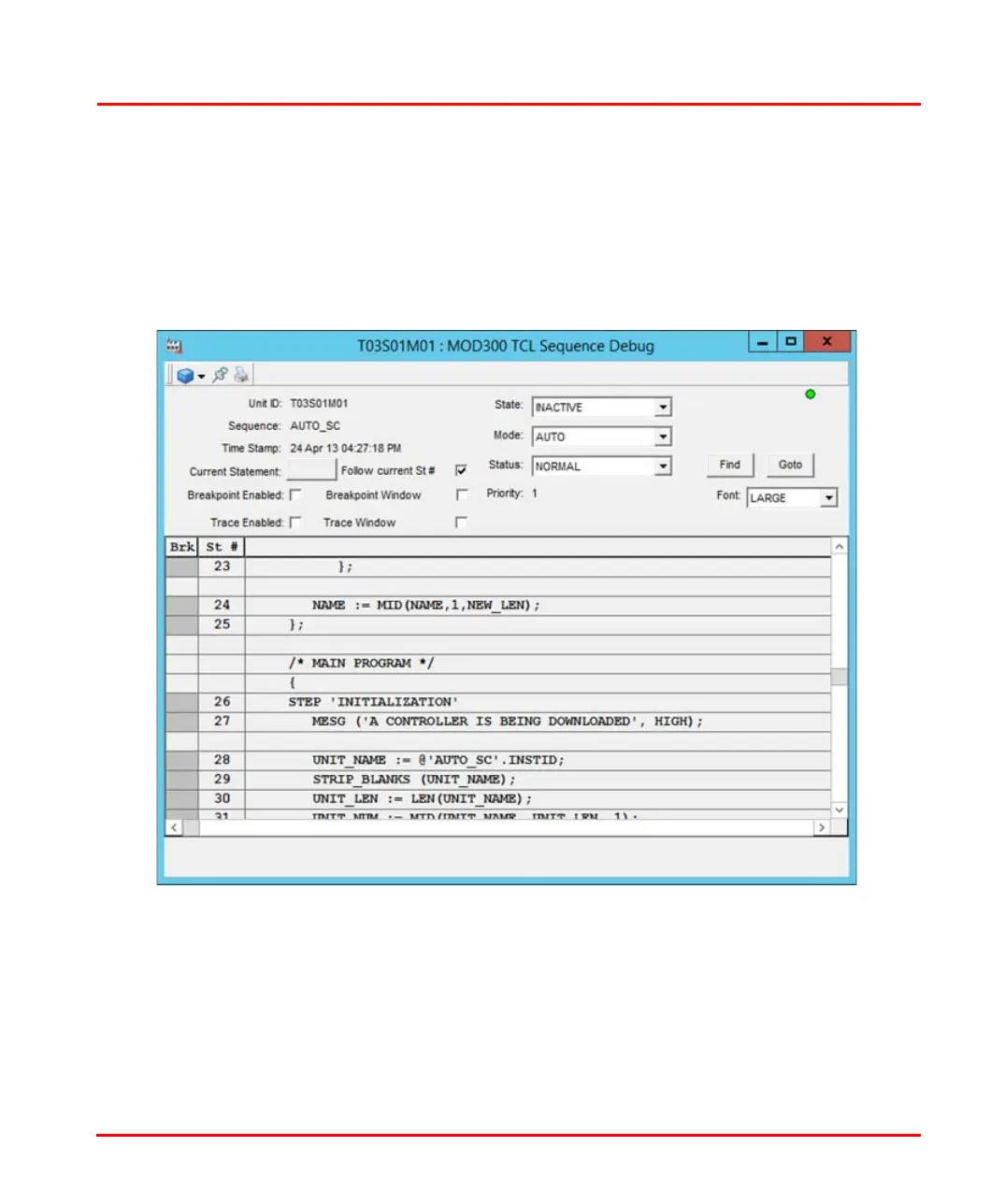

Figure 38. Sequence Debug Display
