Recipe Detail
The Recipe Detail Display, Figure 41, shows the recipe items and accompanying
data values for the recipe residing on the unit. Runtime changes to recipe parameters
are made via this display.
Recipe Detail Display Format
The unit ID, unit description, recipe ID, and batch ID are shown at the top of the
display. The main portion of the display shows the values for each recipe parameter
(referred to as recipe item). The display provides the following for each recipe item:
ID, description, current value, high and low limits, and engineering units.

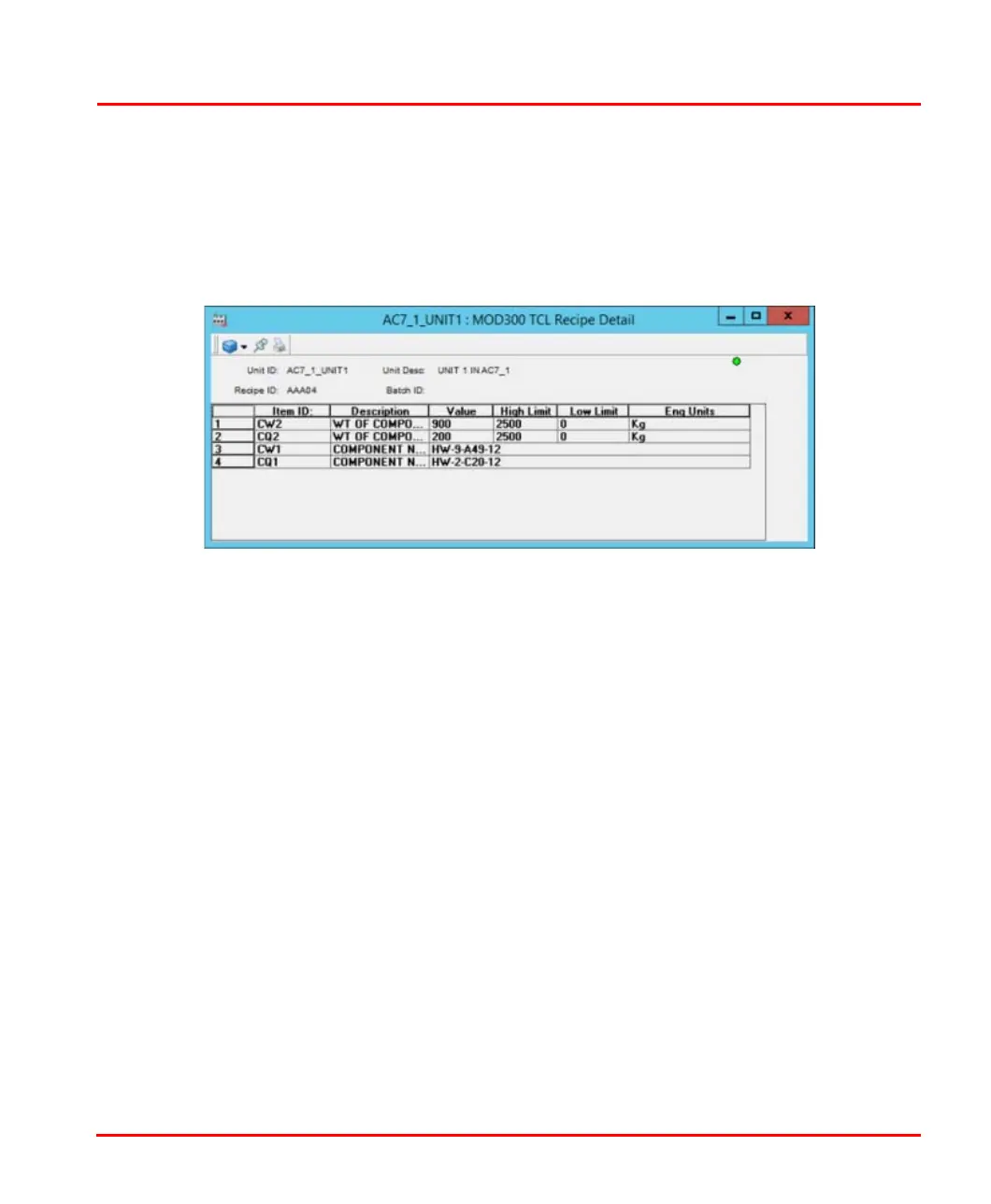

Figure 41. Recipe Detail Display
