Operating Procedures for CCF Displays Section 3 CCF Displays
46 3BUR002418-600 A
accessible using the LOOP TMPL and FCM TMPL buttons or by double clicking
on the FCM.
Operating Procedures for CCF Displays
This section provides information on the following topics:
• Viewing Trend Data.
• Taking Control of a Loop.
• Changing Control Parameters.

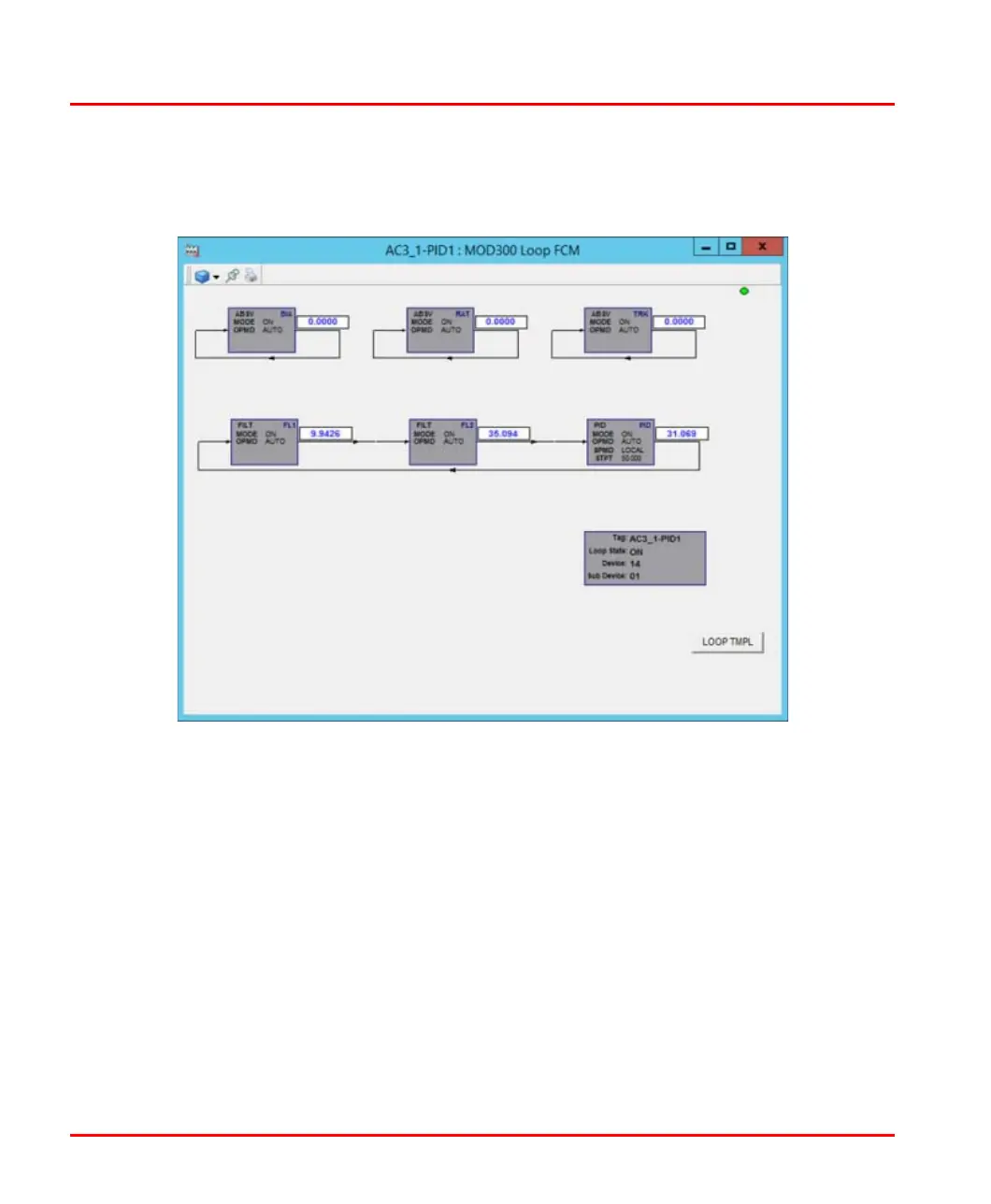

Figure 13. Loop FCM Display
