PROFIBUS LAN Display Section 7 I/O Displays
168 3BUR002418-600 A
PROFIBUS LAN Display
The PROFIBUS LAN display, Figure 73, shows the CI541 submodule status (CTL)
and information about each device (DEV) configured under a particular LAN. From
this display you can:
• Select a device display target (DEV) to call up the PR
OFIBUS Device display.
• Scroll display as necessary to view all devices (up to 126).
• View the CI541 (CTL) status and its Diagnostic Display.
• Switch the display to another LAN # by returning to the AC460 display.

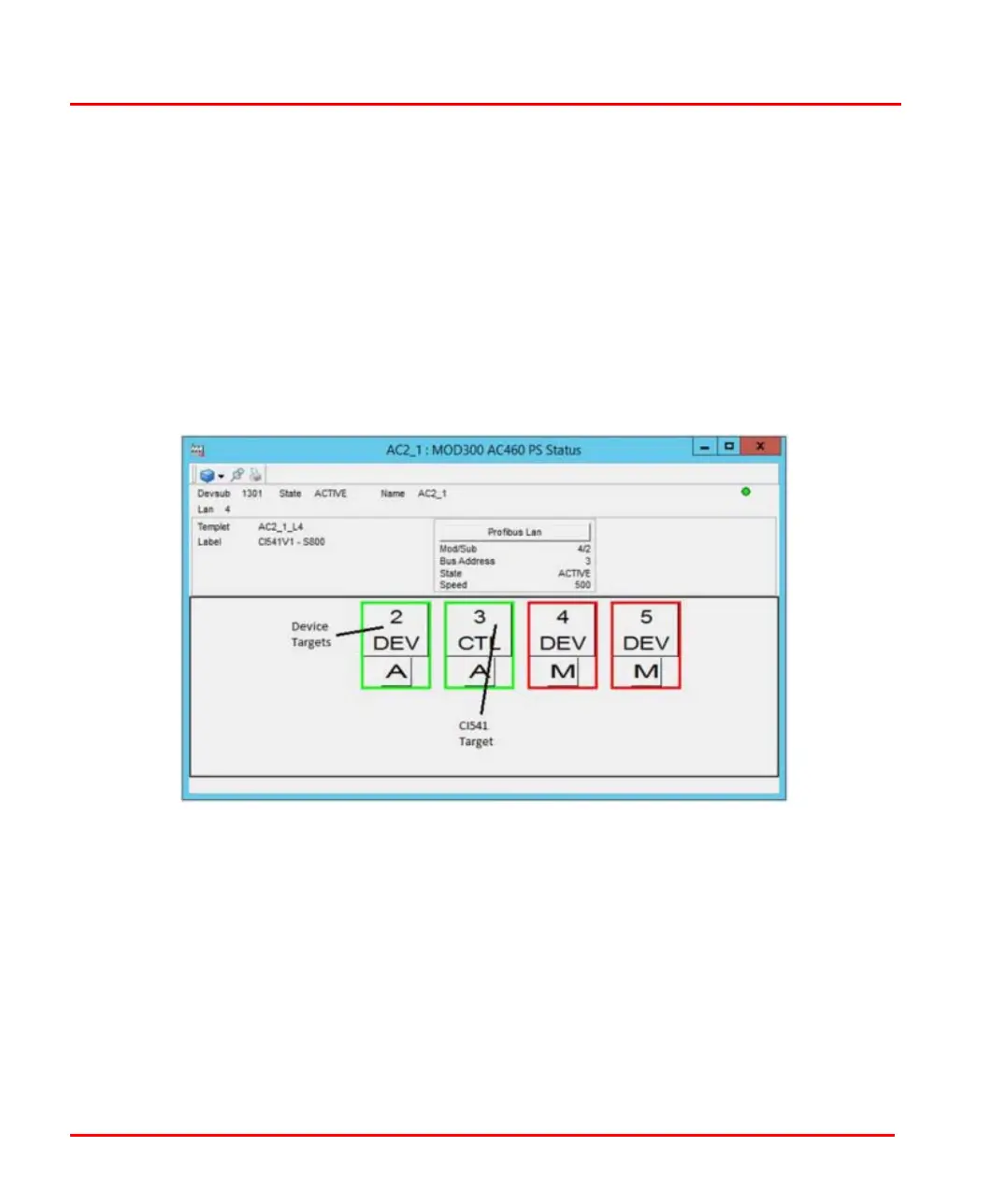

Figure 73. PROFIBUS LAN (Overview) Display
PROFIBUS LAN Header Area
The heading fields on the PROFIBUS LAN display are described below.
Devsub The controller DCN address where the PROFIBUS I/O is located.
State This field shows the status of the controller as ACTIVE or DOWN.
