TRIO LAN Display Section 7 I/O Displays
180 3BUR002418-600 A
TRIO LAN Display
The TRIO LAN Display, Figure 78 for AC Controller and Figure 79 for SC
Controller, show the status of the TRIO Field Bus and its attached blocks.
From this display you can:
• Activate, Deactivate, Restart or Switch Bus Redundanc
y (AC Controller)
• Establish, Terminate, or Switch Bus (SC Controller)
• Enable, Disable or Clear All Diagnostics
• Activate all blocks

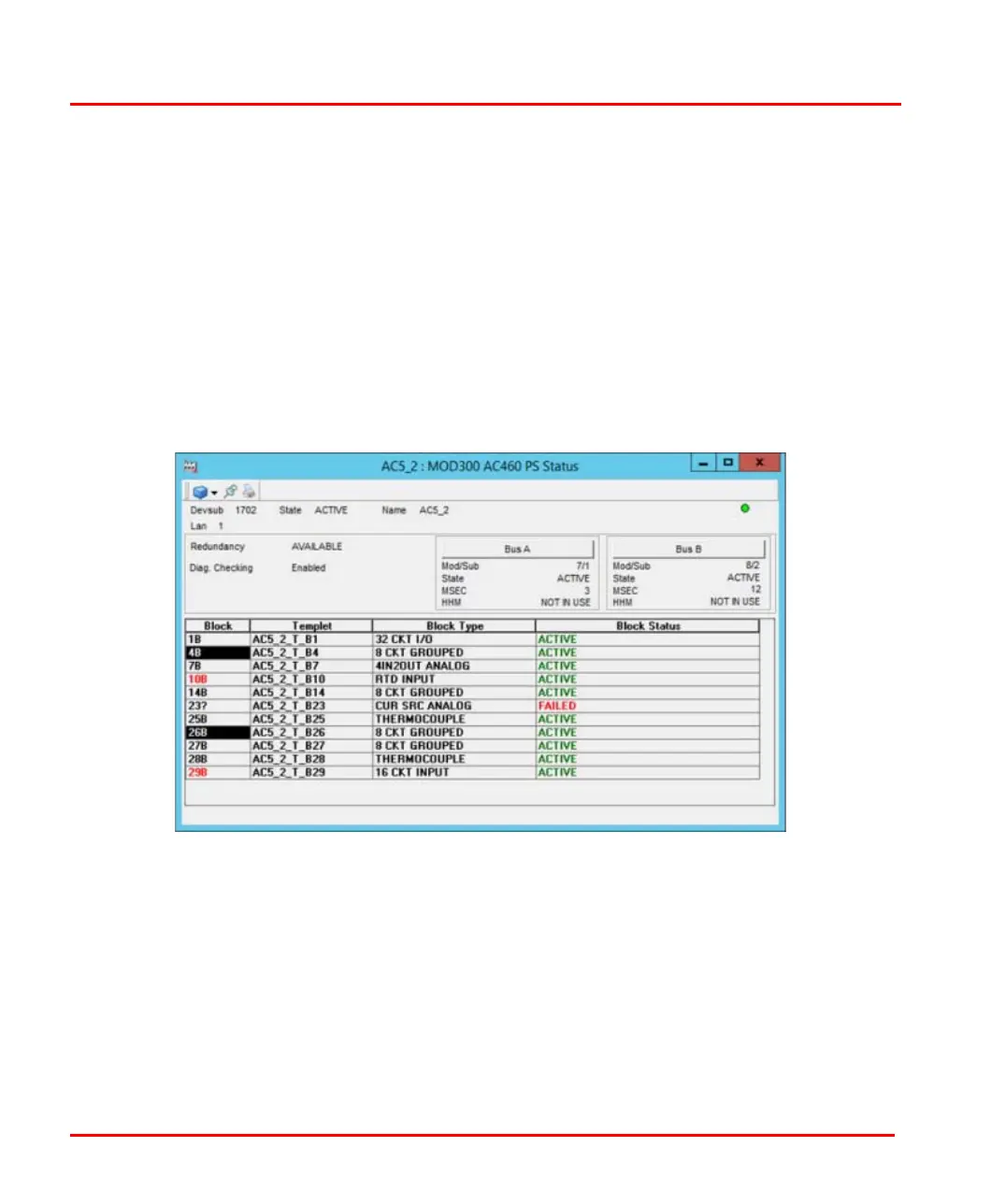

Figure 78. TRIO LAN Display (AC)
