Single Loop Automatic Operation with Remote Setpoint
When a control loop is configured for single loop operation with remote setpoint,
the faceplate displays and control operations resembles the example shown in
Figure 83.
Control loop is in automatic mode.
Remote setpoint is being used.
[Sp] indicates the current setpoint value. Remote setpoint
cannot be changed locally.
[Out] indicates the current output value. Output value
cannot be changed in automatic.
Use the local button to switch back to Local
from remote [REM]. Setpoint can be changed
when in local.
Use the manual button to switch from
automatic to manual. Output can be changed in
manual.

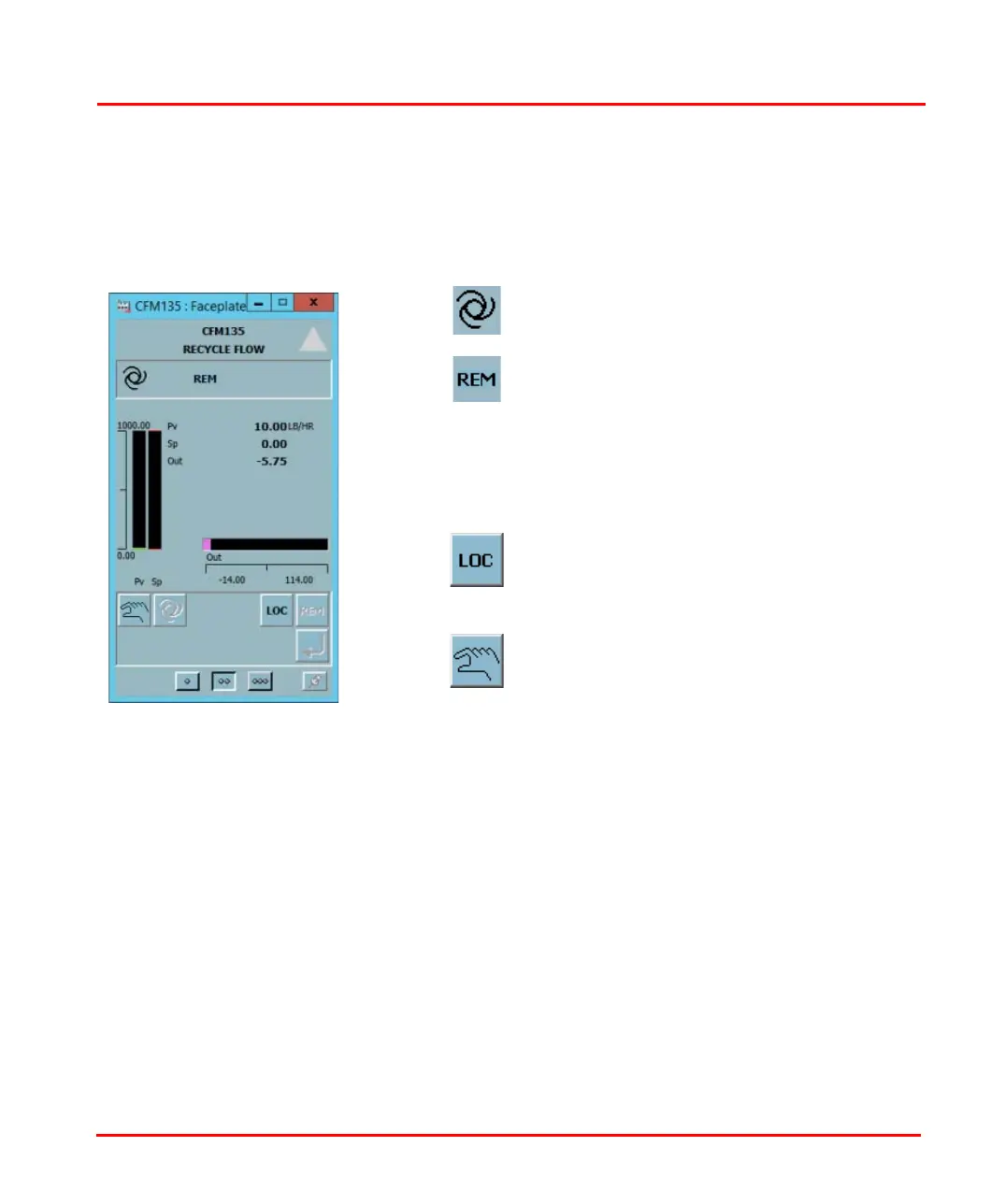

Figure 83. SC5_1-PID2: Faceplate
