• A period indicates seconds.
Examples:
6. 6 seconds
.5 .5 seconds
Timer Faceplate
Each timer can have a faceplate, Figure 51. Select the timer (left click) to get the
faceplate or use the context menu to get the faceplate of an imported timer. The
timer can be enabled (YES) or disabled (NO) from the faceplate.

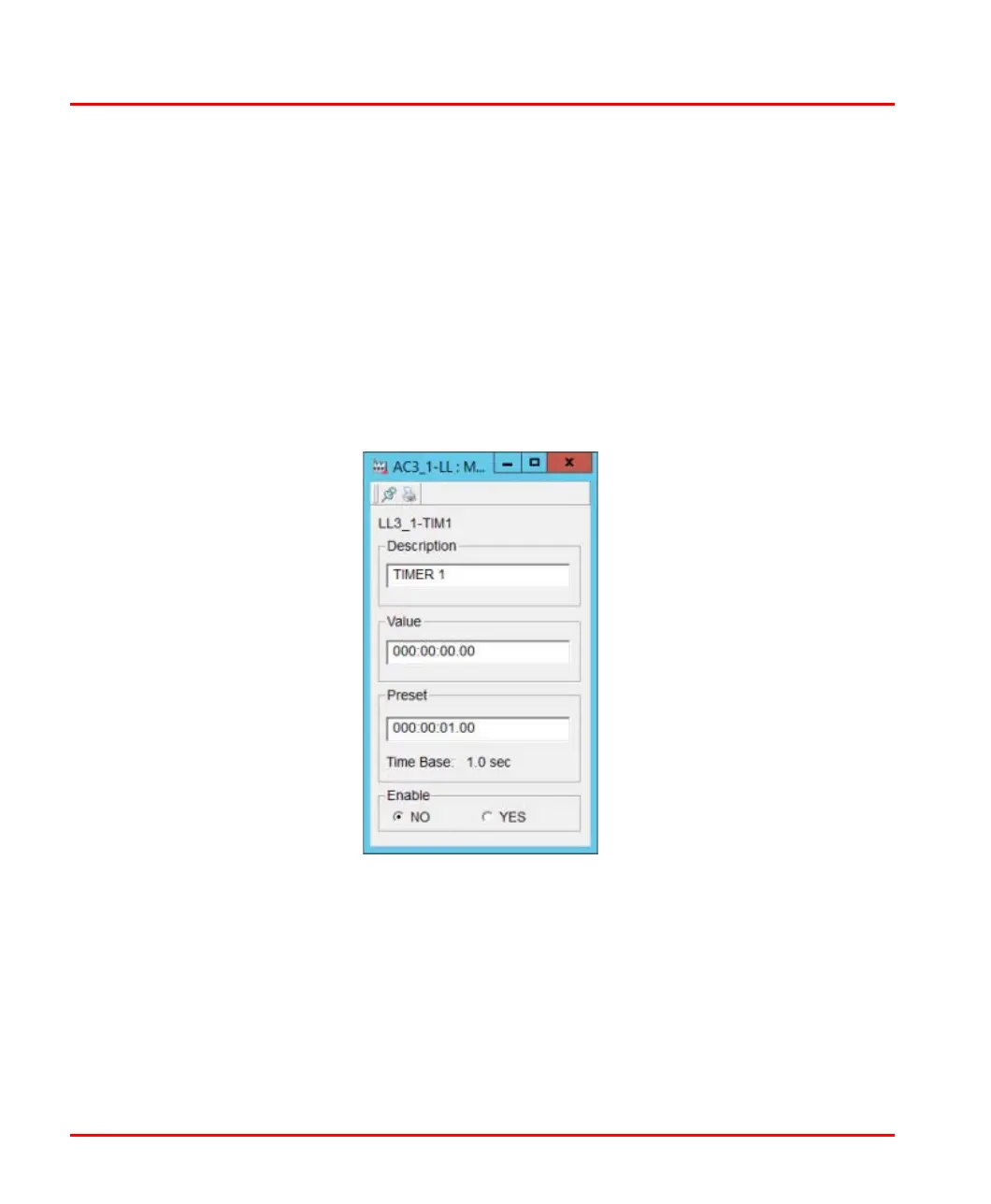

Figure 51. TLL Timer Faceplate
