Section 3 CCF Displays Tool Tips
3BUR002418-600 A 45
Tool Tips
Tool tips are activated when the cursor is over a tag, description, buttons or an
editable field. The tool tip appears as descriptive text on the display.
Loop FCM Display
The Loop FCM Display, Figure 13, shows the relationships between the functional
class modules (FCMs) that make up the loop. Each FCM in the loop is represented
by a block on the display.
Both the block type and the name given to the FCM at configuration time appear in
the block. Each block contains status information for the FCM.
When a FCM block is selected, the basic control fields become available on the
lower part of the display. Use these fields to make mode changes and tune setpoint
and output. Runtime versions of the Loop Definition and FCM templets are
Ramp Setpoint is being ramped by a TCL source.
Abnormal State An abnormal condition for a CCF loop is
checked when the ABNORMAL STATE Field
on page 219 is set to yes.
Alarm Active
Unacknowledged
Alarm active and unacknowledged. Select
button to acknowledge alarm on CCF or
Device faceplates.
Alarm Active
Acknowledged
Alarm is acknowledged and is still active.
Button will disappear when alarm returns to
normal.
Alarm Returned
to Normal
Unacknowledged
Alarm is unacknowledged and has returned to
normal. Select button to acknowledge alarm.

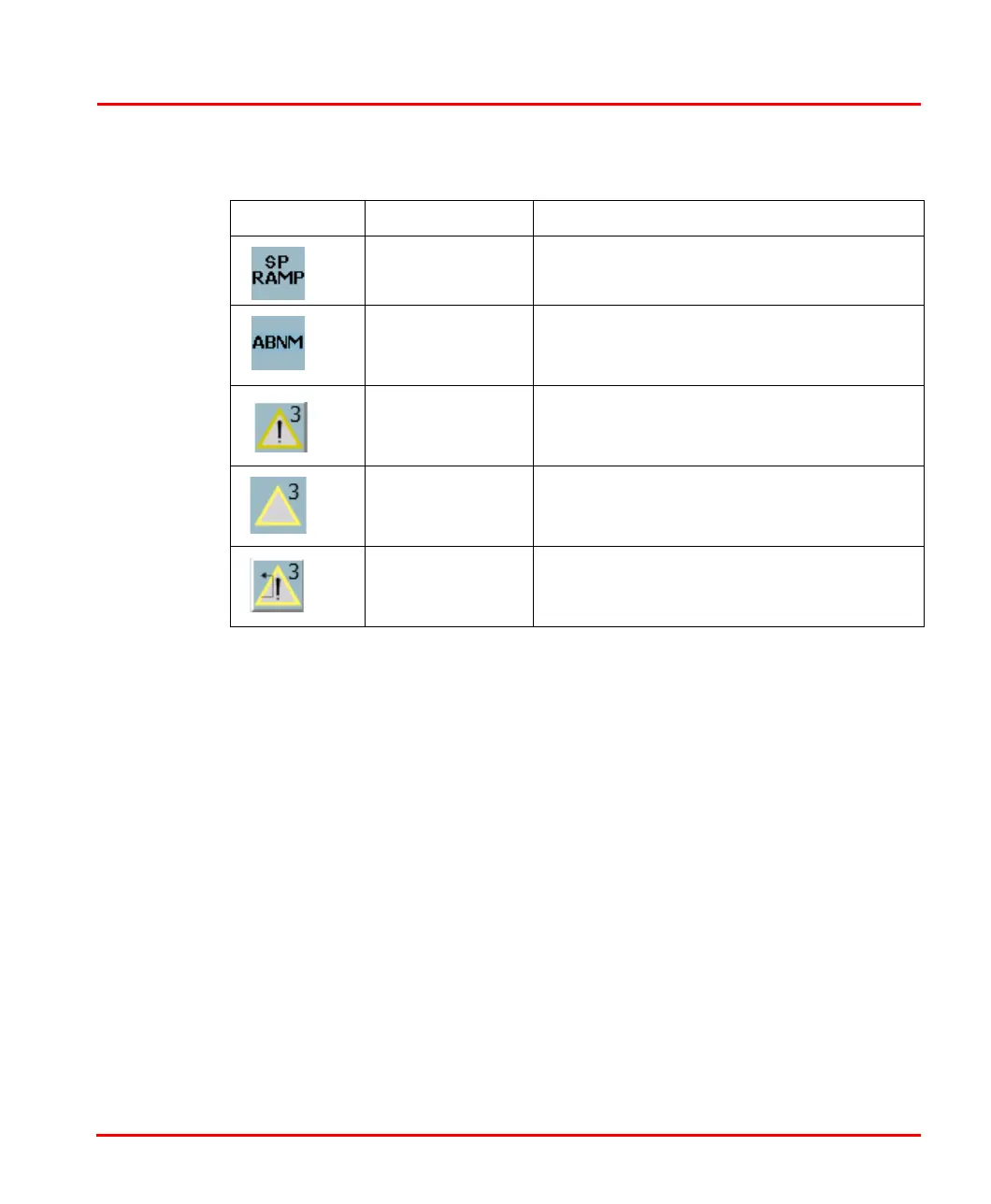

Table 3. Buttons and Indicators (Continued)
Icon Name Description
To Next Page
