Section 7 I/O Displays Module/Channel Display
3BUR002418-600 A 177

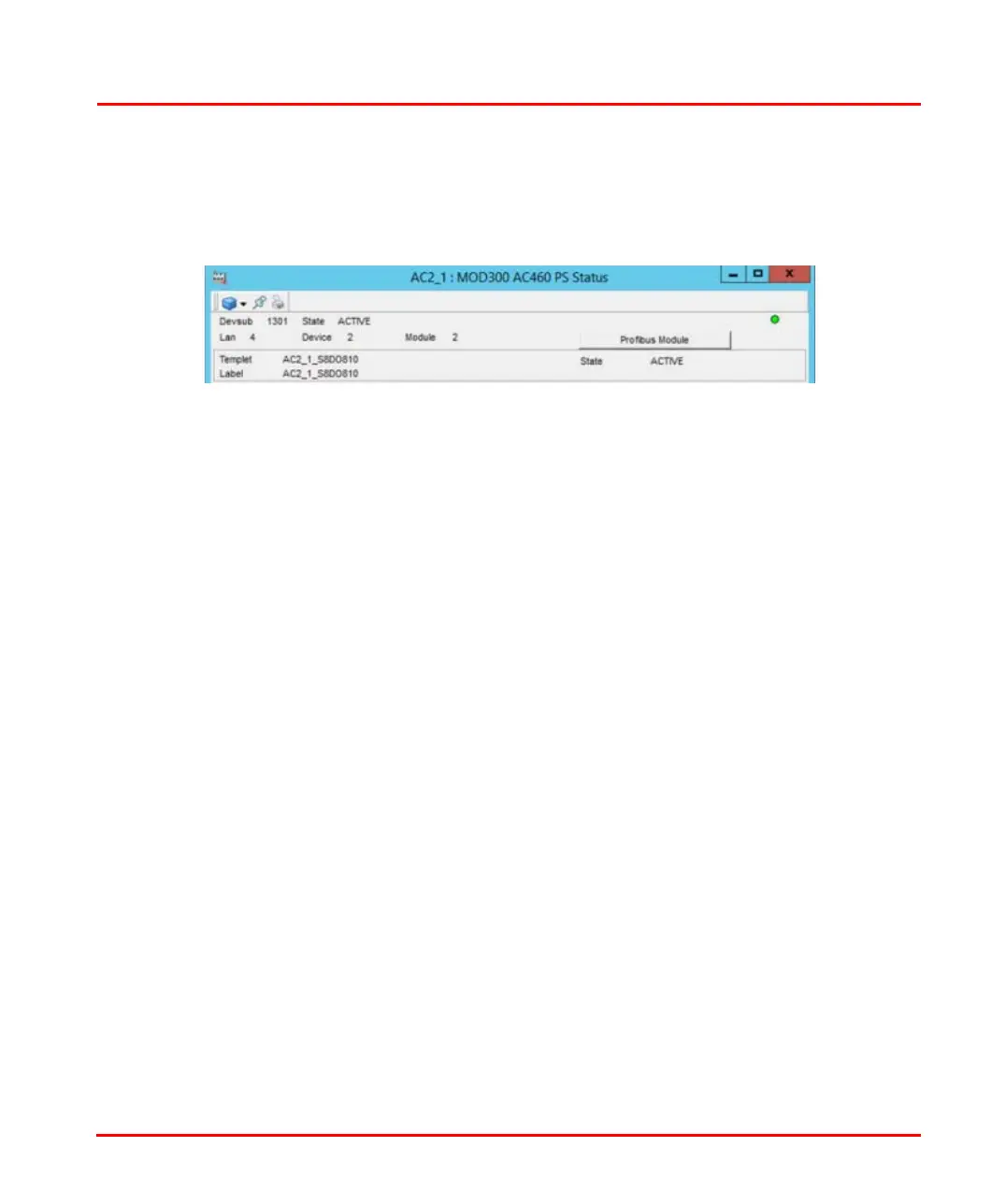

PROFIBUS Module/Channel Header Area
Module Address Info Description
Devsub The controller DCN address where the device is located.
State This field shows the status of the controller as ACTIVE
or
DOWN.
Lan This field represents the number of the Local Area
Ne
twork (LAN) for the AC 460 device shown (can be 1 to
4). Go back to the controller display to select a different
LAN.
Device This field represents the device number.
Go back to the LAN display to select a different device.
Module This field represents the module number.
Go back to the device display to select a different
mo
dule.
Templet The logical device name created during database
configur
ation is given in this field.
Label Descriptive label associated with templet.
State (Module) This field shows the status of the module.
ACTIVE indicates the module is OK.
FAILED means the module has stopped.
MISSING means there is no module installed.
At the top of the display there is a section related to the addressing of the I/O
module as described below.
