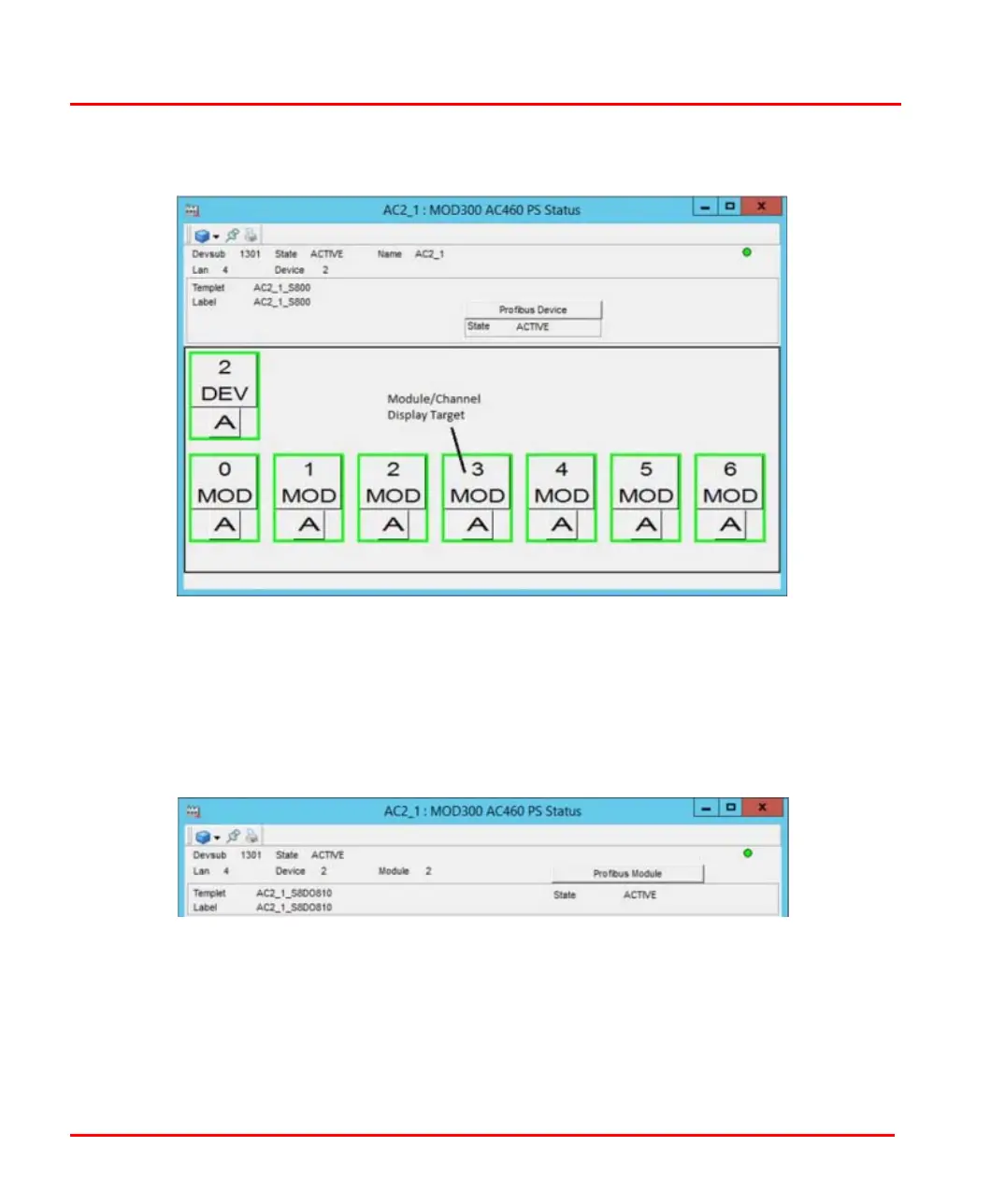

Figure 75. PROFIBUS Device Display
PROFIBUS Device Display Section 7 I/O Displays
172 3BUR002418-600 A
PROFIBUS Device Header Area
The top of the PROFIBUS Device display identifies the device, the associated
AC460 controller and has other information as described below.
Devsub The controller DCN address where the device is located.
State This field shows the status of the controller as ACTIVE or DOWN.
