Section 6 Status Displays Turbo/Console Node Subsystem Status Display
3BUR002418-600 A 139
Refer to your Subsystem Status and Diagnostics user manual for descriptions of the
codes and their meanings.
DIAGNOSTICS
The status of power up diagnostics for each module in the subsystem is reported in
this field. A description and the I/0 address of each module found in the subsystem
is provided. Refer to your Subsystem Status and Diagnostics user manual for a list
of the possible I/0 module base addresses.
When the System Integrity Module (SIM) is missing or not active, the message
NOT AVAILABLE is displayed in the SIM and SIM ERROR LOG areas.
When the subsystem includes remote I/O, Figure 62, then Remote I/O rows show
the LAN number. This number is the one configured in the node not in the database.
Subsystem Status Display Operation
Buttons available and the actions performed by each include:

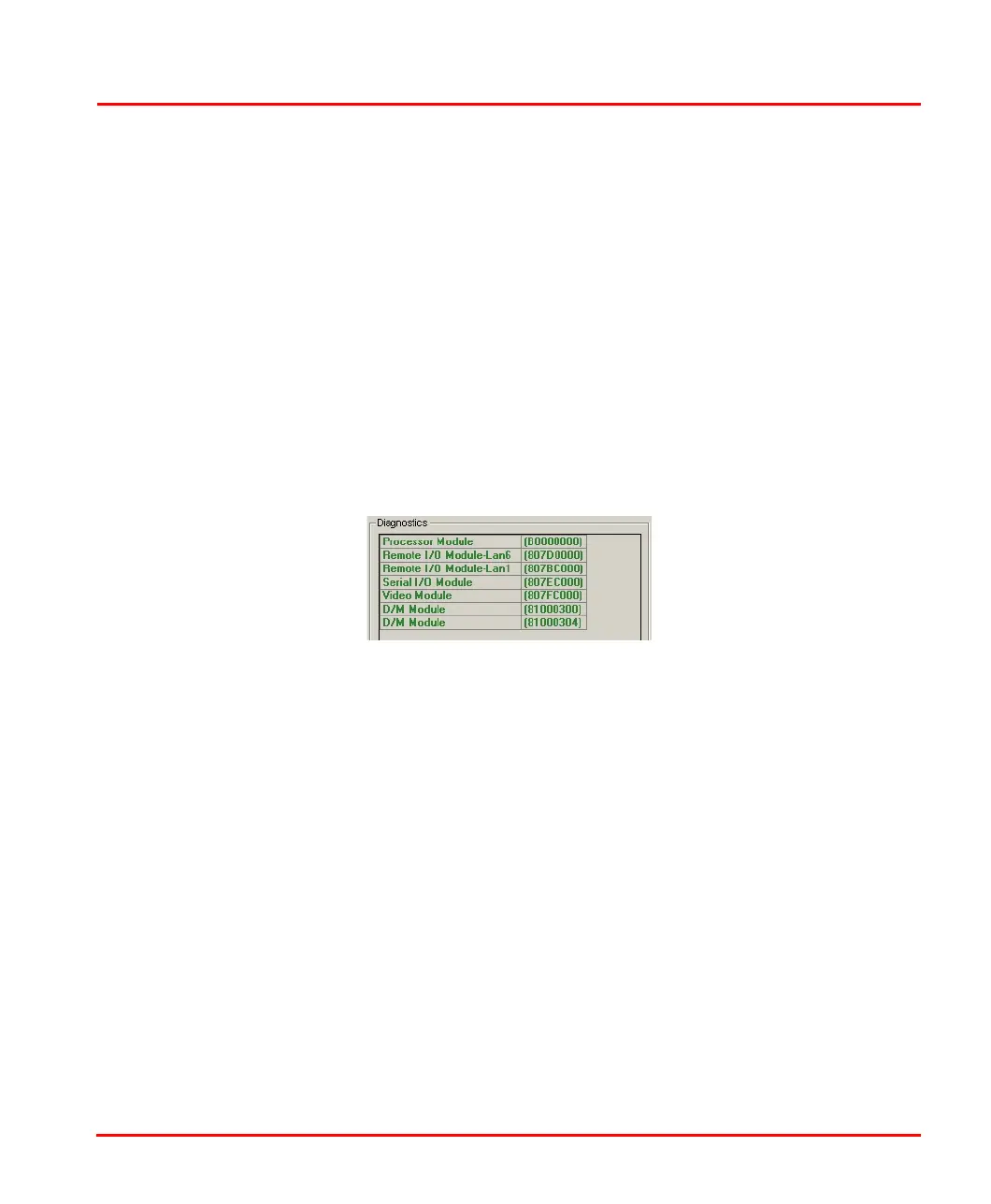

Figure 62. Turbo Node Subsystem Status Diagnostic Area with TRIO
ANNUNCIATOR Toggles the SIM Annunciator state ON or OFF.
CONTACT OUTPUT Toggles the SIM Contact Output state SET or RESET.
ERASE SIM Clears current error memory locations 01 through C8 on
the SIM.
